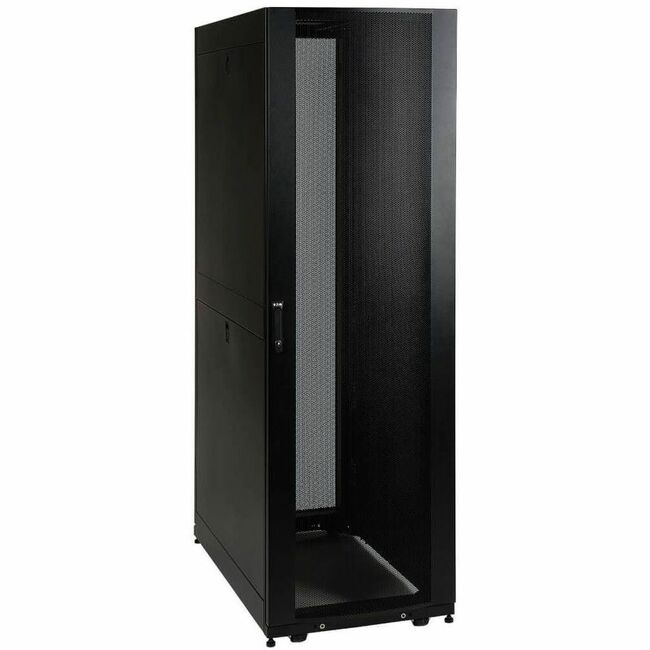

Tripp Lite 45U Rack Enclosure 36" Depth w Doors & Sides 3000lb Capacity

Tripp Lite 45U Rack Enclosure 36" Depth w Doors & Sides 3000lb Capacity - 45U Rack Height x 19" Rack Width - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
$1,745.80Retail $2,414.88
  • 45U SmartRack enclosure with doors and side panels
  • 36" (927mm) depth (with mounting depth increments from 4 to 31") and standard 24" (600mm) width
  • 4 interior vertical posts with unthreaded square hole openings
  • Ships fully assembled
  • Massive front to rear ventilation capacity
  • 3000 lb stationary / 2250 lb rolling load capacity
  • Locking, removable, reversible front and rear doors
  • Locking, removable side panels keyed alike with doors
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
127432
Item:
SR45UBMD
UPC Code:
037332174475
Our Part #
QZ8451
Condition
New
$1,745.80EA
$2,414.88
Availability Only 7 Left In Stock
Great Deals Everyday

You may be also interested

Product description

Tripp Lite 45U Rack Enclosure 36" Depth w Doors & Sides 3000lb Capacity - 45U Rack Height x 19" Rack Width - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
45U Rack Height x 19" Rack Width - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity

Specifications

Dynamic/Rolling Weight Capacity
2250 lb
Rack Width
19"
Static/Stationary Weight Capacity
3000 lb
Units Per Pallet
1
UPC Alternates
037332174475
Additional Information
  • EIA-310-E Certification
  • UL60950 Approval
  • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements
  • 4 Interior vertical posts with unthreaded square hole openings
  • Pre-installed casters and leveling feet
  • Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements
  • Maximum usable internal depth of 31 inches/78.75 cm (front to rear rail)
  • Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles
  • Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable
  • Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires
  • Open bottom for cable access
  • Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first
Brand Name
Tripp Lite
Country of origin
China
Depth
36"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
83.8"
Limited Warranty
5 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
SR45UBMD
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The SR45UBMD is part of our new line of mid-depth rack enclosures. It features a massive front-to rear-ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations. The SR45UBMD houses 3000 lb of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 31 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. With its locking reversible removable front and rear doors and locking removable side panels the SR45UBMD provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBMD meets all requirements toward PCI DSS compliance. The top panel of the SR45UBMD is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access the SR45UBMD is open-bottom.
Package Contents
  • 45U Mid-Depth SmartRack Premium Enclosure (Includes Doors and Side Panels)
  • 4 x Side Panels
  • 4 x Side Panel Locks
  • 2 x Door and Side Panel Keys
  • 50 x M6 Screws
  • 50 x M6 Washers
  • 50 x M6 Cage Nuts
  • Owner's Manual
  • Mounting Hardware
  • Stabilizing Bracket
Product color
Black
Product Line
SmartRack
Product Name
45U Mid-Depth SmartRack Premium Enclosure (Includes Doors and Side Panels)
Product Type
Rack Cabinet
Rack Height
45U
Weight (Approximate)
284.40 lb
Width
23.6"
