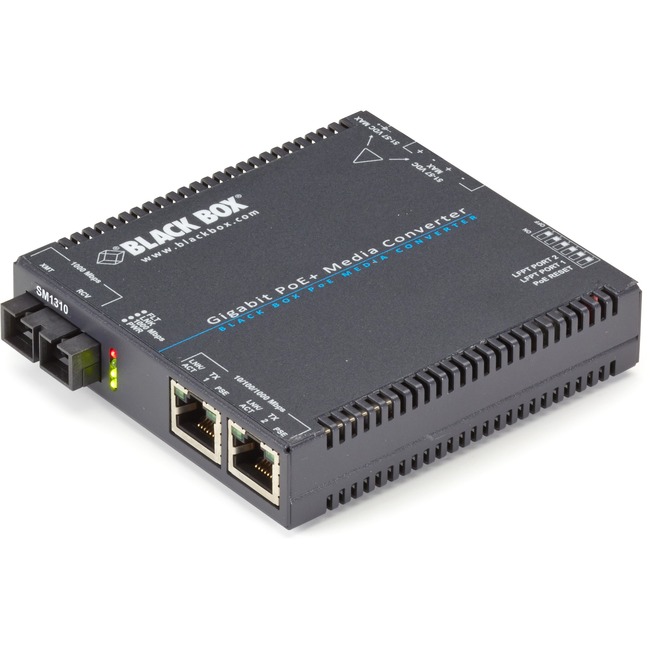

Black Box LGC5212A Transceiver/Media Converter
Black Box LGC5212A Transceiver/Media Converter - 2x PoE+ (RJ-45) Ports - 1 x SC Ports - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - Rail-mountable, Wall Mountable - TAA Compliant
| $674.60 | Retail $729.95 |
- Features two 10-/100-/1000-Mbps copper ports and one 1000Mbps fiber port.
- Both UTP ports are autosensing with Auto MDI/MDI-X; one UTP port supports 802.3at PoE+.
- Acts as power sourcing equipment (PSE) on the copper side to power PoE devices.
- Features an extended temperature range when used with DC terminal-block power
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
128300
Item:
LGC5212A
UPC Code:
822088107996
Our Part #
43201553
Condition
New
$674.60EA
$729.95
$729.95
Availability
Only 22 Left In Stock
Product description
Black Box LGC5212A Transceiver/Media Converter - 2x PoE+ (RJ-45) Ports - 1 x SC Ports - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - Rail-mountable, Wall Mountable - TAA Compliant
2x PoE+ (RJ-45) Ports - 1 x SC Ports - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - Rail-mountable, Wall Mountable - TAA Compliant
Specifications
Fiber Mode Supported
Single-mode
Fiber Optic Wavelength
1310 nm
Maximum Distance Supported
9.32 Mile
Number of PoE+ (RJ-45) Ports
2
Number of SC Ports
1
UPC Alternates
822088107996
Brand Name
Black Box
Country of origin
United States
Depth
3.8"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Wall Mountable
Form factor
Rail-mountable
Height
0.8"
Limited Warranty
6 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LGC5212A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Further Details
This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras wireless access points and VoIP phones.
The media converter features two autosensing 10/100/1000 UTP ports plus one single-mode fiber port that can extend a network connection up to 15 kilometers (9.3 mi.). Both UTP ports supports 802.3at Power over Ethernet enabling it to power a PoE+ PD device; the other is a straightforward Ethernet port which can be used for network expansion.
The Gigabit PoE+ Media Converter can be powered three ways: from an AC power supply (LGC5210-PS order separately) via the DC power jack or via the DC terminal block. When used with DC power to the terminal block the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).
The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras wireless access points and VoIP phones.
The media converter features two autosensing 10/100/1000 UTP ports plus one single-mode fiber port that can extend a network connection up to 15 kilometers (9.3 mi.). Both UTP ports supports 802.3at Power over Ethernet enabling it to power a PoE+ PD device; the other is a straightforward Ethernet port which can be used for network expansion.
The Gigabit PoE+ Media Converter can be powered three ways: from an AC power supply (LGC5210-PS order separately) via the DC power jack or via the DC terminal block. When used with DC power to the terminal block the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).
The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
1000Base-X
Network Technology
10/100/1000Base-TX
Power source
AC Adapter
Product Name
LGC5212A Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
3
USB
No
Width
3.6"
