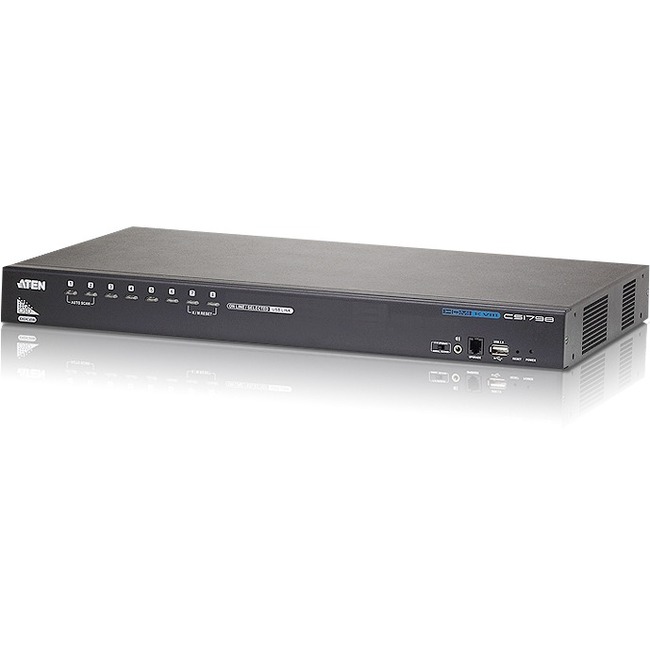

ATEN 8-Port USB HDMI KVM Switch-TAA Compliant
ATEN 8-Port USB HDMI KVM Switch-TAA Compliant - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable
| $434.33 | Retail $1,025.00 |
- One USB console controls up to eight HDMI interface computers and two additional USB 2.0 devices
- HDMI compatible
- Cascadable to three levels-control up to 512 computers*1
- Multi-Display feature - stack up to eight CS1798 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
- 2-port USB 2.0 hub built in
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Independent switching of KVM and USB focus
- OSD Backup/Restore feature-enables the administrator to back up the switch's configuration and user profile information
- Firmware upgradable
- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
128369
Item:
CS1798
UPC Code:
672792005565
Our Part #
VW2944
Condition
New
$434.33EA
$1,025.00
$1,025.00
Availability
Currently out of stock
Product description
ATEN 8-Port USB HDMI KVM Switch-TAA Compliant - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable
8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable
Specifications
Number of HDMI Ports
9
UPC Alternates
672792005565
Brand Name
ATEN
Country of origin
Taiwan
Depth
43.7"
Environmental Certification
RoHS
Form factor
Rack-mountable
Graphic Mode
WUXGA
Height
4.4"
Input voltage
5 V DC
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
CS1798
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard USB mouse and monitor console.
The CS1798 can be cascaded up to three levels - to control up to 512 computers - all from a single console. In addition the CS1798 features multi-display functionality which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast analyse and monitor video output in convenient ways substantially simplifying the working environment. Furthermore the CS1798 comes with ATEN's on-screen display (OSD) function which can access any computer connected to the installation it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
Marketing Information
The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard USB mouse and monitor console.
The CS1798 can be cascaded up to three levels - to control up to 512 computers - all from a single console. In addition the CS1798 features multi-display functionality which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast analyse and monitor video output in convenient ways substantially simplifying the working environment. Furthermore the CS1798 comes with ATEN's on-screen display (OSD) function which can access any computer connected to the installation it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
Maximum Video Resolution
1920 x 1200
Microphone
Yes
Minimum Scan Interval
1 Second
Number of Computers Supported
8
Number of Network (RJ-45) Ports
1
Number of USB Ports
12
Package Contents
- 8-Port USB HDMI KVM Switch
- Rack Mounting Kit
- 2 x Custom USB HDMI KVM Cable Sets (2L7D02UH)
- 1 x Firmware Upgrade Cable
- 1 x Power Adapter
- 1 x Foot Pad Set (4 pcs)
- 1 x Quick Start Guide
Platform Supported
PC
Platform Supported
Linux
Platform Supported
Mac
Platform Supported
Sun
Product Name
8-Port USB HDMI KVM Switch
Product Type
KM Switchbox
Weight (Approximate)
7.69 lb
Width
25.7"
