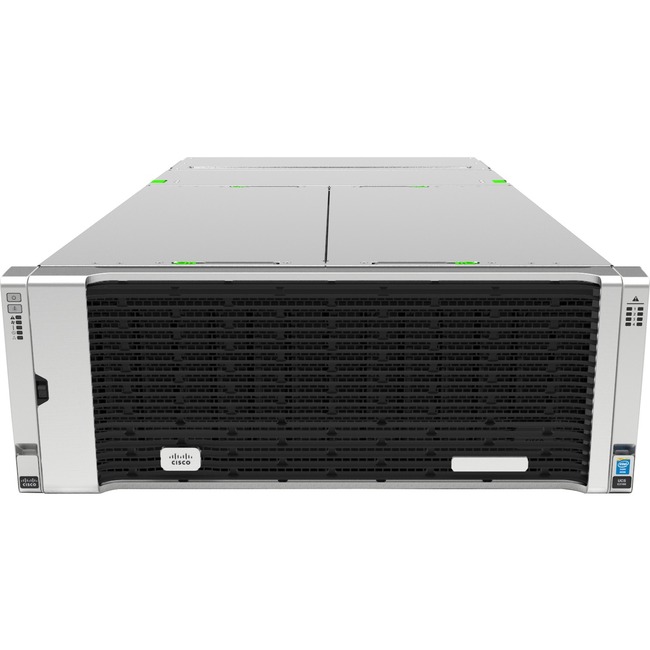

Cisco C3160 4U Rack Server - 2 x Intel Xeon E5-2660 v2 2.20 GHz - 256 GB RAM - 12Gb/s SAS Controller
Cisco C3160 4U Rack Server - 2 x Intel Xeon E5-2660 v2 2.20 GHz - 256 GB RAM - 12Gb/s SAS Controller - Intel C600 Chip - 2 Processor Support - 256 GB RAM Support - 0, 1, 5, 6, 10, 50, 60 RAID Levels - Gigabit Ethernet - 4 x 1050 W
| $15,479.48 | Retail $29,999.00 |
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 2.20 GHz processor
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 6, 10, 50, 60)
- 256 GB memory enables you to do multitasking and run intensive applications lag-free
- 1050 W power supply unit (PSU) fulfills your system's power requirements
By:
Cisco
Manufacturer:
Cisco Systems, Inc
Product ID:
128687
Item:
UCSC-C3X60-SVRN3
Our Part #
YW4095
Condition
New
$15,479.48EA
$29,999.00
$29,999.00
Availability
Only 9999 Left In Stock
You may be also interested
Product description
Cisco C3160 4U Rack Server - 2 x Intel Xeon E5-2660 v2 2.20 GHz - 256 GB RAM - 12Gb/s SAS Controller - Intel C600 Chip - 2 Processor Support - 256 GB RAM Support - 0, 1, 5, 6, 10, 50, 60 RAID Levels - Gigabit Ethernet - 4 x 1050 W
Intel C600 Chip - 2 Processor Support - 256 GB RAM Support - 0, 1, 5, 6, 10, 50, 60 RAID Levels - Gigabit Ethernet - 4 x 1050 W
Specifications
64-bit Processing
Yes
Cache
25 MB
Chipset
Intel C600
Chipset Model
C600
Direct Media Interface
8 GT/s
Maximum Memory Supported
256 GB
Maximum Power Supply Wattage
1050 W
Maximum Turbo Speed
3 GHz
Memory Standard
DDR3-1866/PC3-14900
Number of Nodes
1
Number of Power Supplies Installed
4
Number of Processors Supported
2
Processor Core
Deca-core (10 Core)
Brand Name
Cisco
Certifications & Standards
Regulatory Compliance:
- CE Markings per directives
- 2004/108/EC and 2006/95/EC
Safety:
- UL 60950-1 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- AS/NZS 60950-1
EMC - Emissions:
- 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR22 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
EMC - Immunity:
- EN55024
- CISPR24
- EN300386
- KN24
Compatibility
- Windows Server 2012 Standard
- Windows Server 2012 Datacenter
- Windows Server 2012 Standard
- Windows Server 2012 Datacente
- Windows Server 2012 R2 Standard
- Windows Server 2012 R2 Datacenter
- Windows Server 2012 R2 Standard
- Windows Server 2012 R2 Datacen
- SUSE Linux Enterprise Srvr
- Red Hat Enterprise Linux
- VMware 5
Controller Type
12Gb/s SAS
Depth
32"
Ethernet Technology
Gigabit Ethernet
Form factor
Rack
Height
6.9"
Input voltage
230 V AC
Limited Warranty
3 Year
Manufacturer
Cisco Systems Inc
Manufacturer Part Number
UCSC-C3X60-SVRN3
Manufacturer Website Address
http://www.cisco.com
Marketing Information
Get Enterprise-Class Storage Density
The Cisco UCS C3160 Rack Server is an advanced modular high-storage-density rack server targeted at storage-driven use cases. Combining industry-leading performance and scalability the UCS C3160 directly targets environments deploying OpenStack Ceph-based object stores and other software-defined and distributed storage environments. The rack server offers the highest levels of drive density.
Memory Technology
DDR3 SDRAM
Number of Total Memory Slots
16
Processor Manufacturer
Intel
Processor model
E5-2660 v2
Processor Speed
2.20 GHz
Processor Type
Xeon
Product Name
UCSC C3160 Server
Product Series
C3160
Product Type
Server
Rack Height
4U
RAID Levels
0 1 5 6 10 50 60
Total Number of USB Ports
5
Weight (Approximate)
195 lb
Width
17.5"
