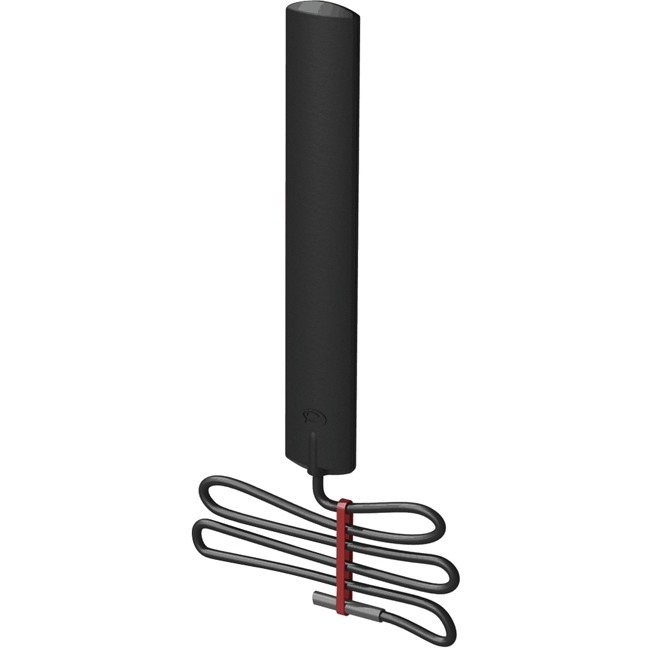

Panorama Antennas 2G/3G/4G Easy-Fit Antenna
Panorama Antennas 2G/3G/4G Easy-Fit Antenna - 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2396 MHz to 2700 MHz - 2 dBi - Cellular Network - Black - Omni-directional - SMA Connector
| $19.98 | Retail $24.34 |
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Provides gain of up to 2 dBi
- Designed for cellular network
By:
Panorama Antennas
Manufacturer:
Panorama Antennas Ltd
Product ID:
129150
Item:
EF-BC3G-26-3SP
Our Part #
6DC622
Condition
New
$19.98EA
$24.34
$24.34
Availability
Only 2 Left In Stock
You may be also interested
Product description
Panorama Antennas 2G/3G/4G Easy-Fit Antenna - 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2396 MHz to 2700 MHz - 2 dBi - Cellular Network - Black - Omni-directional - SMA Connector
698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2396 MHz to 2700 MHz - 2 dBi - Cellular Network - Black - Omni-directional - SMA Connector
Specifications
Antenna Gain
2 dBi
Directivity
Omni-directional
Operating Frequency Range
1710 MHz to 2170 MHz
Operating Frequency Range
698 MHz to 960 MHz
Operating Frequency Range
2396 MHz to 2700 MHz
Application/Usage
Cellular Network
Brand Name
Panorama Antennas
Connector Type
SMA
Depth
0.28"
Height
5.16"
Manufacturer
Panorama Antennas Ltd
Manufacturer Part Number
EF-BC3G-26-3SP
Manufacturer Website Address
http://www.panorama-antennas.com
Marketing Information
Design
EF-BC3G-26 is a range of highly efficient and portable antennas for 2G/3G/4G modems and datacards. These paddle style antennas are easily positioned on a device housing or vehicle windscreen using the supplied automotive industry grade adhesive pad.
The antenna is constructed from weather resistant plastic and is suitable for use in semi-exposed scenarios.
Applications
The antenna is ultrawideband and ground plane independent making it ideal for global machine-to-machine and mobile data applications. Covering 698-960 / 1710-2170 /2396-2700MHz the EF-BC3G-26 is designed to support the full range of 2G/3G and 4G frequencies globally.
Product color
Black
Product Model
EF-BC3G-26
Product Name
2G/3G/4G Easy-Fit Antenna
Product Type
Antenna
Width
0.85"
