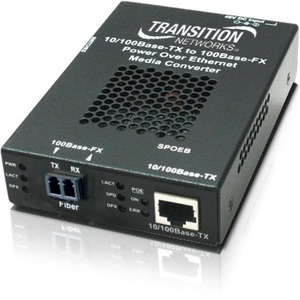

Transition Networks Stand-alone Fast Ethernet PoE Media Converter
Transition Networks Stand-alone Fast Ethernet PoE Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - Multi-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - Wall Mountable
| $282.56 | Retail $360.00 |
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organized
By:
Transition Networks
Manufacturer:
Transition Networks, Inc
Product ID:
129197
Item:
SPOEB1013-105-NA
UPC Code:
648177039821
Our Part #
1X6260
Condition
New
$282.56EA
$360.00
$360.00
Availability
Only 21 Left In Stock
Product description
Transition Networks Stand-alone Fast Ethernet PoE Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - Multi-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - Wall Mountable
Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - Multi-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - Wall Mountable
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Wavelength
1300 nm
Maximum Distance Supported
1.24 Mile
Number of PoE (RJ-45) Ports
1
SC Port Type
Duplex
UPC Alternates
648177039821 818239980716 818242454839 818244605406 993248573279
UPC Alternates
648177039821 818242454839 818244605406 993248573279
Brand Name
Transition Networks
Country of origin
Taiwan
Depth
4.8"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
Wall Mountable
Height
1"
Limited Warranty
Lifetime
Manufacturer
Transition Networks Inc
Manufacturer Part Number
SPOEB1013-105-NA
Manufacturer Website Address
http://www.transition.com
Marketing Information
SPOEB10xx-105 is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection.
Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with
-48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection Under-Current Detection and Fault Protection Input.
This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities.
In addition with the PSE/LPT switch enabled a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset.)
The PoE converter is fully compatible with devices that comply with the IEEE
802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI.
Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with
-48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection Under-Current Detection and Fault Protection Input.
This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities.
In addition with the PSE/LPT switch enabled a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset.)
The PoE converter is fully compatible with devices that comply with the IEEE
802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100Base-TX
Network Technology
100Base-FX
Package Contents
- Stand-alone Fast Ethernet PoE Media Converter
- Power Supply
Power source
Power Supply
Product Model
SPOEB10xx-105
Product Name
Stand-alone Fast Ethernet PoE Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
2
USB
No
Weight (Approximate)
2 lb
Width
3.3"
