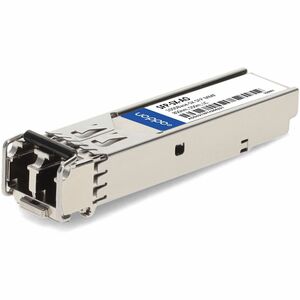

Accortec MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver
Accortec MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver - For Data Networking - 1 x LC 1000Base-SX - Optical Fiber - 62.5/125 µm, 50/125 µm - Multi-mode1
| $39.97 | Retail $61.88 |
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
By:
Accortec
Manufacturer:
Accortec, Inc
Product ID:
130419
Item:
MGBSX1-ACC
Our Part #
43201553
Condition
New
$39.97EA
$61.88
$61.88
Availability
Only 651 Left In Stock
Product description
Accortec MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver - For Data Networking - 1 x LC 1000Base-SX - Optical Fiber - 62.5/125 µm, 50/125 µm - Multi-mode1
For Data Networking - 1 x LC 1000Base-SX - Optical Fiber - 62.5/125 µm, 50/125 µm - Multi-mode1
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Standard
50/125 µm
Fiber Optic Cable Standard
62.5/125 µm
Interfaces/Ports Details
1 x LC 1000Base-SX
Maximum Distance Supported
1804.46 ft
Additional Information
- Transmitter Spec: Power: -9.5 to -4 dBm
- Reciever Spec: Sensitivity: -20 to -17dBm
- Input Power: -20 to -17 dBm
- Stress Sensitivity: 50/125 um: -13.5dBm 62.5/125 um: -12.5dBm
- Wavelength: 850 nm (850nm TYP. 830-860nm) MMF
Modular Bandwidth for MMF:
- 62.5/125um MMF at 160 MHz/km up to 220m
- 62.5/125um MMF at 200 MHz/km up to 275m
- 50/125um MMF at 400 MHz/km up to 500m
- 50/125um MMF at 500 MHz/km up to 550m
Application/Usage
Data Networking
Brand Name
Accortec
Compatibility
- SR2024 - 24-Port 10/100/1000 Gigabit Switch
- SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
- SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
- SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
- SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView
Connector Type
LC
Manufacturer
Accortec Inc
Manufacturer Part Number
MGBSX1-ACC
Manufacturer Website Address
http://www.accortec.com
Maximum Data Transfer Rate
1
Media Type Supported
Optical Fiber
Product Name
MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver
Product Type
SFP (mini-GBIC)
Weight (Approximate)
0.04 lb
