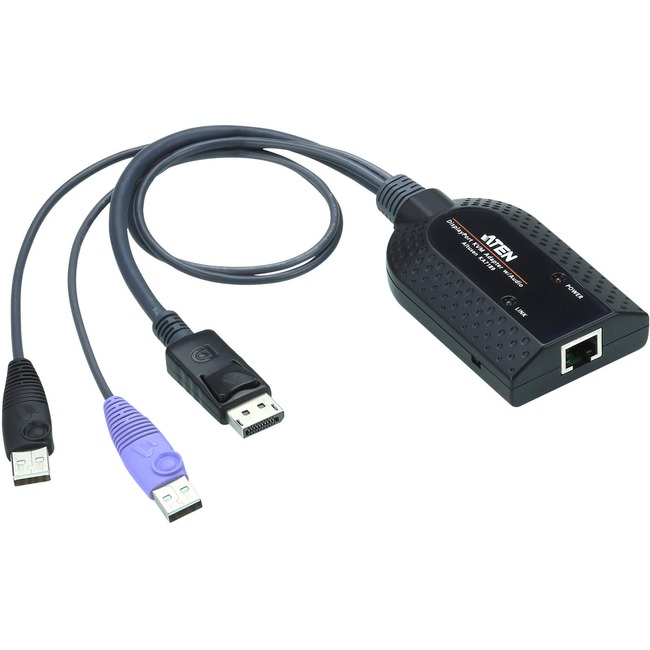

ATEN Server Interface Module-TAA Compliant
ATEN Server Interface Module-TAA Compliant - 1.64 ft Server Interface Module for Computer, Audio/Video Device, Keyboard/Mouse, KVM Switch, Card Reader, PC - First End: 1 x RJ-45 Female Network - Second End: 2 x Type A Male USB, Second End: 1 x DisplayPort Male Digital Audio/Video - Supports up to 1920 x 1200 - 1
| $208.43 | Retail $263.00 |
- Connects a KVM switch to the DisplayPort video and USB ports of a target computer*
- Supports Audio De-Embedder
- Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
- Keyboard and mouse emulation - keeps your server functioning smoothly when it's disconnected from the switch's KVM port or is relocated to a different KVM port
- Virtual Media Support**
- Smart Card / CAC Reader Support**
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)***
- Built in ASIC for greater reliability and compatibility
- Compact size
- Firmware upgradeable
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
131612
Item:
KA7189
UPC Code:
672792009235
Our Part #
5DC154
Condition
New
$208.43EA
$263.00
$263.00
Availability
Only 9 Left In Stock
Product description
ATEN Server Interface Module-TAA Compliant - 1.64 ft Server Interface Module for Computer, Audio/Video Device, Keyboard/Mouse, KVM Switch, Card Reader, PC - First End: 1 x RJ-45 Female Network - Second End: 2 x Type A Male USB, Second End: 1 x DisplayPort Male Digital Audio/Video - Supports up to 1920 x 1200 - 1
1.64 ft Server Interface Module for Computer, Audio/Video Device, Keyboard/Mouse, KVM Switch, Card Reader, PC - First End: 1 x RJ-45 Female Network - Second End: 2 x Type A Male USB, Second End: 1 x DisplayPort Male Digital Audio/Video - Supports up to 1920 x 1200 - 1
Specifications
UPC Alternates
672792009235
Brand Name
ATEN
Cable length
1.64 ft
Compatibility
Aten - KN1132V
Connector on First End
RJ-45 Female Network
Connector on First End
1 x RJ-45 Female Network
Connector on Second End
2 x Type A Male USB
Connector on Second End
Type A Male USB
Connector on Second End
1 x DisplayPort Male Digital Audio/Video
Connector on Second End
DisplayPort Male Digital Audio/Video
Country of origin
Taiwan
Device Supported
KVM Switch
Device Supported
Card Reader
Device Supported
Keyboard/Mouse
Device Supported
PC
Device Supported
Audio/Video Device
Device Supported
Computer
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Features
LED
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
KA7189
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The KA7189 KVM Adapter Cable connects a KVM switch to the DisplayPort video and USB ports of a target computer. The KA7189 supports DisplayPort output and provides two USB plugs to connect a target computer for keyboard/mouse Virtual Media or Smart Card/CAC Reader functions.
The KA7189 supports Audio De-Embedder which extracts the audio from a DisplayPort signal. More advanced features of KA7189 include the small size and lightweight design as well as superior signal compensation and delay skew technologies for greatly enhanced video quality.
Packaged Quantity
1
Product Type
Server Interface Module
Supported Resolution
1920 x 1200
Weight (Approximate)
0.24 lb
