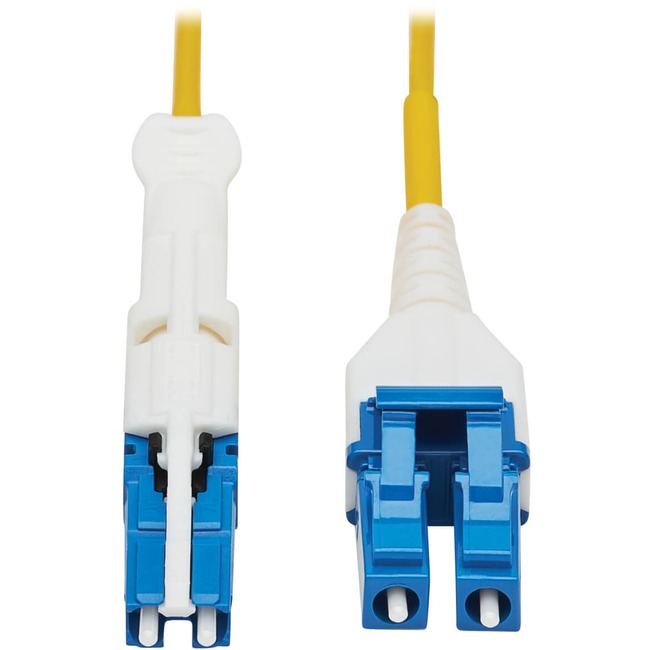

Tripp Lite Duplex Singlemode SMF Fiber Optic Cable OS2 LSZH CS-UPC LC-UPC 10M
Tripp Lite Duplex Singlemode SMF Fiber Optic Cable OS2 LSZH CS-UPC LC-UPC 10M - 32.81 ft Fiber Optic Network Cable for Network Device, Transceiver, Patch Panel, Network Switch - First End: 2 x CS Male Network - Second End: 2 x LC/UPC Male Network - 400 Gbit/s - LSZH - 9/125 µm - Yellow, Blue
| $4,051.50 |
- OS2-rated cable recommended for 400 Gb speeds up to 2 km (@ 1310 nm)
- CS connector 40% more dense than standard LC end for easier cable management
- Smaller-format CS end designed for next-generation 400G QSFP-DD transceivers
- Backward compatible with 40/100 GbE networks to facilitate future-proofing
- Yellow LSZH jacket allows fast, easy identification in a crowded switch or patch panel
- This product is covered by a Lifetime Limited Warranty (coverage details)
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
134182
Item:
N381L-10M
UPC Code:
037332260109
Our Part #
8JR182
Condition
New
$4,051.50EA
Availability
Only 56 Left In Stock
Product description
Tripp Lite Duplex Singlemode SMF Fiber Optic Cable OS2 LSZH CS-UPC LC-UPC 10M - 32.81 ft Fiber Optic Network Cable for Network Device, Transceiver, Patch Panel, Network Switch - First End: 2 x CS Male Network - Second End: 2 x LC/UPC Male Network - 400 Gbit/s - LSZH - 9/125 µm - Yellow, Blue
32.81 ft Fiber Optic Network Cable for Network Device, Transceiver, Patch Panel, Network Switch - First End: 2 x CS Male Network - Second End: 2 x LC/UPC Male Network - 400 Gbit/s - LSZH - 9/125 µm - Yellow, Blue
Specifications
UPC Alternates
037332260109
Brand Name
Tripp Lite
Cable length
32.81 ft
Cable type
Fiber Optic
Color
Yellow Jacket
Color
Blue
Color
Yellow
Connector on First End
CS Male Network
Connector on First End
2 x CS Male Network
Connector on Second End
2 x LC/UPC Male Network
Connector on Second End
LC/UPC Male Network
Core/Cladding Diameter
9/125 µm
Country of origin
China
Data transfer rate
400 Gbit/s
Device Supported
Patch Panel
Device Supported
Network Device
Device Supported
Network Switch
Device Supported
Transceiver
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Features
Push-Pull Tab
Fiber Optic Mode
Single-mode
Jacket Type
LSZH
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N381L-10M
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data Networking
As the amount of traffic in data networks grows so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services hyperscale data centers telecom applications and equipment OEM companies. This duplex singlemode 9/125 OS2 cable is an ideal choice for 400G Ethernet applications up to two kilometers (at 1310 nm). It is also backward compatible with 40 Gb and 100 Gb networks so you can future-proof your current application for an eventual upgrade to 400 Gb.
Compact CS Connector Designed for the Latest QSFP-DD Transceivers
The CS end is 40 percent smaller than a standard LC connector making it compatible with the latest 400G QSFP-DD transceivers and an excellent solution for high-density network applications. A push/pull tab allows dense vertical stacking in switches or patch panels where space is at a premium and makes the cable easy to install or remove with one hand.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion making it suitable for poorly ventilated areas. It also complies with G657A2 bend-insensitive fiber standards which allows for easy installation without excessive care when storing the fiber due to the increased bend radius.
Product Name
N381L-10M 400Gb Duplex Singlemode 9/125 OS2 Fiber Optic Cable Yellow 10 m
Product Type
Network Cable
