Panorama Antennas External Mount 4G/5G MiMo Antenna
Panorama Antennas External Mount 4G/5G MiMo Antenna - 698 MHz to 960 MHz, 1710 MHz to 3800 MHz - 5 dBi - Cellular Network, GPS - White - Desktop/Wall/Mast, External, Pole - Omni-directional - N-connector Connector
| $132.53 | Retail $211.68 |
- Provides ease of management and installation thanks to its omni-direction feature
- Offers up to 5 dBi gain
- Get improved cellular network signal from further away with this antenna
- Can be mounted using mast mount or a wall mount or placed on a desktop
By:
Panorama Antennas
Manufacturer:
Panorama Antennas Ltd
Product ID:
134437
Item:
WMMG-7-38-03NJ
Our Part #
8YK119
Condition
New
$132.53EA
$211.68
$211.68
Availability
Only 226 Left In Stock
Product description
Panorama Antennas External Mount 4G/5G MiMo Antenna - 698 MHz to 960 MHz, 1710 MHz to 3800 MHz - 5 dBi - Cellular Network, GPS - White - Desktop/Wall/Mast, External, Pole - Omni-directional - N-connector Connector
698 MHz to 960 MHz, 1710 MHz to 3800 MHz - 5 dBi - Cellular Network, GPS - White - Desktop/Wall/Mast, External, Pole - Omni-directional - N-connector Connector
Specifications
Antenna Gain
5 dBi
Antenna Gain (Isotropic)
5 dBi
Directivity
Omni-directional
Operating Frequency Range
1710 MHz to 3800 MHz
Operating Frequency Range
698 MHz to 960 MHz
Application/Usage
Cellular Network
Application/Usage
GPS
Brand Name
Panorama Antennas
Connector Type
N-connector
Environmental Certification
RoHS 3
Environmental Certification
REACH
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
External
Form factor
Pole
Form factor
Desktop/Wall/Mast
Height
6.10"
Manufacturer
Panorama Antennas Ltd
Manufacturer Part Number
WMMG-7-38-03NJ
Manufacturer Website Address
http://www.panorama-antennas.com
Marketing Information
Supports MiMo & Diversity across 4G/5G Two wideband elements with gain Durable wall mount housing Suitable for mast wall and desk mounting

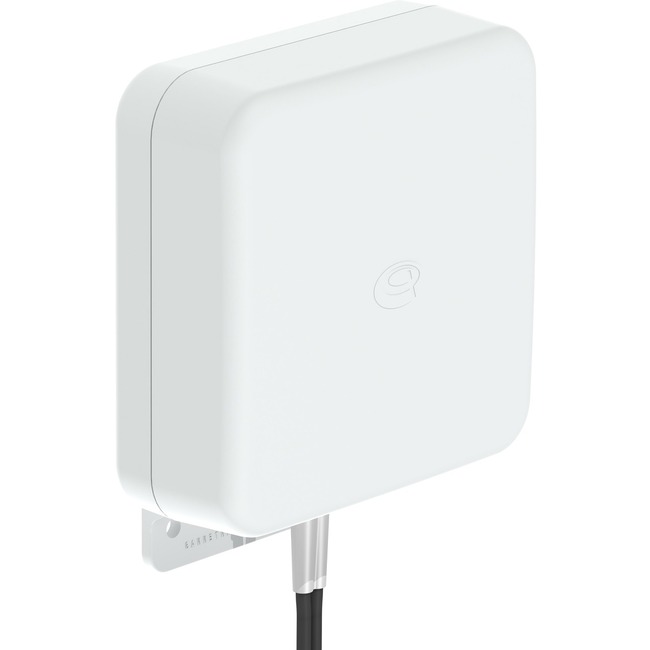

The WMMG antenna provides an innovative and future proof solution for 3G/4G and 3.8GHz 5G networks. Incorporating two separately fed ultra wideband elements in a single housing the WMMG is equipped to provide client side MiMo and diversity support for the networks of today and tomorrow. With 2dBi gain at 698-960MHz 5dBi gain at 1710-2170MHz and 4dBi gain at 2200-3800MHz the WMMG provides extra gain performance where it is needed most.
The rugged weatherproof housing is designed for wall mounting. Wall and mast mount brackets are provided.
5 metres (16') of fitted low loss double shielded twin cable minimises exposed connector joints and simplifies cable management for easy installaton.
The WMMG is a cost effective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers thereby improving satisfaction and retention.
Package Contents
- External Mount 4G/5G MiMo Antenna
- Wall and Mast Mount Brackets
Packaged Quantity
1
Product color
White
Product Model
WMMG-7-38
Product Name
External Mount 4G/5G MiMo Antenna
Product Type
Antenna
Weight (Approximate)
12.45 oz
