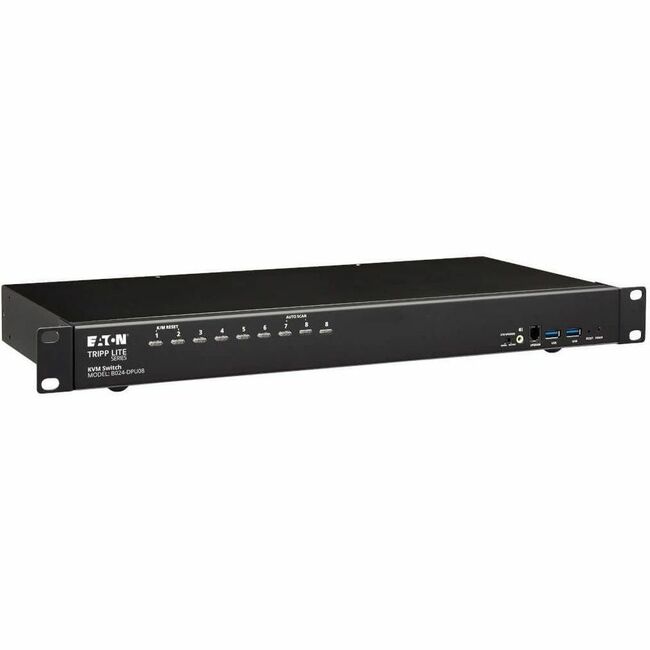

Tripp Lite DisplayPort / USB KVM Switch 8-Port Audio/Video 4K 60Hz 1URM

Features l Connects 8 DisplayPort Devices to a Single DisplayPort Monitor Keyboard and Mouse
This rack-mount KVM switch lets you access control boot and reboot up to eight computers or other devices with DisplayPort connectors at the same time. In addition to desktop and notebook computers the KVM also connects up to eight media centers gaming systems Blu-ray and DVD players cable and satellite boxes DVRs and other DisplayPort-enabled devices. All eight computers share one DisplayPort and/or HDMI monitor USB keyboard and USB mouse which saves space on your desk or workspace.

Connect up to 128 Computers to One Original Console
You can also cascade two levels of B024-DPU08 KVM switches allowing centralized access to as many as 128 computers using a single monitor keyboard and mouse.

Switching Between Computers Is Fast and Easy
Use the front-panel pushbuttons RS-232 commands hotkeys or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.

Cables Are Included for Fast and Simple Setup
Connect your DisplayPort and/or HDMI monitor keyboard mouse and (optional) speakers to the KVM's console ports. Then use the included DisplayPort and USB cables to connect your computers to the KVM. The plug-and-play B024-DPU08 requires no software so you can connect and use it immediately. It works with all major operating systems including Windows macOS Sun and Linux.

USB Hub Lets You Share Peripherals between Computers
The built-in dual-port USB 3.1 Gen 1 hub allows you to share USB peripherals such as printers hard drives scanners webcams and flash drives between all connected computers. Because the USB ports operate independently you can print documents from one computer while working on a different computer. The hub is backward compatible with earlier USB generations. LEDs indicate which computer is using the connected USB device.

Transmits Crystal-Clear 4K Video and High-Definition Audio
The B024-DPU08 supports true 4K video (4096 x 2160) at 60 Hz and 2.1-channel surround sound with full bass response. With independent audio switching you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jacks have priority over the rear-panel jacks.

Stack Units to Expand Your Workstation and Enhance Your Productivity
Stack as many as eight B024-DPU08 KVM switches on a level surface to take advantage of multi-display mode. Depending on the number of stages in your stack your installation may offer dual-display triple-display quad-display or multi-display scenarios up to eight stages.

Designed for Convenient Mounting with Included Hardware
The heavy-duty metal housing comes with mounting hardware for 1U installation in an EIA-standard 19-inch rack. It also allows desktop deployment on included rubber feet that help prevent the unit from sliding. The included power supply comes with a detachable C13-to-C14 cord.

Typical Applications

• Share the keyboard mouse and DisplayPort screen of a laptop or notebook computer with multiple computers
• Connect up to 8 gaming consoles media centers and other A/V devices for a home theater system with 4K resolution
• Save money and space by sharing USB peripherals such as a printer and external hard drive among all connected computers
• Control up to 128 computers by cascading the B024-DPU08

• B024-DPU08 8-Port DisplayPort/USB KVM Switch
• 2 x DisplayPort 1.4 cables 5 ft. (1.5 m)
• 2 x USB 3.0 A-to-B cables 6 ft. (1.8 m)
• 2 x 3.5 mm audio cables 6 ft.
• Firmware upgrade cable 6 ft.
• External power supply (Input: 100-240V 50/60 Hz; Output: 12V 3.3A) with detachable C13-to-C14 cord 4 ft. (1.2 m)
• 4 x Rubber Feet
• Rack-Mounting Hardware
• Quick Start Guide
