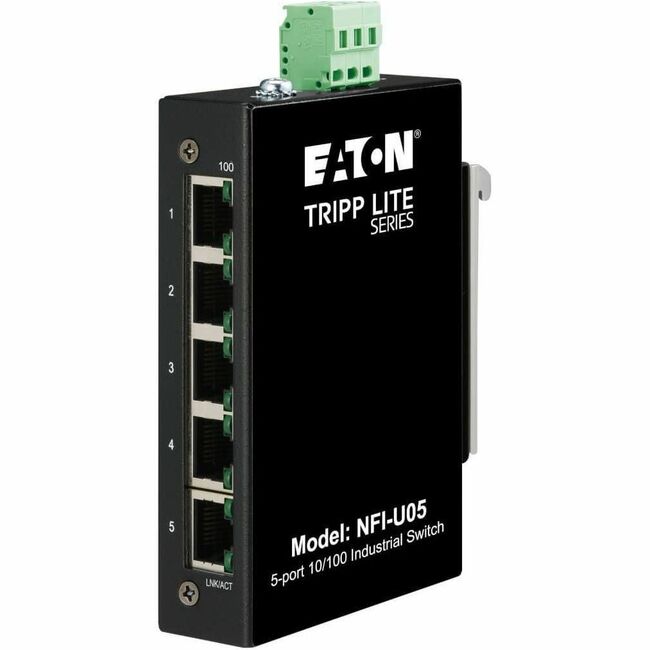

Tripp Lite Ethernet Switch Unmanaged 5Port Industrial DIN Mount 10/100 Mbps
Tripp Lite Ethernet Switch Unmanaged 5Port Industrial DIN Mount 10/100 Mbps - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 3 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - 3 Year Limited Warranty
| $92.05 | Retail $134.00 |
- 5 auto-negotiable 10/100 Mbps RJ45 ports connect devices over a LAN
- Industrial-grade switch supports operating temperature range of - 40° to 167°F
- Easy-to-read LEDs indicate connection and activity status for all 5 Ethernet ports
- Plug-and-play operation with no software or configuration required before use
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
134645
Item:
NFI-U05
UPC Code:
037332264268
Our Part #
9HB971
Condition
New
$92.05EA
$134.00
$134.00
Availability
Only 181 Left In Stock
You may be also interested
Product description
Tripp Lite Ethernet Switch Unmanaged 5Port Industrial DIN Mount 10/100 Mbps - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 3 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - 3 Year Limited Warranty
5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 3 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - 3 Year Limited Warranty
Specifications
Product Material
Aluminum
Total Number of Network Ports
5
UPC Alternates
037332264268
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
2.9"
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
Wall Mountable
Form factor
DIN Rail Mountable
Height
4.3"
Layer Supported
2
Limited Warranty
3 Year
Manageable
No
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
NFI-U05
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges.
Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it which improves the efficiency and potential throughput of the network.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications such as factory floors warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address autolearning and auto-aging for efficient routing as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Flexible Mounting Options
The open-type device may be DIN mounted using the pre-installed rail clip which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it which improves the efficiency and potential throughput of the network.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications such as factory floors warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address autolearning and auto-aging for efficient routing as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Flexible Mounting Options
The open-type device may be DIN mounted using the pre-installed rail clip which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Media Type Supported
Twisted Pair
Network Technology
10/100Base-T
Networking standards
IEEE 802.3u
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.3
Package Contents
- NFI-U05 Ethernet Switch
- DIN Rail-mounting Clip
- Owner's Manual
Port/Expansion Slot Details
5 x Fast Ethernet Network
Power consumption
3 W
Product Name
NFI-U05 Ethernet Switch
Product Type
Ethernet Switch
Weight (Approximate)
6.70 oz
Width
0.9"
