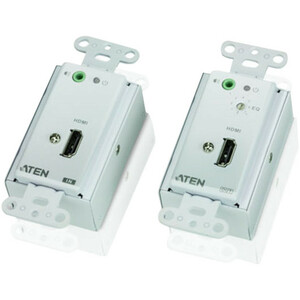

ATEN HDMI Over Cat 5 Extender Wall Plate-TAA Compliant
ATEN HDMI Over Cat 5 Extender Wall Plate-TAA Compliant - 1 Input Device - 1 Output Device - 196.85 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Wall Mountable
| $126.13 | Retail $173.00 |
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
136737
Item:
VE806
UPC Code:
672792004667
Our Part #
UN5069
Condition
New
$126.13EA
$173.00
$173.00
Availability
Only 2 Left In Stock
Product description
ATEN HDMI Over Cat 5 Extender Wall Plate-TAA Compliant - 1 Input Device - 1 Output Device - 196.85 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Wall Mountable
1 Input Device - 1 Output Device - 196.85 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Wall Mountable
Specifications
Product Material
Metal
Transmitter Height
1.57"
Transmitter Weight (Approximate)
6 oz
Transmitter Width
1.73"
UPC Alternates
672792004667
Brand Name
ATEN
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Wall Mountable
Graphics Modes
Full HD
Input voltage
9 V DC
Length
4.1"
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VE806
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The VE806 HDMI Over Cat 5 Extender Wall Plate extends HDMI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays.
The VE806 can be powered at either the Transmitter or Receiver side and uses a second Cat 5e cable to transmit the power signal. The VE806's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms museums and any environment that requires equipment or cabling to be kept hidden from public view.
Maximum Operating Distance
196.85 ft
Maximum Video Resolution
1920 x 1080
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
4
Package Contents
- 1 x VE806T HDMI Over Cat 5 Extender Wall Plate
- 1 x VE806R HDMI Over Cat 5 Extender Wall Plate
- 1 x Terminal Block Connector
- 1 x Power Adapter
- 1 x User Instructions
Product Name
HDMI Over Cat 5 Extender Wall Plate
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 5e
