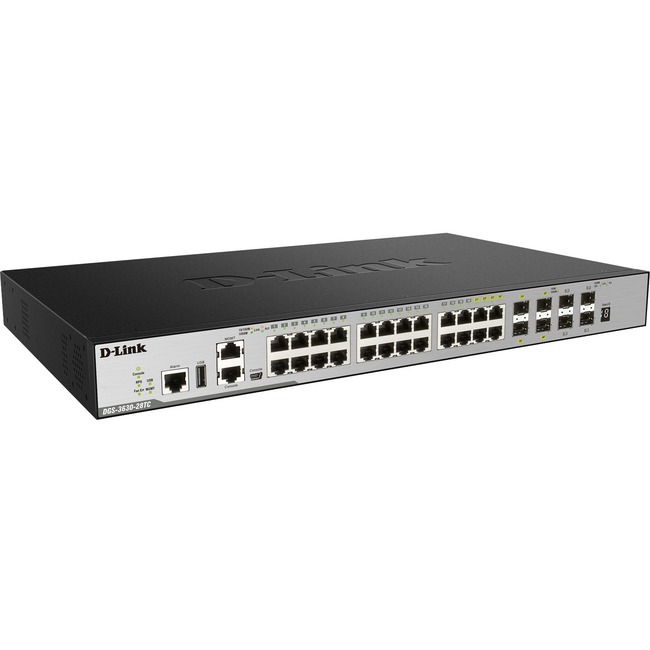

D-Link 28-Port Layer 3 Stackable Managed Gigabit Switch including 4 10GbE Ports
D-Link 28-Port Layer 3 Stackable Managed Gigabit Switch including 4 10GbE Ports - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-TX, 10GBase-SR, 10GBase-LR, 1000Base-LX, 1000Base-SX, 10GBase-LRM - 3 Layer Supported - Modular - 4 SFP Slots - Optical Fiber, Twisted Pair - Lifetime Limited Warranty
| $1,825.62 | Retail $2,397.99 |
- Features 24 networking ports to establish large network
- Stack port provides an easy and hassle-free way to extend your office network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Built-in power supply to ensure all components are being supplied with accurate voltage
By:
D-Link
Manufacturer:
D-Link Systems, Inc
Product ID:
138564
Item:
DGS-3630-28TC/SI
UPC Code:
790069425622
Our Part #
4M5903
Condition
New
$1,825.62EA
$2,397.99
$2,397.99
Availability
Only 12 Left In Stock
Product description
D-Link 28-Port Layer 3 Stackable Managed Gigabit Switch including 4 10GbE Ports - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-TX, 10GBase-SR, 10GBase-LR, 1000Base-LX, 1000Base-SX, 10GBase-LRM - 3 Layer Supported - Modular - 4 SFP Slots - Optical Fiber, Twisted Pair - Lifetime Limited Warranty
24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-TX, 10GBase-SR, 10GBase-LR, 1000Base-LX, 1000Base-SX, 10GBase-LRM - 3 Layer Supported - Modular - 4 SFP Slots - Optical Fiber, Twisted Pair - Lifetime Limited Warranty
Specifications
Number of SFP Slots
4
Number of Total Expansion Slots
8
Total Number of Network Ports
24
UPC Alternates
790069425622 818242669998 818275250859
Brand Name
D-Link
Country of origin
China
Depth
10.2"
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Expansion Slot Type
SFP+
Expansion Slot Type
SFP
Height
1.7"
Layer Supported
3
Limited Warranty
Lifetime
Manageable
Yes
Manufacturer
D-Link Systems Inc
Manufacturer Part Number
DGS-3630-28TC/SI
Manufacturer Website Address
http://www.dlink.com
Marketing Information
The DGS-3630 Series Layer 3 Stackable Managed Switches are designed for Small Medium Businesses (SMBs) Small Medium Enterprises (SMEs) larger Enterprises and ISPs. They deliver high performance flexibility fault tolerance and advanced software features for maximum return on investment. With Gigabit Ethernet RJ45 and SFP ports 10 GbE SFP+ ports advanced security features and advanced Quality of Service (QoS) the DGS-3630 Series can act as core distribution or access layer switches. High port densities switch stacking and easy management make the DGS-3630 Series suitable for a variety of applications.
Standard and Enhanced Software Images
The DGS-3630 Series switches include the Standard Image (SI) software and for additional functionality they may be upgraded to Enhanced Image (EI) with a separately ordered license upgrade. The Standard Image provides core SMB and SME functionality such as L2 switching entry-level routing L2 multicast advanced QoS Operations Administration and Maintenance (OAM) and robust security features. The Enhanced Image includes all the features from the Standard Image and also supports full L3 routing for Enterprise integration including OSPF BGP VRF-Lite and L3 multicast.
This approach allows I.T. managers to deploy a lower cost L2/L2+ solution today and upgrade to a L3 solution in the future if networking needs change and a full dynamic routing solution is required.
High Availability and Flexibility
The DGS-3630 Series switches support stacking technology which combines multiple switches to form a single physical or virtual stack. This increases redundancy over multiple physical units simplifies management and provides a single IP address to manage all members in the stack. Up to 9 switches can be stacked using Direct Attach Copper (DAC) or fiber optic cables to make up to 432 Gigabit Ethernet ports available allowing switching capacity to be increased with demand. The Switch Resource Management (SRM) feature allows the hardware table size to be changed so that switch functions can be optimized based on the use of the switch. There are 3 modes: IP Mode LAN Mode and L2 VPN Mode which modify the size of the Layer 2 and 3 tables for optimum efficiency.
Security Performance and Availability
The DGS-3630 Series switches provide a complete set of security features including multi-layer Access Control Lists (ACLs) and 802.1X user authentication via TACACS+ and RADIUS. The DGS-3630 switches also offer extensive VLAN support including GVRP and 802.1Q VLAN to enhance security and performance. A robust set of QoS features help ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network. The D-Link Safeguard Engine increases the switches' reliability serviceability and availability by preventing malicious flooding traffic caused by worms or virus attacks.
D-Link Green Technology
The DGS-3630 Series switches feature D-Link Green technology which includes a power-saving mode smart fan feature reduced heat dissipation and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner and ensures that LEDs are shut off when not needed. The smart fan3 feature allows for the built-in fans to automatically turn on only at a certain temperature providing continuous reliable and ecofriendly operation of the switch.
Standard and Enhanced Software Images
The DGS-3630 Series switches include the Standard Image (SI) software and for additional functionality they may be upgraded to Enhanced Image (EI) with a separately ordered license upgrade. The Standard Image provides core SMB and SME functionality such as L2 switching entry-level routing L2 multicast advanced QoS Operations Administration and Maintenance (OAM) and robust security features. The Enhanced Image includes all the features from the Standard Image and also supports full L3 routing for Enterprise integration including OSPF BGP VRF-Lite and L3 multicast.
This approach allows I.T. managers to deploy a lower cost L2/L2+ solution today and upgrade to a L3 solution in the future if networking needs change and a full dynamic routing solution is required.
High Availability and Flexibility
The DGS-3630 Series switches support stacking technology which combines multiple switches to form a single physical or virtual stack. This increases redundancy over multiple physical units simplifies management and provides a single IP address to manage all members in the stack. Up to 9 switches can be stacked using Direct Attach Copper (DAC) or fiber optic cables to make up to 432 Gigabit Ethernet ports available allowing switching capacity to be increased with demand. The Switch Resource Management (SRM) feature allows the hardware table size to be changed so that switch functions can be optimized based on the use of the switch. There are 3 modes: IP Mode LAN Mode and L2 VPN Mode which modify the size of the Layer 2 and 3 tables for optimum efficiency.
Security Performance and Availability
The DGS-3630 Series switches provide a complete set of security features including multi-layer Access Control Lists (ACLs) and 802.1X user authentication via TACACS+ and RADIUS. The DGS-3630 switches also offer extensive VLAN support including GVRP and 802.1Q VLAN to enhance security and performance. A robust set of QoS features help ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network. The D-Link Safeguard Engine increases the switches' reliability serviceability and availability by preventing malicious flooding traffic caused by worms or virus attacks.
D-Link Green Technology
The DGS-3630 Series switches feature D-Link Green technology which includes a power-saving mode smart fan feature reduced heat dissipation and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner and ensures that LEDs are shut off when not needed. The smart fan3 feature allows for the built-in fans to automatically turn on only at a certain temperature providing continuous reliable and ecofriendly operation of the switch.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-TX
Network Technology
1000Base-LX
Network Technology
10GBase-LR
Network Technology
10GBase-SR
Network Technology
1000Base-SX
Network Technology
10GBase-LRM
Port/Expansion Slot Details
24 x Gigabit Ethernet Network
Port/Expansion Slot Details
4 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details
4 x Gigabit Ethernet Expansion Slot
Power source
Power Supply
Product Model
DGS-3630-28TC
Product Name
28-Port Layer 3 Stackable Managed Gigabit Switch including 4 10GbE Ports
Product Series
DGS-3630
Product Type
Layer 3 Switch
Uplink Port
No
Weight (Approximate)
8.25 lb
Width
17.4"
