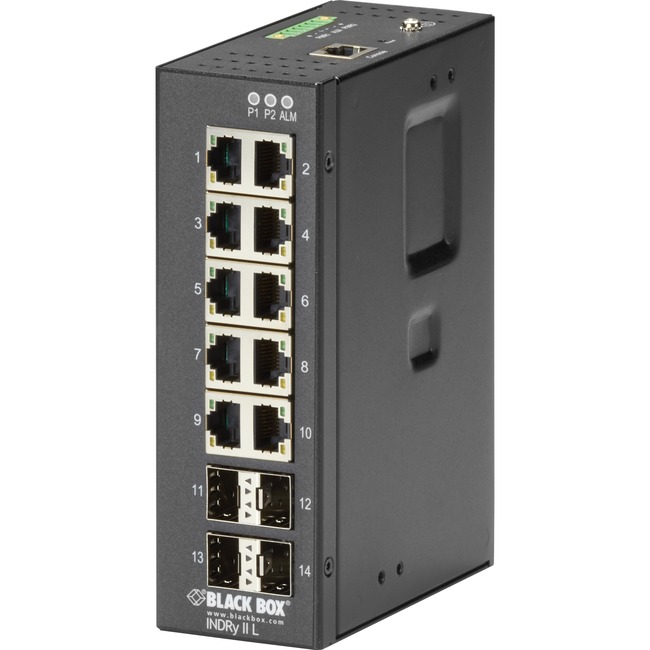

Black Box Ethernet Switch
Black Box Ethernet Switch - 10 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - Modular - 4 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable, Panel-mountable - 1 Year Limited Warranty
| $741.78 | Retail $849.88 |
- Provides ten 10/100/1000-Mbps RJ-45 ports and four multispeed SFP slots.
- Managed switch supports LACP, Spanning Tree, and ring fail-over for redundancy and resiliency.
- Rated for extreme temperatures of -40 to +75° C.
- Dual DC power inputs for redundancy.
- IP30-rated housing is also rated for shock and vibration protection.
- Manage through a Web interface, SNMP, or command-line interface (CLI).
- DIN rail or wall mount.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
138724
Item:
LIG1014A
UPC Code:
520449118352
Our Part #
4AV390
Condition
New
$741.78EA
$849.88
$849.88
Availability
Only 68 Left In Stock
You may be also interested
Product description
Black Box Ethernet Switch - 10 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - Modular - 4 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable, Panel-mountable - 1 Year Limited Warranty
10 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - Modular - 4 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable, Panel-mountable - 1 Year Limited Warranty
Specifications
Number of Total Expansion Slots
4
Total Number of Network Ports
10
UPC Alternates
520449118352 650361333639 818239860919 822088079569 842024703969
UPC Alternates
520449118352 650361333639 818239860919 822088079569
Brand Name
Black Box
Country of origin
Taiwan
Depth
2.4"
Environmental Certification
WEEE
Environmental Certification
RoHS
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP (mini-GBIC)
Form factor
DIN Rail Mountable
Form factor
Panel-mountable
Form factor
Wall Mountable
Height
6"
Layer Supported
2
Limited Warranty
1 Year
Manageable
Yes
Manufacturer
Black Box Corporation
Manufacturer Part Number
LIG1014A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Multiple ports for flexibility.
This switch has ten 10/10/1000-Mbps RJ-45 copper ports and four multi-speed SFP ports for uplinks. It offers full wire-speed forwarding rates auto-negotiates for network speeds and Auto-MDI/MDI-X eliminating the need for crossover cables.
Maximize uptime.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. And you'll eliminate the need to send IT technicians on site - thus lowering costs.
The switch is fully manageable through SNMP a Web browser Telnet or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.
The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging MAC-based trunking IP-multicast IGMP snooping rapid spanning tree for redundancy. Plus it has 802.1x port-based authentication for security.
Fast failovers.
The switch gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP) Link Aggregation Control Protocol and a ring protocol. It offers a 20 millisecond or less failover.
Extreme applications.
Encased in an IP30-rated metal case this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:
- Security and surveillance particularly to backhaul IP security camera data.
- Military applications especially in ships and other vehicles.
- Factory automation for controlling machinery PLCs motor drives sensors counters inspection cameras and packaging equipment.
- Oil and gas fields or remote equipment monitoring and control.
- Building automation for controlling HVAC and lighting systems.
Installation options.
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-12 MDR-40-24 MDR-40-48 and SDR-240-48) are sold separately. The switch also includes a serial cable (RJ-45/DB9) for the console connection.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-T
Network Technology
1000Base-X
Networking standards
IEEE 802.1x
Networking standards
IEEE 802.1Q
Package Contents
- Ehernet Switch
- (1) Cable RJ-45 to DB9
- Din-rail mounting material
Port/Expansion Slot Details
4 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details
10 x Gigabit Ethernet Network
Power source
Power Supply
Product Type
Ethernet Switch
Weight (Approximate)
11.20 oz
Width
4.3"
