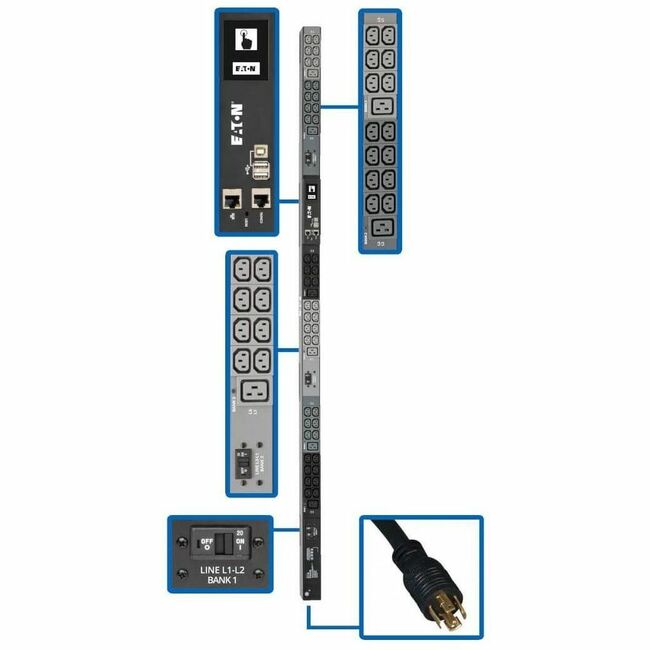

Tripp Lite 3-Phase PDU Monitored 10kW 200/208/240V 42 C13; 6 C19; L21-30P
Tripp Lite 3-Phase PDU Monitored 10kW 200/208/240V 42 C13; 6 C19; L21-30P - Monitored - NEMA L21-30P - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
| $1,200.65 | Retail $1,785.88 |
- 10kW 200/208/240V 3-phase 0U monitored PDU
- 48 outlets-42 C13, 6 C19-with plug-lock inserts
- Built-in LX Platform interface for remote access 24/7
- NEMA L21-30P input with 10 ft. AC power cord
- Touchscreen LCD with mobile access option via QR code
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
139936
Item:
PDU3EVN10L2130B
UPC Code:
037332209429
Our Part #
2KL100
Condition
New
$1,200.65EA
$1,785.88
$1,785.88
Availability
Only 15 Left In Stock
Product description
Tripp Lite 3-Phase PDU Monitored 10kW 200/208/240V 42 C13; 6 C19; L21-30P - Monitored - NEMA L21-30P - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Monitored - NEMA L21-30P - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Specifications
Mounting Orientation
Vertical
PDU Type
Monitored
Phase
Three Phase
Power Rating (Watt)
10 kW
Receptacle Detail
42 x IEC 60320 C13
Receptacle Detail
6 x IEC 60320 C19
UPC Alternates
037332209429
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
2.9"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
70"
Input current
24 A
Input voltage
230 V AC
Limited Warranty
2 Year
Management
Protocols:
- IPv4
- IPv6
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- telnet
- SSH
- FTP
- DHCP
- NTP
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDU3EVN10L2130B
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The PDU3EVN10L2130B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage frequency and load levels via built-in network connection. By reducing the frequency of on-site visits these advanced remote capabilities can save you money and reduce downtime.
Recommended for your IT or industrial application the monitored PDU features 48 outlets-42 C13 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.
Recommended for your IT or industrial application the monitored PDU features 48 outlets-42 C13 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.
Mount Type
Rack-mountable
Output voltage
240 V AC
Output voltage
200 V AC
Output voltage
208 V AC
Package Contents
- PDU3EVN10L2130B 48-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- 48 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
Plug/Connector Type
NEMA L21-30P
Product Name
PDU3EVN10L2130B 48-Outlet PDU
Product Type
PDU
Protection Type
Overload Protection
Rack Height
0U
Receptacle Type
IEC 60320 C19
Receptacle Type
IEC 60320 C13
Weight (Approximate)
15.69 lb
Width
2.2"
