Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter
Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - Rail-mountable
| $373.63 | Retail $477.00 |
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Extended operating temperature (-40°C to 75°C)
- Dual, Redundant, 12-48 VDC Power Inputs
- Reverse Polarity Power Input Protection
- Overload Current Protection
- DIN Rail Mounting Brackets Included
- Class 1, Div 2 Certified
- Jumbo Frame: 9K bytes
By:
Transition Networks
Manufacturer:
Transition Networks, Inc
Product ID:
140680
Item:
SISTG1013-211-LRT-B
UPC Code:
648177042340
Our Part #
6KG727
Condition
New
$373.63EA
$477.00
$477.00
Availability
Only 3 Left In Stock
Product description
Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - Rail-mountable
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - Rail-mountable
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Standard
50/125 µm
Fiber Optic Cable Standard
62.5/125 µm
Fiber Optic Wavelength
850 nm
Maximum Distance Supported
1804.46 ft
UPC Alternates
648177042340
Brand Name
Transition Networks
Country of origin
Taiwan
Depth
3.9"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Rail-mountable
Height
4.3"
Limited Warranty
5 Year
Manufacturer
Transition Networks Inc
Manufacturer Part Number
SISTG1013-211-LRT-B
Manufacturer Website Address
http://www.transition.com
Marketing Information

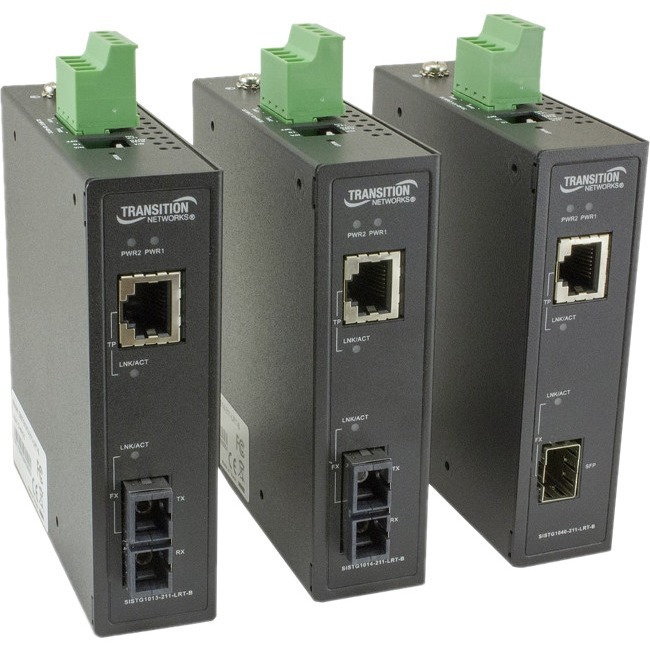

The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas manufacturing and the chemical industry.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas manufacturing and the chemical industry.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
1000Base-SX
Network Technology
10/100/1000Base-T
Number of Network (RJ-45) Ports
1
Package Contents
- Unmanaged Hardened Gigabit Ethernet Media Converter
- DIN Rail Mounting Brackets
Power source
Power Supply
Product Name
Unmanaged Hardened Gigabit Ethernet Media Converter
Product Series
SISTG10xx-211-LRT-B
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
15.52 oz
Width
1.2"
