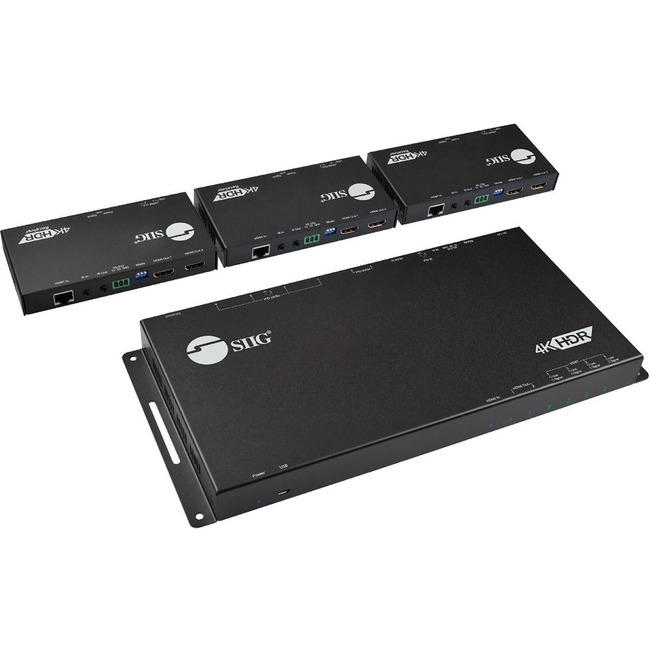

SIIG HDMI 2.0 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling

Extends HDMI signals to four HDMI Receivers over CAT5e/6 cable up to 198ft with resolution auto-scaling IR control and Power over Cable support

• Extends Full HD 1080p HDMI signals up to 198ft (60m) and 4K@60Hz signals up to 114ft (35m) over CAT5e/6 cable
• Supports 4K@60Hz YUV 4:4:4 8-bit 4K@60Hz HDR YUV 4:2:0 10-bit
• Supports PoC (Power over Cable) technology which allows the transmitter and receiver unit(s) to be powered by only one power supply connected to the transmitter unit
• Transmitter unit supports two HDMI loop-outs for addition local display connections
• Receiver unit supports 2 HDMI outputs for more display connections
  • Note: Additional Receiver (part# CE-H24P11-S1) sold separately.
• Supports EDID management for increased device compatibility
• Supports resolution auto-down scaling from 4K to 1080p allowing displays of different capabilities to be connected simultaneously
• Pure unaltered uncompressed 7.1ch digital HDMI over CAT5e/6 cable transmission offers the best audio signal
• DTS-HD Master Audio and Dolby TrueHD high bit rate audio for true sound compatibility
• Supports full bi-directional IR pass-through signal from 30KHz to 56KHz frequency

More from the Manufacturer

• 1 x Transmitter
• 3 x Receivers
• 1 x Power Adapter DC 12V / 7.5A
• 1 x IR Blaster
• 3 x IR Receiver
• 4 x Terminal block
• Mounting kit (Screw kit:4x20 mm 8pcs Mounting ears 6pcs Screw kit: 3x4 mm 12pcs)
• 4 x Rubber Pad
• User Manual
