D-Link DGS-1100-05PDV2 Ethernet Switch
D-Link DGS-1100-05PDV2 Ethernet Switch - 5 Ports - Manageable - 2 Layer Supported - 24.08 W Power Consumption - 18 W PoE Budget - Twisted Pair - PoE Ports - Desktop - Lifetime Limited Warranty
| $66.62 | Retail $84.99 |
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Management capability provides control over setup and configuration of your network
- The desktop installation makes it ideal for deployments outside the wiring closet
By:
D-Link
Manufacturer:
D-Link Systems, Inc
Product ID:
143489
Item:
DGS-1100-05PDV2
UPC Code:
790069453298
Our Part #
43222612
Condition
New
$66.62EA
$84.99
$84.99
Availability
Only 400 Left In Stock
Product description
D-Link DGS-1100-05PDV2 Ethernet Switch - 5 Ports - Manageable - 2 Layer Supported - 24.08 W Power Consumption - 18 W PoE Budget - Twisted Pair - PoE Ports - Desktop - Lifetime Limited Warranty
5 Ports - Manageable - 2 Layer Supported - 24.08 W Power Consumption - 18 W PoE Budget - Twisted Pair - PoE Ports - Desktop - Lifetime Limited Warranty
Specifications
PoE Budget
18 W
Total Number of Network Ports
5
UPC Alternates
790069453298
Brand Name
D-Link
Country of origin
Taiwan
Depth
3.8"
Ethernet Technology
Gigabit Ethernet
Form factor
Desktop
Height
1.1"
Layer Supported
2
Limited Warranty
Lifetime
Manageable
Yes
Manufacturer
D-Link Systems Inc
Manufacturer Part Number
DGS-1100-05PDV2
Manufacturer Website Address
http://www.dlink.com
Marketing Information

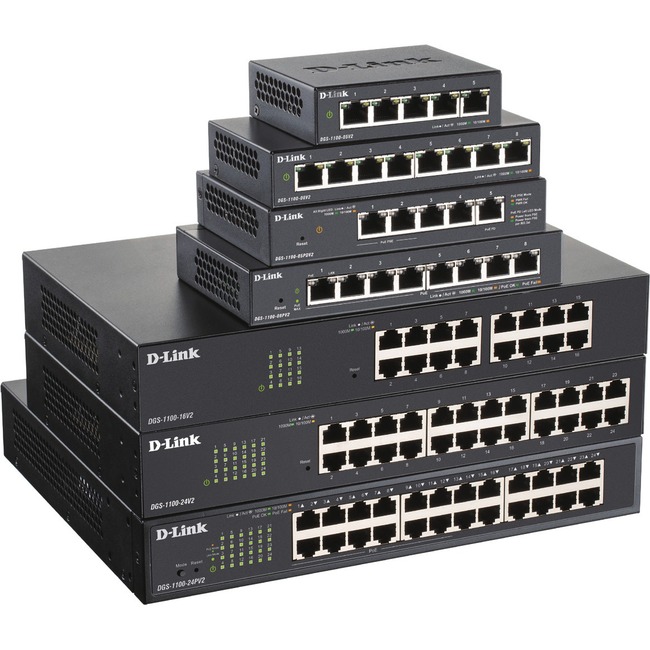

The DGS-1100 Series is a range of switches designed to meet the requirements of small medium and enterprise businesses. Support for multiple PoE standards make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features a range of diagnostic and troubleshooting tools and energy efficient technologies provide a flexible solution to meet your networking requirements.
D-Link Green/Power Saving Performance
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) the DGS-1100 Series consumes less energy by cutting down on power consumption when port utilization is low. By deploying compatible devices users can cut operating costs and even cut down on additional cooling equipment helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green technology that helps save energy automatically. The switches monitor the link status of every port and significantly reduce power consumption of the interface when there is no link or network traffic detected.
Easy to Deploy
The DGS-1100 Series supports an intuitive client-based utility (D-Link Network Assistant) and a web-based management interface. The client-based D-Link Network Assistant (DNA) discovers all D-Link Smart Managed Switches within the same Layer 2 network segment making the initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices including password changes and firmware upgrades. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser allowing the switches to be controlled from any PC that is connected to the network.
Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.
Advanced Features
The DGS-1100 Series is equipped with advanced security features such as Static MAC Storm Control and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports helping administrators limit network access to authorized devices only. Storm Control monitors broadcast multicast or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the load of L3 multicast routers and save bandwidth in network throughput.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables recognize the cable type and detect cable errors.
D-Link Green/Power Saving Performance
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) the DGS-1100 Series consumes less energy by cutting down on power consumption when port utilization is low. By deploying compatible devices users can cut operating costs and even cut down on additional cooling equipment helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green technology that helps save energy automatically. The switches monitor the link status of every port and significantly reduce power consumption of the interface when there is no link or network traffic detected.
Easy to Deploy
The DGS-1100 Series supports an intuitive client-based utility (D-Link Network Assistant) and a web-based management interface. The client-based D-Link Network Assistant (DNA) discovers all D-Link Smart Managed Switches within the same Layer 2 network segment making the initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices including password changes and firmware upgrades. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser allowing the switches to be controlled from any PC that is connected to the network.
Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.
Advanced Features
The DGS-1100 Series is equipped with advanced security features such as Static MAC Storm Control and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports helping administrators limit network access to authorized devices only. Storm Control monitors broadcast multicast or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the load of L3 multicast routers and save bandwidth in network throughput.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables recognize the cable type and detect cable errors.
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-T
Port/Expansion Slot Details
3 x Gigabit Ethernet Network
Port/Expansion Slot Details
2 x Gigabit Ethernet PoE
Power consumption
24.08 W
Power source
PoE
Power source
Power Supply
Product Name
DGS-1100-05PDV2 Ethernet Switch
Product Series
DGS-1100
Product Type
Ethernet Switch
Weight (Approximate)
13.40 oz
Width
5.9"
