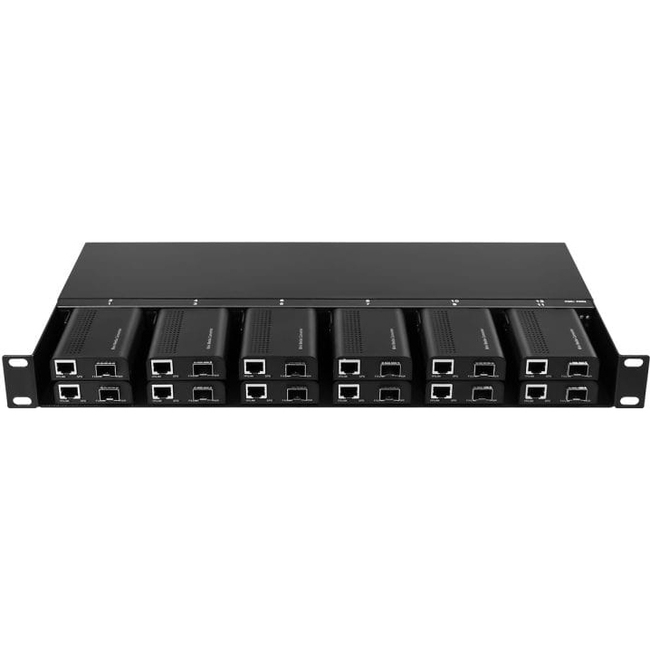

Axiom Mini-Media Converter Rack Mount Chassis - 1U, 12 Slots, Dual AC 220v
Axiom Mini-Media Converter Rack Mount Chassis - 1U, 12 Slots, Dual AC 220v - 1 x Number of Power Supplies Installed - 12 Slot - 1U - Rack-mountable
| $246.13 |
By:
Axiom
Manufacturer:
Axiom Memory Solutions
Product ID:
143833
Item:
MCR0-CH-1U12-AX
UPC Code:
840177840517
Our Part #
43201602
Condition
New
$246.13EA
Availability
Only 13 Left In Stock
You may be also interested
Product description
Axiom Mini-Media Converter Rack Mount Chassis - 1U, 12 Slots, Dual AC 220v - 1 x Number of Power Supplies Installed - 12 Slot - 1U - Rack-mountable
1 x Number of Power Supplies Installed - 12 Slot - 1U - Rack-mountable
Specifications
Compatible Rack Unit
1U
Number of Power Supplies Installed
1
Power Supply Installed
Yes
UPC Alternates
840177840517
Brand Name
Axiom
Certifications & Standards
- FCC Class A
- CE Mark
Compatibility
Axiom Mini-Media Converter series:
- MC01
- MC03
- MC08
- MC10
Depth
9.6"
Form factor
Rack-mountable
Height
1.8"
Input voltage
230 V AC
Input voltage
120 V AC
Limited Warranty
1 Year
Manufacturer
Axiom Memory Solutions
Manufacturer Part Number
MCR0-CH-1U12-AX
Manufacturer Website Address
http://www.axiommemory.com
Marketing Information
The Axiom 1U Rack Mount 12 Slot Media Converter Chassis is specifically designed to accommodate our MC01 MC03 MC08 & MC10 Series Mini-Media Converter line up. The 1U rack mount system is designed for space saving by providing power with a single internal universal power supply that eliminates the need for the multiple power connections which is usually associated associated with multiple converter installations. It provides hot-swap capability so individual units can be replaced as your network needs change.
- Media Converter Capacity: 12-slots in front for silde-in-modules
- LED Indicators: Power Fan A Fan B (On: operating; Off: device or fan fail)
- Power: Universal input 100~240V 50/60Hz 3.0~1.5A Redundant Power Supply
- Temperature Rating: 0~50 degrees C (operating) -20~70 degrees C (storage)
- Humidity: 0~90% (non-condensing)
- Enclosure: Metal
- Dimensions: 440mm�245mm�45mm
- Weight: 3.2kg
- Compliance: FCC Class A CE-mark
Product Name
Mini-Media Converter Rack Mount Chassis - 1U 12 Slots Dual AC 220v
Product Type
Media Converter Chassis
Total Number of Expansion Slots
12
Weight (Approximate)
7.05 lb
Width
17.3"
