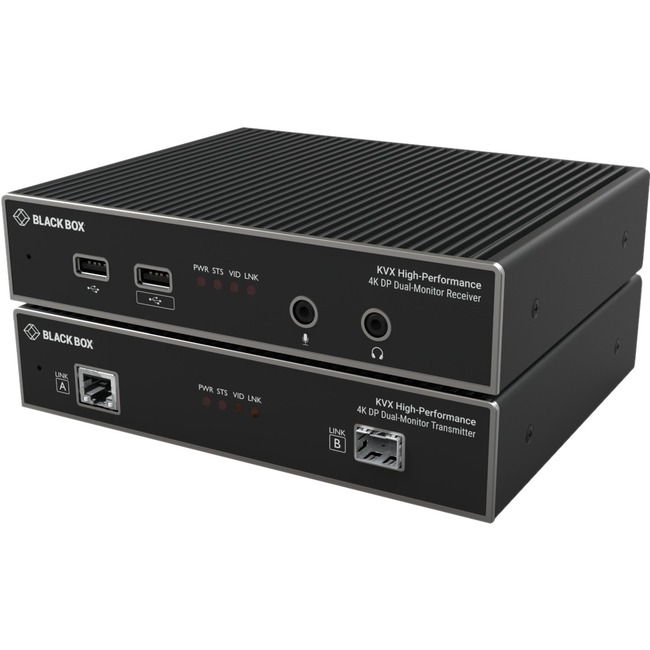

Black Box KVXHP-200 KVM Extender
Black Box KVXHP-200 KVM Extender - 2 Computer(s) - 2 Local User(s) - 13123.36 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - DisplayPort - 12 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant
| $2,199.75 | Retail $2,663.44 |
- Dual-Head video at 4096x2160 @ 60Hz using 8 bits per color, 4:4:4 chroma sampling
- Point to point extension up to 328 ft (100m) over CATx or 2.5 miles (4km) over fiber cable
- CATx or Fiber flexibility
- High-Speed Transparent USB 2.0 supports Mass storage devices and isochronous devices such as webcams and audio headsets
- Intelligent EDID management reduces monitor compatibility issues
- Digital / Analog audio
- Single and Quad Monitor KVX-HP options also available
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
144497
Item:
KVXHP-200
Our Part #
9HR434
Condition
New
$2,199.75EA
$2,663.44
$2,663.44
Availability
Only 1 Left In Stock
Product description
Black Box KVXHP-200 KVM Extender - 2 Computer(s) - 2 Local User(s) - 13123.36 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - DisplayPort - 12 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant
2 Computer(s) - 2 Local User(s) - 13123.36 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - DisplayPort - 12 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant
Specifications
Receiver Weight (Approximate)
2.73 lb
Transmitter Depth
5.83"
Transmitter Height
1.54"
Transmitter Weight (Approximate)
2.84 lb
Transmitter Width
7.32"
Brand Name
Black Box
Connectivity technology
Wired
Environmental Certification
WEEE
Environmental Certification
RoHS
Form factor
Rack-mountable
Graphic Mode
4K
Input voltage
12 V DC
Manufacturer
Black Box Corporation
Manufacturer Part Number
KVXHP-200
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
True Plug and play High-Performance point-to-point KVM extension. Using DisplayPort 1.2 KVXHP-200 supports dual monitor setups with up to 4096x2160 @ 60Hz using 8 bits per color 4:4:4 chroma sampling and High-Speed Transparent USB 2.0 - all transmitted over a single cable. Whether your requirements are CATx or fiber KVXHP is equipped to handle both interfaces providing a single solution for all use cases.
19" Rackmount Option
The optional rackmount tray (KVXHP-RMK) holds up to two KVX-HP extender units for quick mounting into any 19" rack and leaves enough space to hold the power supplies and cable management. To concentrate multiple KVM extensions in your rack use our Central Power Hub solution (ACR1000-CPH8R-R2/ ACR1000-CPH16R-R2) for a clutter-free space-saving installation in 1RU. The hub powers up to eight or sixteen 12VDC devices replacing multiple single power supplies.
Single-head models for two monitor connections or quad-head models with support for four DisplayPort monitors are also available.
Maximum Operating Distance
13123.36 ft
Maximum Video Resolution
4096 x 2160
Microphone
Yes
Number of Network (RJ-45) Ports
2
Number of USB Ports
6
Package Contents
- 1 x Transmitter
- 1 x Receiver
- 2 x 12V 1.5A Power Supply
- 2 x DisplayPort cables M/M 1.8m (6 ft.)
- 2 x USB Type A to B cables M/M 1.8m (6 ft.)
- 1 x 3.5mm audio cable MM 3m (10 ft.)
- 2 x US Power Cords
Product Name
KVXHP-200 KVM Extender
Product Series
KVXHP
Product Type
KVM Extender
Rack Height
1U
