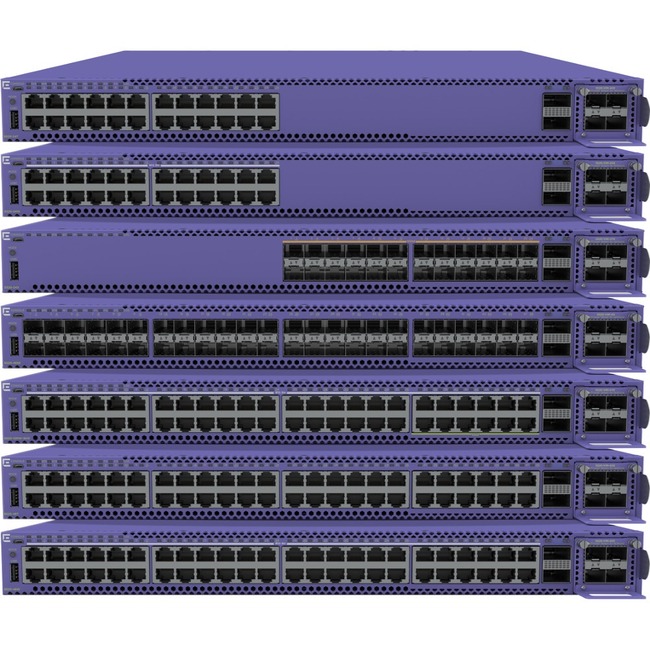

Extreme Networks 5520 24-port Switch
Extreme Networks 5520 24-port Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - 142 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable - Lifetime Limited Warranty
| $4,629.14 | Retail $6,014.00 |
- High-performance feature-rich fixed-form switches for enterprise edge and aggregation deployments
- Range of 24 and 48-port models with Gigabit, Multi-Gigabit and 10 Gigabit Ethernet connectivity
- Universal hardware platform providing end-to-end network segmentation and advanced policy with a choice of ExtremeSwitching operating systems
- 10Gb and 25Gb modular uplink options
- 30W, 60W and 90W PoE support (IEEE 802.3at/IEEE 802.3bt)
- Up to 8-unit 160Gb stacking
- MACsec on access and modular uplink ports for secure link encryption
- Layer 2/Layer 3 Fabric services for secure network segmentation and automation
- Extended Edge Switching controlling bridge in support of V300/V400 edge devices
- Non-blocking, wire-speed design
By:
Extreme Networks
Manufacturer:
Extreme Networks, Inc
Product ID:
145745
Item:
5520-24T
UPC Code:
644728046966
Our Part #
43222612
Condition
New
$4,629.14EA
$6,014.00
$6,014.00
Availability
Only 5 Left In Stock
Product description
Extreme Networks 5520 24-port Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - 142 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable - Lifetime Limited Warranty
24 Ports - Manageable - 3 Layer Supported - Modular - 142 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable - Lifetime Limited Warranty
Specifications
Number of Power Supplies Supported
2
Total Number of Network Ports
24
UPC Alternates
644728046966
Additional Information
1-year XIQ Pilot Subscription
Brand Name
Extreme Networks
Environmental Certification
China RoHS
Environmental Certification
REACH
Environmental Certification
EU RoHS
Environmental Certification
EU WEEE
Environmental Certification
Taiwan RoHS
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
100 Gigabit Ethernet
Expansion Slot Type
Versatile Interface Module (VIM)
Expansion Slot Type
QSFP28
Form factor
Rack-mountable
Height
1.7"
Layer Supported
3
Limited Warranty
Lifetime
Manageable
Yes
Manufacturer
Extreme Networks Inc
Manufacturer Part Number
5520-24T
Manufacturer Website Address
http://www.extremenetworks.com
Marketing Information
The ExtremeSwitching 5520 Series is a family of high-performance feature-rich edge and aggregation switches designed for the nextgeneration digital enterprise. The 5520 Series universal hardware provides end-to-end secure network segmentation in addition to advanced policy capabilities and offers a user-selectable choice of Extreme's flagship switch operating systems. This makes the 5520 a uniquely flexible platform that can be deployed across a range of edge aggregation and wiring-closet environments.
The 5520 Series includes 24- and 48-port 1 Gigabit models 1/2.5/5 Gigabit multi-rate models as well as a 24-port 10 Gigabit model. The family also offers 30/60/90W PoE making it an ideal wired backend for wireless APs or in support of next-gen powered Ethernet devices such as digital signage pan-tilt-zoom cameras smart lighting or point-of-sale terminals. The 5520 further supports 10G and 25G modular uplinks for flexible linkage to other switches or devices over a range of media.
Built to Suit Your Business Needs
Extreme Elements are the building blocks that allow you to tailor your network to your specific business environment goals and objectives. They enable the creation of an Autonomous Network that delivers the positive experiences and business outcomes most important to your organization.
Combining architecture automation and artificial intelligence Extreme Elements enable you to ensure that your users get what they need - when and where they need it. Providing these superior user experiences is as simple as mixing and matching the right elements.
Universal Hardware Platform
The 5520 Series as a universal hardware platform comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the ExtremeXOS or VSP Operating System (VOSS) persona can be enabled on 5520 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected the 5520 assumes the features/capabilities of the selected OS.
The 5520 persona activation can be done manually at bootup including via the system CLI. Or it can be automated by pre-provisioning the 5520 persona in ExtremeCloud IQ. When first booted the 5520 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 5520 system- eliminating the need for manual selection.
Ethernet Fabric Services
The 5520 supports a variety of Ethernet Fabric services including Extreme's Fabric Connect when running VOSS and Extreme's IP Fabric when running ExtremeXOS. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme's Fabric Connect and IP Fabric on the 5520 enable the creation of virtualized networks that automate network operations simplify network provisioning and enhance security all while reducing the strain on network and IT personnel.
Extended Edge Switching
The 5520 models support Extended Edge Switching an innovative solution that simplifies the deployment and operation of edge switches. As the controlling bridge of an Extended Edge Switching solution the 5520 when running EXOS can be combined with Extreme's V300 and V400 Series access devices to create a single logical switch architecture. The result is a simplified operational model that reduces costs.
The 5520 Series includes 24- and 48-port 1 Gigabit models 1/2.5/5 Gigabit multi-rate models as well as a 24-port 10 Gigabit model. The family also offers 30/60/90W PoE making it an ideal wired backend for wireless APs or in support of next-gen powered Ethernet devices such as digital signage pan-tilt-zoom cameras smart lighting or point-of-sale terminals. The 5520 further supports 10G and 25G modular uplinks for flexible linkage to other switches or devices over a range of media.
Built to Suit Your Business Needs
Extreme Elements are the building blocks that allow you to tailor your network to your specific business environment goals and objectives. They enable the creation of an Autonomous Network that delivers the positive experiences and business outcomes most important to your organization.
Combining architecture automation and artificial intelligence Extreme Elements enable you to ensure that your users get what they need - when and where they need it. Providing these superior user experiences is as simple as mixing and matching the right elements.
Universal Hardware Platform
The 5520 Series as a universal hardware platform comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the ExtremeXOS or VSP Operating System (VOSS) persona can be enabled on 5520 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected the 5520 assumes the features/capabilities of the selected OS.
The 5520 persona activation can be done manually at bootup including via the system CLI. Or it can be automated by pre-provisioning the 5520 persona in ExtremeCloud IQ. When first booted the 5520 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 5520 system- eliminating the need for manual selection.
Ethernet Fabric Services
The 5520 supports a variety of Ethernet Fabric services including Extreme's Fabric Connect when running VOSS and Extreme's IP Fabric when running ExtremeXOS. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme's Fabric Connect and IP Fabric on the 5520 enable the creation of virtualized networks that automate network operations simplify network provisioning and enhance security all while reducing the strain on network and IT personnel.
Extended Edge Switching
The 5520 models support Extended Edge Switching an innovative solution that simplifies the deployment and operation of edge switches. As the controlling bridge of an Extended Edge Switching solution the 5520 when running EXOS can be combined with Extreme's V300 and V400 Series access devices to create a single logical switch architecture. The result is a simplified operational model that reduces costs.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-T
Network Technology
100GBase-X
Package Contents
- 5520 24-port Switch
- 2 x Fan Modules
- Rackmount Kit
Port/Expansion Slot Details
24 x Gigabit Ethernet Network
Port/Expansion Slot Details
2 x Stack
Power consumption
142 W
Power source
Power Supply
Product Family
ExtremeSwitching 5520
Product Line
ExtremeSwitching
Product Name
5520 24-port Switch
Product Series
5520
Product Type
Ethernet Switch
Weight (Approximate)
12.20 lb
Width
17.4"
