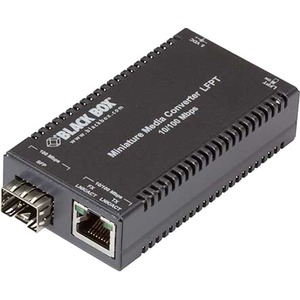

Black Box MultiPower Miniature Transceiver/Media Converter
Black Box MultiPower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - Fast Ethernet - 10/100Base-T, 100Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC Adapter
| $230.99 | Retail $249.95 |
- Compliant to EN62368
- Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
- Compact size; measures just 0.8"H x 1.8"W x 3.4"D.
- Powered by a universal AC power supply or the optional rackmountable PowerTray.
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
- Converters may also be powered from a USB port using the LHC021A USB power cable.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
145769
Item:
LHC301A-R4
Our Part #
43201553
Condition
New
$230.99EA
$249.95
$249.95
Availability
Only 8 Left In Stock
Product description
Black Box MultiPower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - Fast Ethernet - 10/100Base-T, 100Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC Adapter
1 x Network (RJ-45) - Fast Ethernet - 10/100Base-T, 100Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC Adapter
Specifications
Number of Total Expansion Slots
1
Brand Name
Black Box
Country of origin
Taiwan
Depth
3.4"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Expansion Slot Type
SFP
Height
0.8"
Limited Warranty
2 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LHC301A-R4
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
- Autonegotiates for speed and duplex.
- A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting.
- Powered by the included universal AC power supply a PC's USB port (with optional USB Power Adapter Cable) or the optional rackmountable PowerTray.
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
This Black Box MultiPower Miniature Media Converter makes it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable then connect a fiber cable to an SFP installed in the converter's opposite side. The SFP slot enables you to adapt the converter to any 100-Mbps fiber interface. Best of all you can tuck this tiny converter unobtrusively behind your PC. The converter not only links 10- and 100-Mbps segments to fiber cabling it also works as a data rate converter performing 10/100 autonegotiation on the twisted-pair port. For extra versatility you can power the Miniature Media Converter one of three ways: through the external AC power supply included with each converter through the optional USB Power Adapter Cable (LHC021A) or through the optional rackmount PowerTray (LHC018A-AC-R2).
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100Base-T
Network Technology
100Base-X
Package Contents
- MultiPower Miniature Transceiver/Media Converter
- 100-240-VAC 50-60-Hz Adapter
Power source
AC Adapter
Product Line
Multipower Miniature
Product Name
MultiPower Miniature Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Width
1.8"
