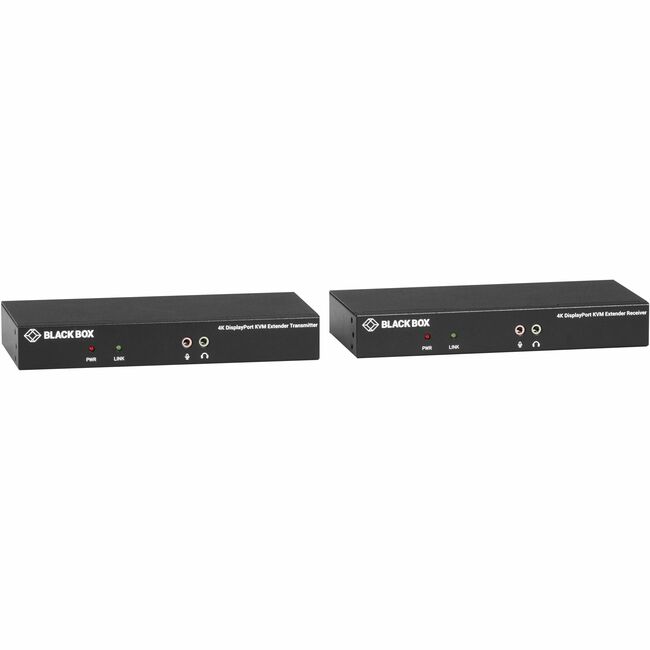

Black Box KVXLCDPF-100 KVM Console/Extender

Black Box KVXLCDPF-100 KVM Console/Extender - 1 Computer(s) - 1 Local User(s) - 65616.80 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - Rack-mountable - 1U - For PC - TAA Compliant
$687.20Retail $779.00
  • Supports displayport local video output
  • Remote access up to 100 meter
  • Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz
  • Transparent USB 2.0 extension supports HID devices, mass storage devices
  • Supports RS-232 peripheral (serial) devices
  • Bi-directional audio via speaker/mic connection
  • Local video port loopback for monitoring on transmitter (TX) unit
  • Supports EDID pass-through
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
146073
Item:
KVXLCDPF-100-SFPBUN3
UPC Code:
822088148234
Our Part #
43211603
Condition
New
$687.20EA
$779.00
Availability Only 4 Left In Stock
Great Deals Everyday

You may be also interested

Product description

Black Box KVXLCDPF-100 KVM Console/Extender - 1 Computer(s) - 1 Local User(s) - 65616.80 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - Rack-mountable - 1U - For PC - TAA Compliant
1 Computer(s) - 1 Local User(s) - 65616.80 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - Rack-mountable - 1U - For PC - TAA Compliant

Specifications

UPC Alternates
822088148234
Brand Name
Black Box
Connectivity technology
Wired
Country of origin
Taiwan
Device type
KVM Extender
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Rack-mountable
Graphic Mode
4K
Limited Warranty
2 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
KVXLCDPF-100-SFPBUN3
Manufacturer Website Address
http://www.blackbox.com
Marketing Information

The KVX Single Head KVM Extender lets you control a server or computer over a single-mode or multimode cable at distances of up to 10 km (depending on the SFP used fiber type and fiber bandwidth). This extender also supports 4K video. PC connection cables are included with this product making it a solution that is ready to use right out of the box.

You can use your existing keyboard mouse and monitor to access both the server room and your office computer saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers medical facilities industrial warehouses and extended workstations.

KVX Single Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console making it an efficient and flexible solution.

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX Series Extenders are TAA compliant and backed by free lifetime technical support.

KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or customers who require control of systems that are physically inaccessible placed in secure locations or in otherwise harsh environments. This can include command and control operations server management distribution monitoring or utilities process control centers.

Maximum Operating Distance
65616.80 ft
Maximum Video Resolution
3840 x 2160
Number of Computers Supported
1
Number of USB Ports
5
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x 5V 2A Power Supplies (includes US EU UK plug types)
  • 1 x DisplayPort Cable M/M 1.2m (4 ft.)
  • 1 x USB Type A to B Cable M/M 1.8m (6 ft.)
  • 1 x 3.5mm Dual Audio / Mic Cable M/M 1.8m (6 ft.)
  • 2 x Deskmounting brackets (with screws)
Platform Supported
PC
Product Model
KVXLCDPF-100
Product Name
KVXLCDPF-100 KVM Console/Extender
Product Series
KVX
Product Type
KVM Console/Extender
Rack Height
1U
