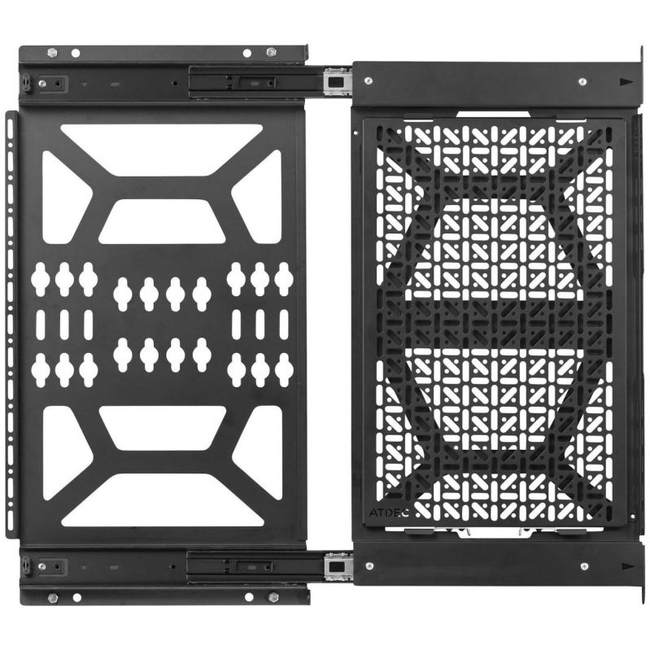

Atdec media storage sliding panel - Universal mounting hole pattern - For media and networking devices
Atdec media storage sliding panel - Universal mounting hole pattern - For media and networking devices - Generous mounting area - Extended sliding distance - Removable mounting tray - Left or right side installation - All mounting hardware included
| $217.87 |
- Ideal for web conferencing equipment and content distribution devices
- Generous 273 x 420mm mounting area
- Extended sliding distance
- Removable mounting tray
- Left or right side installation
- Security features
- Material: Steel
- Warranty: 10 years
By:
Atdec
Manufacturer:
Atdec Pty Ltd
Product ID:
146266
Item:
AD-AC-PS
UPC Code:
881493018983
Our Part #
31162313
Condition
New
$217.87EA
Availability
Only 478 Left In Stock
Product description
Atdec media storage sliding panel - Universal mounting hole pattern - For media and networking devices - Generous mounting area - Extended sliding distance - Removable mounting tray - Left or right side installation - All mounting hardware included
Generous mounting area - Extended sliding distance - Removable mounting tray - Left or right side installation - All mounting hardware included
Specifications
Product Material
Steel
UPC Alternates
881493018976 881493018983
Brand Name
Atdec
Compatibility
Crestron Flex UC-C100-Z Video Conference System
Country of origin
China
Device Supported
Content Distribution Device
Device Supported
Video Conferencing System
Device Supported
Digital Signage Display
Device Supported
Media Storage
Device Supported
Network Device
Features
Quick Release Mechanism
Features
Anti-theft
Features
Cable Management
Features
Pre-drilled Mounting Hole
Features
Sliding Panel
Features
Padlock
Limited Warranty
10 Year
Manufacturer
Atdec Pty Ltd
Manufacturer Part Number
AD-AC-PS
Manufacturer Website Address
http://www.atdec.com
Marketing Information
This sliding storage panel is designed to accommodate equipment behind the display. Its generous storage area with universal mounting hole pattern accommodates a variety of media and networking devices on a single panel. The sliding mechanism assists with system installation and maintenance. The slider extends 13.8" for easy access and cabling. All components can be mounted on a removable mounting tray and then hooked onto the slider using the quick release/attachment mechanism. The sliding panel can be attached directly to the wall or to Atdec's ADB extrusions on either side of the display. Anti-theft features include a 0.23" padlock hole and security screws.
Important: The media storage panel's depth when attached to the wall is 0.7". When choosing a compatible display bracket and mounting arrangement consider the depth of the equipment attached to the sliding panel to allow for free sliding movement.
The total minimum distance from the wall to the back of the display is a sum of the following dimensions:
B (minimum) = A + C + D
A: depth of the tallest device attached to the sliding panel
C: depth of the sliding panel (0.7")
D: clearance of 0.1" recommended to allow for variances
Maximum Load Capacity
17.50 lb
Package Contents
- AD-AC-PS Media Storage Sliding Panel
- Mounting Hardware
- Mounting Tray
Product color
Black
Product Name
AD-AC-PS Media Storage Sliding Panel
Product Type
Mounting Panel
