Black Box USB-C Docking Station - 4K, Dual
Black Box USB-C Docking Station - 4K, Dual - 230 W - USB 3.2 (Gen 2) Type C - 2 Displays Supported - 4K - 4096 x 2160 - 7 x USB Ports - 2 x USB 2.0 - 4 x USB Type-A Ports - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - 2 x DisplayPorts - DisplayPort - Black - Wired - Ethernet - Windows 10, Mac OS X 10.12 Sierra, Windows 8.1, Windows 7, Mac OS X 10.11 El Capitan, Mac OS X 10.10 Yosemite
| $296.58 | Retail $353.00 |
- Supports DP resolution up to 4K x 2K at 60 Hz and HDMI resolution up to 4K x 2K at 60 Hz (source needs to support DP1.4, otherwise, 4K 30 Hz only); also backward-compatible with HD 1920 x 1080
- Includes 2 USB C host ports and cables
- 2 super-speed USB 3.2 Gen2x1 Type A ports and 1 super-speed USB 3.2 Gen2x1Type C port for peripherals support data transfer speeds up to 10 Gbps
- High-speed USB supports charging up to 200 W (100 W per USB-C host port)
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
146846
Item:
USBC2000-4KDUAL
UPC Code:
822088153719
Our Part #
08TG30
Condition
New
$296.58EA
$353.00
$353.00
Availability
Only 107 Left In Stock
Product description
Black Box USB-C Docking Station - 4K, Dual - 230 W - USB 3.2 (Gen 2) Type C - 2 Displays Supported - 4K - 4096 x 2160 - 7 x USB Ports - 2 x USB 2.0 - 4 x USB Type-A Ports - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - 2 x DisplayPorts - DisplayPort - Black - Wired - Ethernet - Windows 10, Mac OS X 10.12 Sierra, Windows 8.1, Windows 7, Mac OS X 10.11 El Capitan, Mac OS X 10.10 Yosemite
230 W - USB 3.2 (Gen 2) Type C - 2 Displays Supported - 4K - 4096 x 2160 - 7 x USB Ports - 2 x USB 2.0 - 4 x USB Type-A Ports - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - 2 x DisplayPorts - DisplayPort - Black - Wired - Ethernet - Windows 10, Mac OS X 10.12 Sierra, Windows 8.1, Windows 7, Mac OS X 10.11 El Capitan, Mac OS X 10.10 Yosemite
Specifications
DisplayPort Version
1.4
Maximum Power Supply Wattage
230 W
Number of HDMI Ports
1
Number of USB Type-A Ports
4
Screen Mode Supported
4K
Supported Resolutions
4096 x 2160
UPC Alternates
822088153719
USB Type-C Detail
3 x USB 3.2 Gen 2 Type C Female
Brand Name
Black Box
Connectivity technology
Wired
Country of origin
Taiwan
Depth
1.30"
Environmental Certification
WEEE
Environmentally Friendly
Yes
Ethernet Technology
Ethernet
Height
3.50"
Host interface
USB 3.2 (Gen 2) Type C
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
USBC2000-4KDUAL
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
The Black Box USB-C Docking Station - 4K Dual (USBC2000-4KDUAL) with PD/Alt/KM sharing for laptops merges cutting-edge technology and high-quality hardware with innovative design elements.
Connect two 4K DisplayPort monitors and one 4K HDMI monitor while sharing one keyboard and mouse with two MacBook Pro or Windows laptop hosts with this multi-port adapter.
The docking station includes two USB C host ports and cables one audio-in and one audio-out port for the switched host one 4K HDMI and two 4K DisplayPort video ports a LAN port two super-speed USB 3.2 Gen2x1 Type A ports and one super-speed USB 3.2 Gen2x1 Type C port for peripherals one keyboard port and one mouse port.
Supports Dual Host and Screen-Sharing
With the KVM sharing features add on the docking station allows the user to switch the display (HDMI/DP/DP) monitors/USB-peripherals via multi-switch mode with a dual host (desktop/laptop/tablet) at the same time.
With the KM sharing feature the USBC200-4KDUAL enables the user to move the mouse/touchpad cursor between different hosts.
Super-Fast and Backward-Compatible
The USB-C docking station supports USB 3.2 Gen2x1 (10 Gbps) data transmission. Even better it's backward-compatible with USB 3.0 and 2.0 so you aren't limited by legacy hardware.
Includes USB Host Charging Ports
USB-C host 1 and host 2 ports can charge device 1 and device 2 at the same time. Each device draws 100 W power for a total of 200 W maximum for both host ports.
Number of USB 2.0 Ports
2
Operating System Supported
Mac OS X 10.11 El Capitan
Operating System Supported
Mac OS X 10.10 Yosemite
Operating System Supported
Windows 7
Operating System Supported
Windows 10
Operating System Supported
Windows 8.1
Operating System Supported
Mac OS X 10.12 Sierra

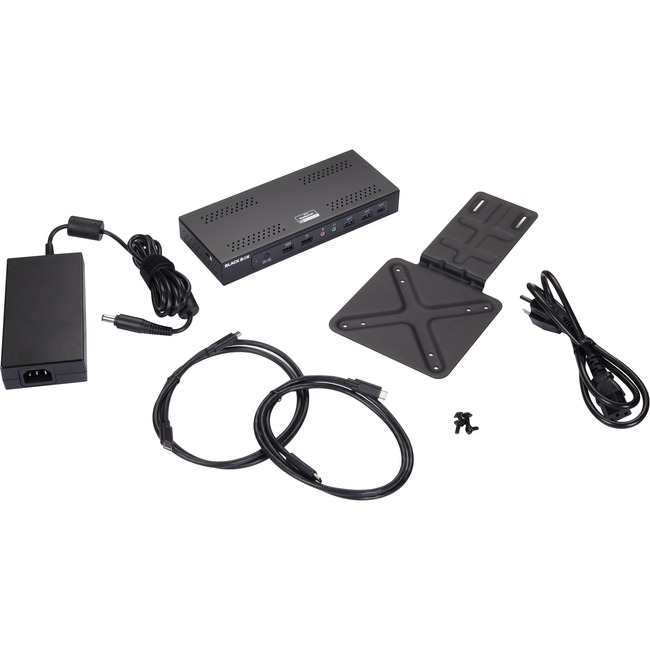

Package Contents
- USB-C Docking Station - 4K Dual
- 1 x USB-C Triple Video Docking Station W/PD
- 2 x USB-C to C Cable
- 1 x Power Adapter 230 W (20 V/11.5 A)
- 1 x Docking Station VESA Mount
Power source type
Power Supply
Product color
Black
Product Name
USB-C Docking Station - 4K Dual
Product Type
Docking Station
Total Number of USB Ports
7
Weight (Approximate)
1.50 lb
Width
8.60"
