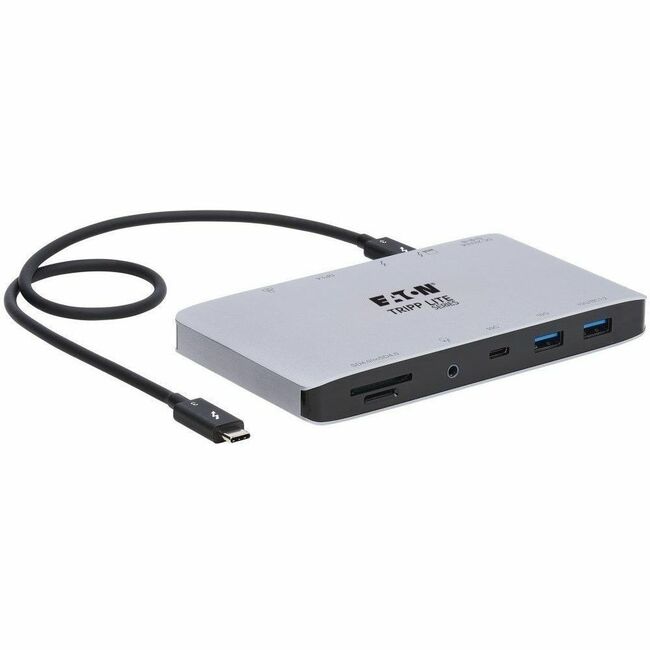

Tripp Lite Thunderbolt 3 Dock with USB-C Compatibility, Dual Display - 8K DisplayPort, USB 3.2 Gen 2 10G, USB-A/USB-C Hub, GbE, International Plug Adapters
Tripp Lite Thunderbolt 3 Dock with USB-C Compatibility, Dual Display - 8K DisplayPort, USB 3.2 Gen 2 10G, USB-A/USB-C Hub, GbE, International Plug Adapters - for Notebook/Monitor - Yes - microSD, SD - 120 W - Thunderbolt 3 - 2 Displays Supported - 8K, 4K, 5K - 7680 x 4320, 1280 x 720, 1920 x 1080, 3840 x 2160, 5120 x 2880 - 2 x USB 3.0 - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - DisplayPort - Black, Gray - Thunderbolt - 2 x Thunderbolt 3 Ports - Wired - Gigabit Et
| $208.92 | Retail $480.00 |
- Connects 2 displays at the same time for multitasking and increasing productivity
- Transmits 8K video (7680 x 4320) @ 30 Hz to a single display for professional users
- Can operate with Thunderbolt 3 or USB-C Multi-Function DisplayPort (MFDP) host
- Supports Thunderbolt 3 speeds up to 40 Gbps between compatible devices
- USB 3.2 Gen 2 data ports allow connection of flash drives and other peripherals
- 3-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
146898
Item:
MTB3-DOCK-03INT
UPC Code:
037332273024
Our Part #
00HT55
Condition
New
$208.92EA
$480.00
$480.00
Availability
Only 183 Left In Stock
You may be also interested
Product description
Tripp Lite Thunderbolt 3 Dock with USB-C Compatibility, Dual Display - 8K DisplayPort, USB 3.2 Gen 2 10G, USB-A/USB-C Hub, GbE, International Plug Adapters - for Notebook/Monitor - Yes - microSD, SD - 120 W - Thunderbolt 3 - 2 Displays Supported - 8K, 4K, 5K - 7680 x 4320, 1280 x 720, 1920 x 1080, 3840 x 2160, 5120 x 2880 - 2 x USB 3.0 - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - DisplayPort - Black, Gray - Thunderbolt - 2 x Thunderbolt 3 Ports - Wired - Gigabit Et
for Notebook/Monitor - Yes - microSD, SD - 120 W - Thunderbolt 3 - 2 Displays Supported - 8K, 4K, 5K - 7680 x 4320, 1280 x 720, 1920 x 1080, 3840 x 2160, 5120 x 2880 - 2 x USB 3.0 - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - DisplayPort - Black, Gray - Thunderbolt - 2 x Thunderbolt 3 Ports - Wired - Gigabit Ethernet - Windows, macOS
Specifications
DisplayPort Version
1.4
Maximum Power Supply Wattage
120 W
Memory Card Supported
microSD
Memory Card Supported
SD
Number of RJ-45 Ports
1
Screen Mode Supported
4K
Screen Mode Supported
8K
Screen Mode Supported
5K
Supported Resolutions
3840 x 2160
Supported Resolutions
5120 x 2880
Supported Resolutions
1920 x 1080
Supported Resolutions
1280 x 720
Supported Resolutions
7680 x 4320
UPC Alternates
037332273024
Brand compatibility
Apple
Brand Name
Tripp Lite
Compatibility
MacBook Pro or Windows Laptop
Connectivity technology
Wired
Country of origin
Vietnam
Depth
3.15"
Device Supported
Notebook/Monitor
Environmental Certification
WEEE
Environmental Certification
REACH
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Height
0.69"
Host interface
Thunderbolt 3
Limited Warranty
3 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
MTB3-DOCK-03INT
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Thunderbolt 3 Dock Turns Your MacBook Pro into a 10-Port 8K Workstation
This Thunderbolt 3 docking station dramatically expands the potential of your MacBook Pro or Windows laptop by adding 10 ports to its Thunderbolt 3 or USB-C MFDP port. Not only does the MTB3-DOCK-03INT allow you to transmit 8K video to one display or 4K video to two displays you can also add USB peripherals record a podcast connect to a Gigabit Ethernet network charge your laptop and more all at the same time.
Supports DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the included Thunderbolt 3 cable to a source device that supports DisplayPort Alt Mode you can output 4K video and digital audio to a compatible monitor television or projector without installing special software drivers.
Thunderbolt 3 Supports Blisteringly Fast 40 Gbps Data Transfer Speeds
The included Thunderbolt 3 cable supports bidirectional speeds up to 40 Gbps which is eight times faster than USB 3.2 Gen 1 four times faster than Thunderbolt 1 and twice as fast as Thunderbolt 2. With dual 20 Gbps channels moving data both directions at the same time the MTB3-DOCK-03INT is perfectly suited for 4K video streaming and editing on two monitors as well as transferring large RAW video or CAD files. When connected to a host computer's USB-C MFDP port the cable supports 26.2 Gbps speeds.
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays
By connecting the included Thunderbolt 3 cable to a source that supports DisplayPort MST Mode you may connect two displays simultaneously at resolutions of 8K (30 Hz) plus 4K (30 Hz) or both displays at 4K (60 Hz). This allows you to display the same image on both monitors extend your host desktop across both with different windows open on each or combine both into one large display as a video wall.
Transmits Crystal-Clear 8K and 4K Video for Professional Editing and Digital Signage
Both the DisplayPort and Thunderbolt 3 video ports can achieve resolutions up to 8K (7680 x 4320) at 30 Hz when used with a Thunderbolt 3-enabled source computer and Thunderbolt 3 cable. When used with an MFDP-enabled source computer the DisplayPort connector's maximum resolution is 4K (3840 x 2160) at 60 Hz. The Thunderbolt 3 port also allows daisy-chaining up to six Thunderbolt 3 devices including RAID memory and other storage devices.
Number of USB 3.0 Ports
2
Operating System Supported
macOS
Operating System Supported
Windows
Package Contents
- MTB3-DOCK-03INT Docking Station
- Thunderbolt 3 Cable
- External Power Supply
- 4 x International Plug Adapters
- Owner's Manual
Product color
Gray
Product color
Black
Product Name
MTB3-DOCK-03INT Docking Station
Product Type
Docking Station
Weight (Approximate)
3.37 lb
Width
5.83"
