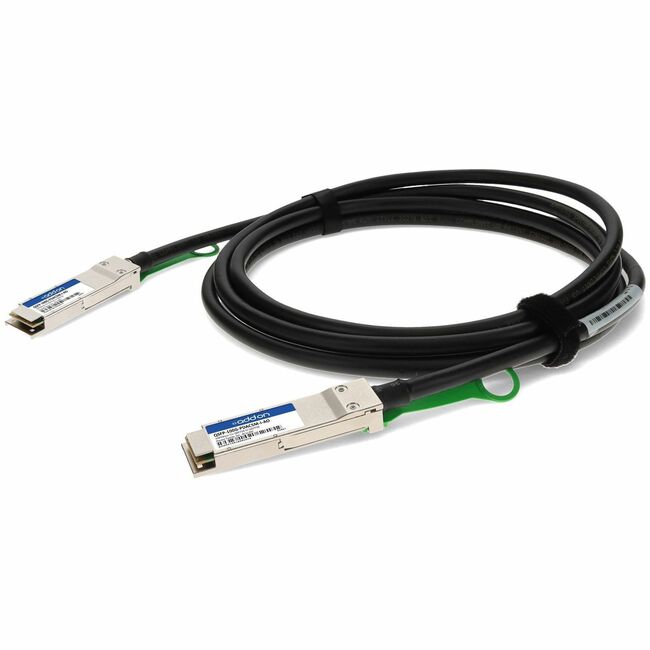

AddOn Twinaxial Network Cable
AddOn Twinaxial Network Cable - 16.40 ft Twinaxial Network Cable for Network Device, Transceiver - 100 Gbit/s - CL2 - 26 AWG - Black - 1 - TAA Compliant
| $240.50 | Retail $380.00 |
- QSFP28 conforms to the Small Form Factor SFF-8436
- 4-Channel Full-Duplex Passive Copper Cable Transceiver
- Support for multi-gigabit data rates: 16Gb/s - 25.78Gb/s (per channel)
- Maximum aggregate data rate: 100Gb/s (4x25.78Gb/s)
- IEEE 802.3bj 100GBase-CR4
- Copper link length up to 5m
- Power Supply: +3.3V
- Low crosstalk
- I2C based two-wire serial interface for EEPROM signature which can be customized
- Industrial Temperature -40 to +85 Celsius
Manufacturer:
AddOn
Product ID:
148401
Item:
QSFP-100G-PDAC5M-I-AO
UPC Code:
195285640956
Our Part #
06KC21
Condition
New
$240.50EA
$380.00
$380.00
Availability
Only 5 Left In Stock
Product description
AddOn Twinaxial Network Cable - 16.40 ft Twinaxial Network Cable for Network Device, Transceiver - 100 Gbit/s - CL2 - 26 AWG - Black - 1 - TAA Compliant
16.40 ft Twinaxial Network Cable for Network Device, Transceiver - 100 Gbit/s - CL2 - 26 AWG - Black - 1 - TAA Compliant
Specifications
Connector Type on First End
SFF-8436 QSFP28 Network
Material Details
Copper - Media
Product Material
PVC
Product Material
Copper
UPC Alternates
195285640956
American Wire Gauge
26 AWG
Cable length
16.40 ft
Cable type
Twinaxial
Data transfer rate
100 Gbit/s
Device Supported
Transceiver
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Far-End Crosstalk (FEXT)
Features
Lead-free
Features
Bendable
Features
Crosstalk Protection
Features
Passive
Jacket Type
CL2
Limited Warranty
Lifetime
Manufacturer
AddOn
Manufacturer Part Number
QSFP-100G-PDAC5M-I-AO
Manufacturer Website Address
http://www.addoncomputer.com
Marketing Information
This is an MSA compliant 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 5m. It has been programmed uniquely serialized and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Packaged Quantity
1
Product color
Black
Product Name
Twinaxial Network Cable
Product Type
Network Cable
