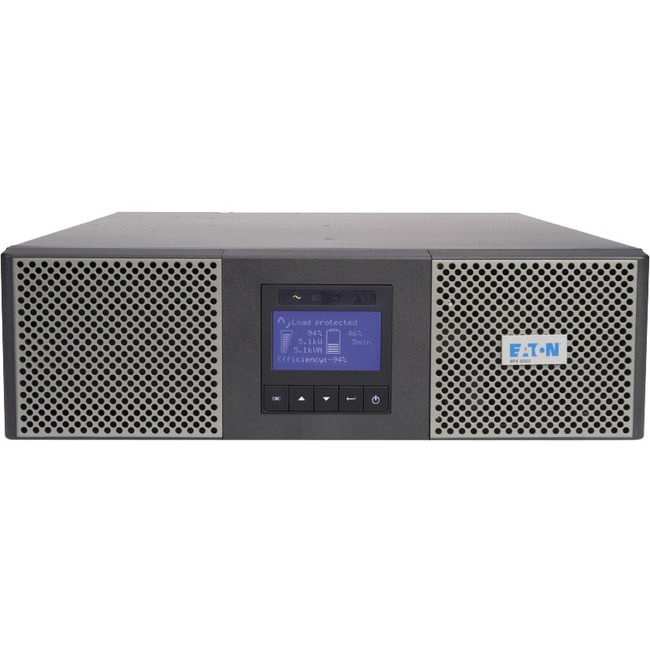

Eaton 9PX 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P, 2 L6-20R, 2 L6-30R, Hardwired Output, 10 ft. Input Cord, Cybersecure Network Card, Extended Run, 3U
Eaton 9PX 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P, 2 L6-20R, 2 L6-30R, Hardwired Output, 10 ft. Input Cord, Cybersecure Network Card, Extended Run, 3U - 3U Rack/Tower - 120 V AC, 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 2 x NEMA L6-20R, 2 x NEMA L6-30R
| $6,085.84 | Retail $8,400.00 |
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Included NETWORK-M2 Gigabit network card enables full remote access and control
- Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
- Interactive LCD interface keeps you updated on critical load information in real time
- Optional extended battery modules allow extended runtime to keep equipment powered
By:
Eaton
Manufacturer:
Eaton Corporation
Product ID:
151635
Item:
9PX6K-10
UPC Code:
138544433074
Our Part #
9U9826
Condition
New
$6,085.84EA
$8,400.00
$8,400.00
Availability
Only 3 Left In Stock
Product description
Eaton 9PX 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P, 2 L6-20R, 2 L6-30R, Hardwired Output, 10 ft. Input Cord, Cybersecure Network Card, Extended Run, 3U - 3U Rack/Tower - 120 V AC, 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 2 x NEMA L6-20R, 2 x NEMA L6-30R
3U Rack/Tower - 120 V AC, 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 2 x NEMA L6-20R, 2 x NEMA L6-30R
Specifications
Load Capacity (VA)
6000 VA
Load Capacity (W)
5400 W
Receptacle Detail
2 x NEMA L6-30R
Receptacle Detail
2 x NEMA L6-20R
Sound Emission (A-Weighted)
45 dB(A)
UPC Alternates
138544433074 743172090522
Waveform Type
Sine Wave
Application/Usage
University
Application/Usage
Edge Computing
Application/Usage
Healthcare
Application/Usage
IT
Application/Usage
Industrial Automation System
Application/Usage
Medical
Battery Characteristics
Sealed
Battery Chemistry
Lead Acid
Brand Name
Eaton
Country of origin
United States
Depth
28.4"
Form factor
Rack/Tower
Height
5.1"
Hot Swappable
Yes
Input frequency
60 Hz
Input voltage
120 V AC
Input voltage
230 V AC
Limited Warranty
2 Year
Load Capacity
6000 VA/5400 W
Manufacturer
Eaton Corporation
Manufacturer Part Number
9PX6K-10
Manufacturer Website Address
http://www.eaton.com
Marketing Information
6kVA/5.4kW/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts brownouts surges and line noise that can damage valuable IT equipment or destroy data. The 9PX6K-10 is superlative power management for education commercial financial or healthcare networking components including Cisco switches and servers. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT sold separately) for hours of extended runtime. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management including load shedding reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2 sold separately) provides a variety of environmental monitoring capabilities including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components Two L6-20R and two L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX6K-10 also supports hardwired output. Rotating LCD Interface Keeps You Informed at a Glance The front-panel LCD provides control settings and critical information to help diagnose any issues. The interface rotates to accommodate both rack-mount and tower configurations and it tilts up to 45 degrees for more comfortable viewing.
Network Management
Network-M2 Card
Output voltage
208 V AC
Output voltage
200 V AC
Output voltage
240 V AC
Output voltage
220 V AC
Package Contents
- 9PX UPS
- Gigabit Network Card (Network-M2)
- 4-post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Connection
- Phillips Head Screw Driver
Plug/Connector Type
NEMA L6-30P
Product color
Black
Product color
Silver
Product Name
9PX UPS
Product Series
9PX
Product Type
Double Conversion Online UPS
Rack Height
3U
Receptacle Type
NEMA L6-30R
Receptacle Type
NEMA L6-20R
Receptacle Type
Hardwired
Status Indicators
Graphical Display
Weight (Approximate)
106 lb
Width
17.3"
