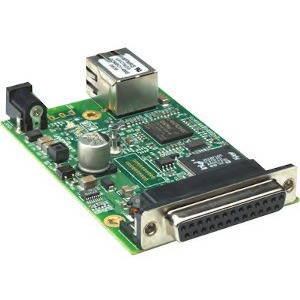

Lantronix UDS1100 Device Server Board Only
Lantronix UDS1100 Device Server Board Only - 256 KB - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet
| $116.76 |
- Quick way to embed network connectivity to access, monitor and control equipment over Ethernet
- RS-232, RS422 or RS-485 serial support
- RJ45 10Base-T/100Base-TX Ethernet Interface
- Configurable via internal web server, Telnet on serial
- 2 MB Flash ROM
- Environmentally-friendly RoHS and WEEE compliant
- Compact design allows for easy integration
By:
Lantronix
Manufacturer:
Lantronix, Inc
Product ID:
152834
Item:
UD110000B-01
UPC Code:
728072150125
Our Part #
3F8931
Condition
New
$116.76EA
Availability
Only 4 Left In Stock
Product description
Lantronix UDS1100 Device Server Board Only - 256 KB - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet
256 KB - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet
Specifications
UPC Alternates
728072150125 783384231030
Brand Name
Lantronix
Environmental Certification
REACH
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Input voltage
9.0 V DC
Input voltage
9 V AC
Input voltage
3.3 V DC
Input voltage
24 V AC
Input voltage
30 V DC
Input Voltage Range
9V DC to 30V DC
Manufacturer
Lantronix Inc
Manufacturer Part Number
UD110000B-01
Manufacturer Website Address
http://www.lantronix.com
Marketing Information
Lantronix UDS1100-B Device Server can quickly and easily network-enable electronic equipment with a serial interface so it can be remotely accessed and controlled over the Net. This flexible product is designed to be integrated with the circuit board of devices like factory machinery security systems heating and ventilation systems lighting control systems and point-of-sale devices.
Building networking capability into a product can be a complex task. The UDS1100-B offers a flexible and easy-toimplement networking solution which enables OEMs to concentrate on their core competency reduce time-tomarket and quickly increase product value.
Extending Communications Across the Globe
Using a method called 'serial tunneling' the UDS1100-B encapsulates serial data into packets and transports it over Ethernet. Serial tunneling can be done in multiple ways:
Using two Device Servers connected by a network virtual serial connections can be extended across a facility or around the world.Implementing Lantronix COM Port Redirector software simplifies the integration process by extending the functionality of (serial) COM port-based Windows® applications. It redirects application data destined for a local serial (COM) port on a PC over the Ethernet network and through the UDS1100-B enabled device. Communications to or from the networked equipment is processed by the PC application as if it were from the local COM port.
OEMs that have control over their application source can also modify their applications to communicate directly to the UDS1100-B.
Easy to Set Up and Use
The built-in web server enables users to access and configure the UDS1100-B from a standard web browser. Web pages enabling the Device Server to be customized for unique applications can be built using Lantronix development tools. On-board Flash memory provides room for future system software upgrades and maintenance-free non-volatile web page storage. The UDS1100-B can be set up locally through its serial port or remotely using Telnet or a web browser. The Lantronix DeviceInstaller Windows-based configuration software simplifies setup and provides an easy way to:
Discover and group devices on the local network
Assign IP & other network specific addresses
Load custom web pages
Enable web-based configuration of the Device Server
Ping or query the attached device(s) over the network
View specific device data files
Upgrade firmware
Modem Replacement
In modem emulation mode the UDS is used to replace dial-up modems. The unit accepts modem AT commands on the serial port. It then establishes a network connection to the end device leveraging network connections and bandwidth to eliminate dedicated modems and phone lines.
Media Type Supported
Twisted Pair
Network Standard
10/100Base-TX
Number of Network (RJ-45) Ports
1
Processor Speed
48 MHz
Product Model
UDS1100-B
Product Name
UDS1100 Device Server Board Only
Product Type
Device Server
Standard Memory
256 KB
