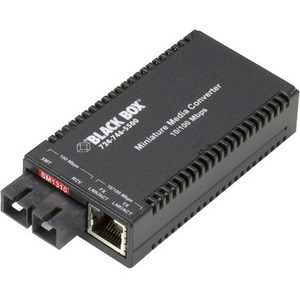

Black Box Multipower Miniature Transceiver/Media Converter

Black Box Multipower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1310 nm Fiber - Fast Ethernet - 10/100Base-X, 10/100Base-T - 24.85 Mile - AC - Rack-mountable
$290.93Retail $326.67
  • Compliant to EN62368
  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
  • Compact size; measures just 0.8"H x 1.8"W x 3.4"D
  • Powered by a universal AC power supply or the optional rackmountable PowerTray
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use
  • Converters may also be powered from a USB port using the LHC021A USB power cable
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
153236
Item:
LHC015A-R4
UPC Code:
822088149033
Our Part #
08GP79
Condition
New
$290.93EA
$326.67
Availability Only 4 Left In Stock
Great Deals Everyday

You may be also interested

Product description

Black Box Multipower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1310 nm Fiber - Fast Ethernet - 10/100Base-X, 10/100Base-T - 24.85 Mile - AC - Rack-mountable
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1310 nm Fiber - Fast Ethernet - 10/100Base-X, 10/100Base-T - 24.85 Mile - AC - Rack-mountable

Specifications

Fiber Mode Supported
Single-mode
Fiber Optic Wavelength
1310 nm
Maximum Distance Supported
24.85 Mile
Network (RJ-45)
Yes
SC Port Type
Duplex
UPC Alternates
822088149033
Brand Name
Black Box
Depth
3.4"
Ethernet Technology
Fast Ethernet
Form factor
Rack-mountable
Height
0.8"
Manufacturer
Black Box Corporation
Manufacturer Part Number
LHC015A-R4
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
  • Autonegotiates for speed and duplex.
  • A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting.
  • Powered by a universal AC power supply a PC's USB port or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable then connect a fiber cable to the converter's other side. That's all there is to it! Best of all you can tuck these tiny converters unobtrusively behind your PC. The converters not only link 10- and 100-Mbps segments to fiber cabling they also work as data rate converters performing 10/100 autonegotiation on the twisted-pair port. Choose from multimode duplex single-mode duplex and single-mode single-strand duplex fiber versions. For extra versatility you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter through the optional USB Power Adapter Cable (LHC021A) which plugs into a PC's USB port and is sold separately or through the optional rackmount PowerTray (LHC018A-AC-R2).
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100Base-X
Network Technology
10/100Base-T
Number of Network (RJ-45) Ports
1
Package Contents
  • Multipower Miniature Transceiver/Media Converter
  • AC Power Supply
Power source
AC
Product Line
Multipower Miniature
Product Name
Multipower Miniature Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Width
1.8"
