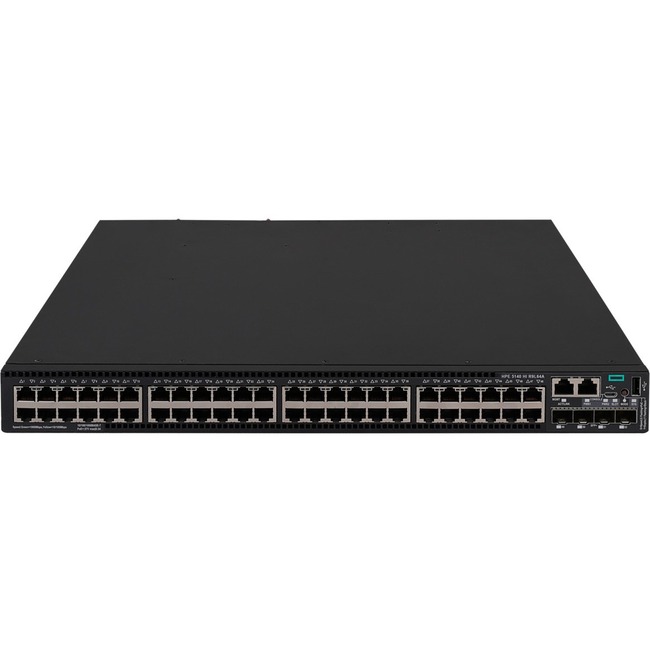

HPE FlexNetwork 5140 48G PoE+ 4SFP+ HI Switch
HPE FlexNetwork 5140 48G PoE+ 4SFP+ HI Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 2 Layer Supported - Modular - 1742 W Power Consumption - 1440 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable, Cabinet Mount
| $9,850.73 | Retail $11,659.00 |
- Effectively reduces downtime with improved network performance
- Features 48 networking ports to establish large network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
By:
HPE
Manufacturer:
Hewlett Packard Enterprise
Product ID:
153397
Item:
R9L64A
UPC Code:
190017587899
Our Part #
05FP49
Condition
New
$9,850.73EA
$11,659.00
$11,659.00
Availability
Only 3 Left In Stock
Product description
HPE FlexNetwork 5140 48G PoE+ 4SFP+ HI Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 2 Layer Supported - Modular - 1742 W Power Consumption - 1440 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable, Cabinet Mount
48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 2 Layer Supported - Modular - 1742 W Power Consumption - 1440 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable, Cabinet Mount
Specifications
Compatible Rack Unit
1U
Number of SFP+ Slots
4
Number of Total Expansion Slots
5
PoE Budget
1440 W
Total Number of Network Ports
48
UPC Alternates
190017587899
Brand Name
HPE
Depth
18.1"
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Expansion Slot Type
SFP+
Form factor
Rack-mountable
Form factor
Cabinet Mount
Frequency
50 Hz
Frequency
60 Hz
Height
1.7"
Input voltage
60 V DC
Input voltage
230 V AC
Input voltage
48 V DC
Input voltage
120 V AC
Layer Supported
2
Manageable
Yes
Manufacturer
Hewlett Packard Enterprise
Manufacturer Part Number
R9L64A
Manufacturer Website Address
http://www.hpe.com
Marketing Information
The HPE FlexNetwork 5140 HI Switch series delivers high availability and scalability at the access layer of medium and large enterprise campus networks.
These switches offer high speed connectivity and flexibility with 10GbE uplinks and combo ports. Support for add-on modules increases capacity or provides additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency QoS features for better reliability iNQA for real time network health performance and capacity visibility hardware based MACsec for end-to-end encrypted security and dual redundant power supplies with Energy Efficient Ethernet for improved power saving.
This Switch Series also includes Smart MC at no additional cost and combined with Intelligent Management Center (IMC) provides embedded network management enhanced network visibility and automation.
FEATURES AND BENEFITS | Highly Resilient and Scalable Access Layer Switches
These switches offer high speed connectivity and flexibility with 10GbE uplinks and combo ports. Support for add-on modules increases capacity or provides additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency QoS features for better reliability iNQA for real time network health performance and capacity visibility hardware based MACsec for end-to-end encrypted security and dual redundant power supplies with Energy Efficient Ethernet for improved power saving.
This Switch Series also includes Smart MC at no additional cost and combined with Intelligent Management Center (IMC) provides embedded network management enhanced network visibility and automation.
FEATURES AND BENEFITS | Highly Resilient and Scalable Access Layer Switches
- The HPE FlexNetwork 5140 HI Switch series uses Intelligent Resilient Framework (IRF) to support virtualization of up to nine physical switches into one logical device for simpler flatter more agile and resilient networks.
- Supports 10GbE uplinks static and RIP routing PoE+ ACLs IPv6 for improved and cost-effective network performance.
- DRNI enables link aggregation from multiple switches to implement device-level link backup for node redundancy. DRNI also provides access to the aggregate bandwidth and simplifies network topology by virtualizing two physical devices into a logical device.
- iNQA helps in measuring network packet loss performance forward reverse and two-way packet loss including lost number of messages and bytes message loss and byte loss rate.
- Dual redundant hot-swappable power supplies maintain a dynamic and highly available network switch delivering up to 1440 Watts of PoE+ for powered cameras phones and wireless Access Points.
Robust Quality of Service (QoS)
- The HPE FlexNetwork 5140 HI Switch series supports advanced classifier based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port VLAN or the entire switch.
- Provides extensive traffic prioritization with strict priority (SP) queuing weighted round robin (WRR) and SP+WRR.
- Broadcast control and limitation of broadcast traffic rate can reduce unwanted network traffic and preserve more bandwidth for critical data.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10GBase-X
Network Technology
10/100/1000Base-T
Networking standards
IEEE 802.1ad
Networking standards
IEEE 802.1w
Networking standards
IEEE 802.1x
Networking standards
IEEE 802.1ae
Networking standards
IEEE 802.3i
Networking standards
IEEE 802.1p
Networking standards
IEEE 802.3af
Networking standards
IEEE 802.3z
Networking standards
IEEE 802.3u
Networking standards
IEEE 802.3ab
Networking standards
IEEE 802.1AX
Networking standards
IEEE 802.1v
Networking standards
IEEE 802.3at
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.3
Networking standards
IEEE 802.1D
Networking standards
IEEE 802.1Q
Networking standards
IEEE 802.1ak
Networking standards
IEEE 802.1s
Networking standards
IEEE 802.3ad
Networking standards
IEEE 802.3ae
Networking standards
IEEE 802.3az
Port/Expansion Slot Details
48 x Gigabit Ethernet PoE+
Port/Expansion Slot Details
4 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details
1 x Expansion Slot
Power consumption
1742 W
Power source
Power Supply
Product Family
FlexNetwork 5140 HI
Product Line
FlexNetwork
Product Model
5140 48G PoE+ 4SFP+ HI
Product Name
FlexNetwork 5140 48G PoE+ 4SFP+ HI Switch
Product Series
5140 HI
Product Type
Ethernet Switch
Weight (Approximate)
21.16 lb
Width
17.3"
