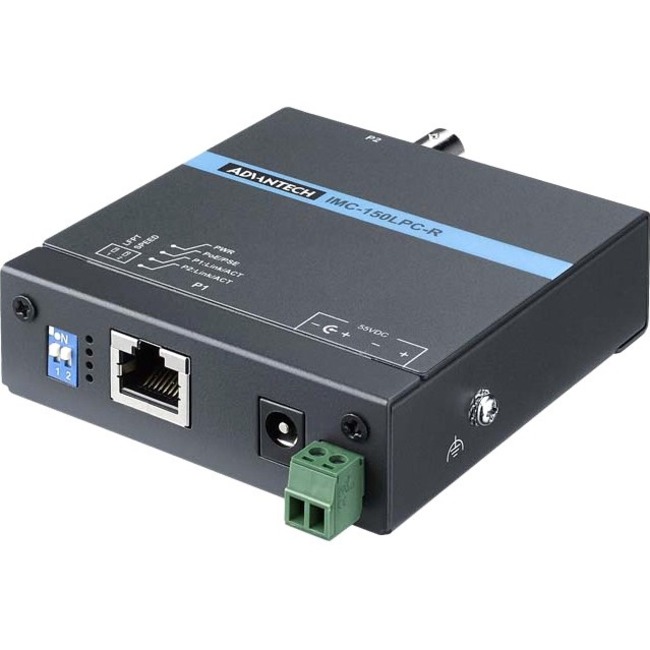

Advantech Hardened PoE Long Reach Ethernet Extender via Coaxial
Advantech Hardened PoE Long Reach Ethernet Extender via Coaxial - 1 x Network (RJ-45) - 984.25 ft Extended Range - Metal
| $212.59 |
- Delivers data up to 300 m (985 ft) at 100Mbps with power via coaxial cable
- Extends power >15.4 watt power with 300 m (985 ft) long coaxial cable
- Railway Trackside EN 50121-4 EMC certified
- Features copper-based Link Fault Pass Through (LFPT)
- Supports Remote PD power ON/OFF by disabling/enabling port via management switch
By:
Advantech
Manufacturer:
Advantech Co., Ltd
Product ID:
154843
Item:
IMC-150LPC-R
Our Part #
08HP79
Condition
New
$212.59EA
Availability
Only 2 Left In Stock
You may be also interested
Product description
Advantech Hardened PoE Long Reach Ethernet Extender via Coaxial - 1 x Network (RJ-45) - 984.25 ft Extended Range - Metal
1 x Network (RJ-45) - 984.25 ft Extended Range - Metal
Specifications
Maximum Extended Range
984.25 ft
Product Material
Metal
Brand Name
Advantech
Certifications & Standards
- LVD EN62368
- CE FCC
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-8
- �EN 50121-4
- �IEC 60068-2-27
- �IEC 60068-2-32
- �IEC 60068-2-6
Depth
1"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
3.1"
Input voltage
57 V DC
Manufacturer
Advantech Co. Ltd
Manufacturer Part Number
IMC-150LPC-R
Manufacturer Website Address
http://www.advantech.com
Marketing Information
Advantech's IMC-150LPC-M and IMC-150LPC-R are designed to be used as a pair. IMC-150LPC-M is designed for use at a central site while IMC 150LPC-R is used at a remote site. Both devices are capable of extending data and power transmission by >15.4W at 300 m (985 ft) using extant coaxial cables. Indeed this solution converts analogue cables into Ethernet connection cables while saving on installation/digitalization costs. IMC-150LPC-M and IMC-150LPC-R further support PD power-off via a management switch to enable users to control the unit remotely. This series is compliant with EN50121-4 standards for trackside installation and is capable of withstanding electromagnetic interference for rail networks.
Maximum Data Transfer Rate
12.50 MB/s
Number of Network (RJ-45) Ports
1
Product Name
Hardened PoE Long Reach Ethernet Extender via Coaxial
Product Type
Network Extender
Width
3.3"
