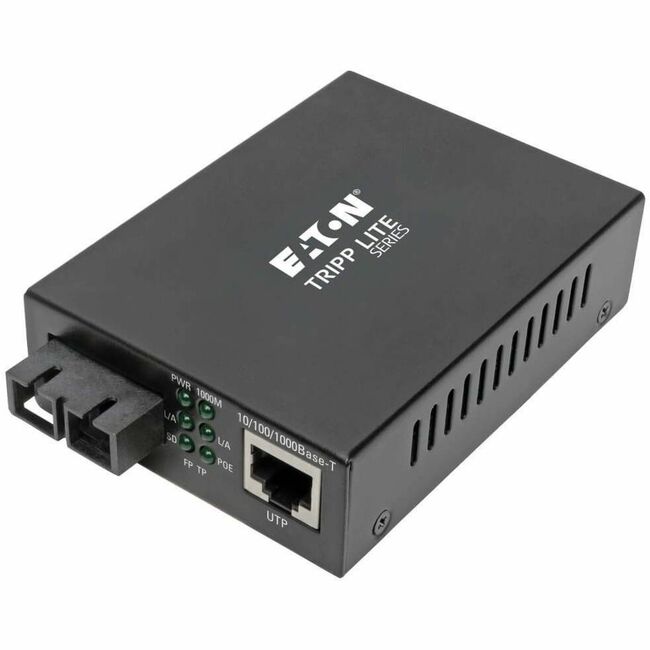

Tripp Lite Gigabit Multimode Fiber to Ethernet Media Converter, POE+, International Power Cables, 10/100/1000 SC, 1310 nm, 2 km (1.2 mi.)
Tripp Lite Gigabit Multimode Fiber to Ethernet Media Converter, POE+, International Power Cables, 10/100/1000 SC, 1310 nm, 2 km (1.2 mi.) - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T - 1.24 Mile - AC Adapter - Pole, Ceiling Mountable
| $1,578.29 |
- Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
- Supports multimode fiber optic cable with SC connectors up to 2 km
- RJ45 jack supports autoMDI/MDIX to bridge various network devices
- LEDs indicate Ethernet and fiber link status at a quick glance
- Link fault pass through lets you quickly identify any faults in the connection
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
156139
Item:
N785-INT-PSCMM2
UPC Code:
037332273161
Our Part #
08JY39
Condition
New
$1,578.29EA
Availability
Only 10333 Left In Stock
Product description
Tripp Lite Gigabit Multimode Fiber to Ethernet Media Converter, POE+, International Power Cables, 10/100/1000 SC, 1310 nm, 2 km (1.2 mi.) - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T - 1.24 Mile - AC Adapter - Pole, Ceiling Mountable
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T - 1.24 Mile - AC Adapter - Pole, Ceiling Mountable
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Wavelength
1310 nm
Maximum Distance Supported
1.24 Mile
SC Port Type
Duplex
UPC Alternates
037332273161
Brand Name
Tripp Lite
Depth
3.7"
Environmental Certification
REACH
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmental Certification
RoHS 3
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Pole
Form factor
Ceiling Mountable
Frequency
50 Hz
Frequency
60 Hz
Height
1"
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N785-INT-PSCMM2
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Extends your copper Gigabit Ethernet network connection up to 550 m over LC fiber optic cable with the addition of PoE.
Features | Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber Cable
This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices such as security cameras VoIP telephones point-of-sale kiosks and access control devices.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of purchasing connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets such as poles or ceilings.
Supports Auto-Sensing of Network Speed and Other Advanced Functions
Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1's advanced features such as automatic network speed sensing full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter's power PoE Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.
Completely Plug-and-Play with No Additional Software Required for Connection
The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America Europe United Kingdom Australia) for connecting to an AC outlet with no computer or other signal source needed.
Features | Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber Cable
This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices such as security cameras VoIP telephones point-of-sale kiosks and access control devices.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of purchasing connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets such as poles or ceilings.
Supports Auto-Sensing of Network Speed and Other Advanced Functions
Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1's advanced features such as automatic network speed sensing full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter's power PoE Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.
Completely Plug-and-Play with No Additional Software Required for Connection
The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America Europe United Kingdom Australia) for connecting to an AC outlet with no computer or other signal source needed.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10/100/1000Base-T
Number of Network (RJ-45) Ports
1
Package Contents
- N785-INT-PSCMM2 Transceiver/Media Converter
- External Power Supply (Input: 100-240V 50/60 Hz 1.5A; Output: 48V 1.25A)
- 4 x International Power Cables (North America Europe U.K. Australia)
- Owner's Manual
Plug/Connector Type
NEMA 5-15P
Plug/Connector Type
CEE 7/16
Plug/Connector Type
BS 1363
Plug/Connector Type
AS3112
Power source
AC Adapter
Product Name
N785-INT-PSCMM2 Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Width
2.8"
