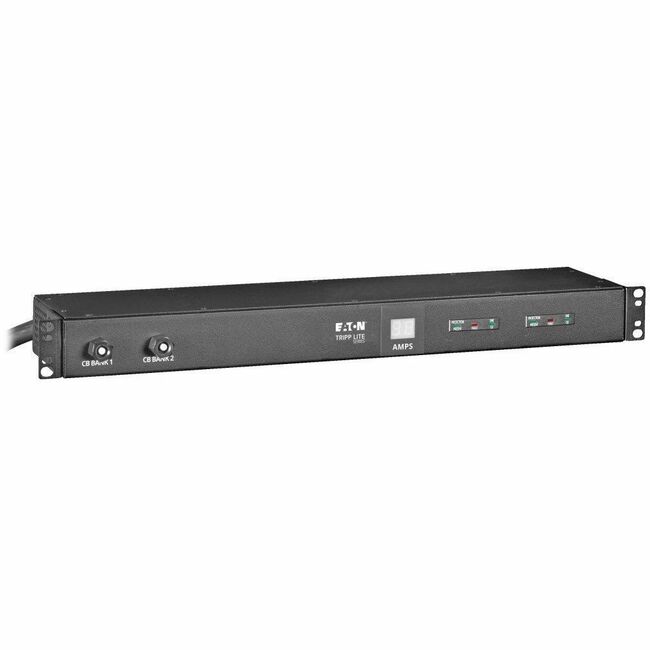

Tripp Lite 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 12 NEMA 5-15/20R Outlets, L5-30P Input, 15 ft. Cord, 1U Rack-Mount
Tripp Lite 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 12 NEMA 5-15/20R Outlets, L5-30P Input, 15 ft. Cord, 1U Rack-Mount - NEMA L5-30P - 12 x NEMA 5-15/20R - 120 V AC - 0U/1U - Horizontal/Vertical - Wall-mountable - Rack
| $789.16 |
- Ideal metered PDU for telecom, security, A/V and other small network applications
- Digital ammeter for on-site load monitoring helps prevent power overloads
- 3840 joules protect your valuable electronics against dangerous surges and spikes
- 12 NEMA 5-15/20R outlets distribute AC power to connected equipment
- Flexible installation options include 1U and 0U rack, under counter and on wall
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
156293
Item:
PDUMH30-ISO
UPC Code:
037332255907
Our Part #
08WA07
Condition
New
$789.16EA
Availability
Only 10057 Left In Stock
Product description
Tripp Lite 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 12 NEMA 5-15/20R Outlets, L5-30P Input, 15 ft. Cord, 1U Rack-Mount - NEMA L5-30P - 12 x NEMA 5-15/20R - 120 V AC - 0U/1U - Horizontal/Vertical - Wall-mountable - Rack
NEMA L5-30P - 12 x NEMA 5-15/20R - 120 V AC - 0U/1U - Horizontal/Vertical - Wall-mountable - Rack
Specifications
Mounting Orientation
Horizontal/Vertical
PDU Type
Metered
Phase
Single Phase
Power Rating (Watt)
2900 W
Receptacle Detail
12 x NEMA 5-15/20R
UPC Alternates
037332255907
Brand Name
Tripp Lite
Depth
1.7"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack
Height
18.9"
Input current
30 A
Input voltage
120 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUMH30-ISO
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Delivers 120V single-phase AC power to multiple loads while also protecting connected equipment from dangerous surges and spikes.
Features | Single-Phase 120V PDU Distributes and Monitors Network-Grade Power to Multiple Loads
This local metered PDU is an ideal unit for telecom security audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments the PDUMH30-ISO provides real-time monitoring of load levels via its built-in digital current metering. A 15- foot (4.6-meter) cord with L5-30P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
The PDUMH30-ISO features 12 NEMA 5-15/20R outlets in two separately breakered load banks. A digital ammeter reports the load for each bank separately so you can balance loads across both built-in 20A breakers. Add the two load-bank current values together to determine total input current. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels can keep your TCO (total cost of ownership) low.
3840 Joules per Load Bank Fight Back Against Unexpected Power Surges
Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression.A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges spikes and line noise. The PDUMH30-ISO covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown which could lead to costly downtime. Circuit breakers protect connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
Features | Single-Phase 120V PDU Distributes and Monitors Network-Grade Power to Multiple Loads
This local metered PDU is an ideal unit for telecom security audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments the PDUMH30-ISO provides real-time monitoring of load levels via its built-in digital current metering. A 15- foot (4.6-meter) cord with L5-30P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
The PDUMH30-ISO features 12 NEMA 5-15/20R outlets in two separately breakered load banks. A digital ammeter reports the load for each bank separately so you can balance loads across both built-in 20A breakers. Add the two load-bank current values together to determine total input current. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels can keep your TCO (total cost of ownership) low.
3840 Joules per Load Bank Fight Back Against Unexpected Power Surges
Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression.A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges spikes and line noise. The PDUMH30-ISO covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown which could lead to costly downtime. Circuit breakers protect connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
Mount Type
Wall-mountable
Package Contents
- PDUMH30-ISO 12-Outlets PDU
- Rack-mounting hardware
- Owner's manual
Plug/Connector Type
NEMA L5-30P
Product color
Black
Product Name
PDUMH30-ISO 12-Outlets PDU
Product Type
PDU
Protection Type
Overload Protection
Protection Type
Surge Protection
Rack Height
0U/1U
Receptacle Type
NEMA 5-15/20R
Weight (Approximate)
8.82 lb
Width
4.8"
