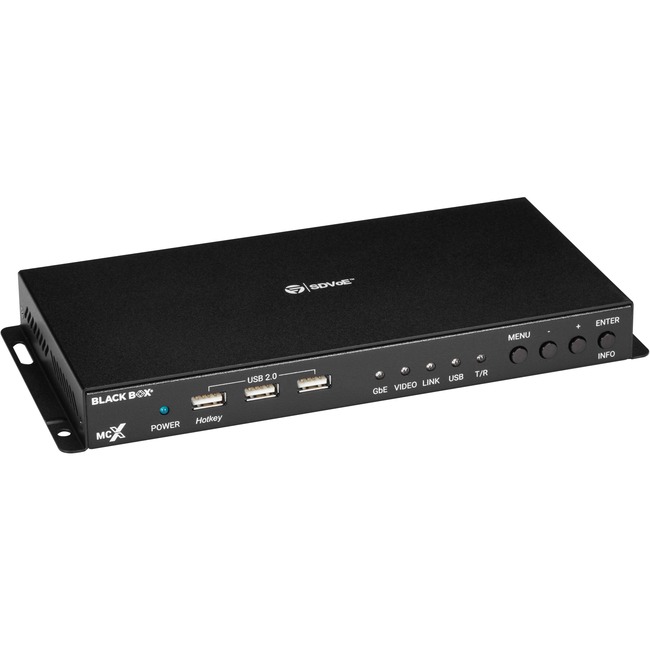

Black Box MCX G2 DisplayPort Copper/Fiber Transcoder

Black Box MCX G2 DisplayPort Copper/Fiber Transcoder - Functions: Video Transcoder, Video Switcher - HDMI, DisplayPort - 4096 x 2160 - DisplayPort - Network (RJ-45) - USB - Audio Line Out - 1 Pack - PC - TAA Compliant
$1,848.32Retail $2,199.99
  • DisplayPort connectivity, 10-Gbps Ethernet either Copper or Fiber, and analog audio
  • IP switchable with zero latency (requires optional MCX Gen2 Controller)
  • Ultra-light compression, lossless for most content
  • Extension up to 30 km over fiber (maximum distance depends on the SFP+ module and type of fiber used)
  • AV, IR, RS-232, USB 2.0 and Ethernet extension
  • Basic configuration via front-panel buttons with an OSD
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
156357
Item:
MCXG2TD11
UPC Code:
822088279068
Our Part #
11PC49
Condition
New
$1,848.32EA
$2,199.99
Availability Only 10 Left In Stock
Great Deals Everyday

You may be also interested

Product description

Black Box MCX G2 DisplayPort Copper/Fiber Transcoder - Functions: Video Transcoder, Video Switcher - HDMI, DisplayPort - 4096 x 2160 - DisplayPort - Network (RJ-45) - USB - Audio Line Out - 1 Pack - PC - TAA Compliant
Functions: Video Transcoder, Video Switcher - HDMI, DisplayPort - 4096 x 2160 - DisplayPort - Network (RJ-45) - USB - Audio Line Out - 1 Pack - PC - TAA Compliant

Specifications

UPC Alternates
822088279068
Additional Warranty Information

2 Year Double Diamond™ Warranty (Standard)

Brand Name
Black Box
Country of origin
Taiwan
Depth
4.6"
Functions
Video Switcher
Height
1"
Host interface
DisplayPort
Host interface
HDMI
Limited Warranty
2 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
MCXG2TD11
Manufacturer Website Address
http://www.blackbox.com
Marketing Information

The TAA-compliant MCX Gen2 DisplayPort Transcoder is an ideal solution for point-to-point secure video conferencing hotel or convention center displays multi-monitor broadcasts distributed video matrix or video wall systems and remote KVM system control. The transcoder brings all the features of MCX Gen2 encoders and decoders into a single solution allowing you to configure it for use as either an encoder or decoder and to utilize it in either your 10G Cat6A copper or SFP+ Fiber networking environment. It features a DisplayPort output to provide 4K60 4:4:4 UHD video via a secure latching connector while allowing for either HDMI or DisplayPort inputs. It provides for a complete A/V over IP Distribution solution transmitting and switching video audio IR RS-232 and USB 2.0 signals throughout your system.

Easy Setup and Management
Connect a transcoder to an AV source (e.g. computer content player) and to a managed 10-GbE network switch. Connect a transcoder to each screen you want to display the content on and connect it to the same switch. Through the user-friendly MCX Gen2 Controller you can configure your system and build and manage a video wall. Transcoders can be connected point-to-point for extension-only applications.

Uncompressed 4K 60 Hz 4:4:4 Video
Extend and distribute uncompressed 4K 60 Hz 4:4:4 video to an unlimited number of displays without sacrificing latency video quality or bandwidth.

Create Ergonomic Workflows for Operators and Configure as Copper or Fiber
Front-panel configuration buttons and On-Screen Display (OSD) streamline daily workflows.

Zero Latency
High-quality IP routable AV extension yields real-time (0.03 milliseconds) glass-to-glass encoding and decoding.

Back USB-B for Encoder or Front 3-Port USB for Decoder
Configure the integrated USB hub of each transcoder for multi-user control room or on-demand installations.

Additional Video Out
When used as an Encoder the local DisplayPort output allows you to view the input source on a separate monitor sample the video on a loop then pass it to the network to compare latency.

Works with Optional MCX Gen2 Controller or Control Software
Combine multiple transcoders with one or more 10-Gigabit fiber Ethernet switches to form a distributed video matrix a multi-viewer system or a video wall.

Maximum resolution
4096 x 2160
Package Contents
  • MCX G2 DisplayPort Copper/Fiber Transcoder
  • 1 x 12-V/3-A DC Power Adapter
  • 1 x Power Cord
  • 1 x IR Emitter
  • 1 x IR Receiver
  • 1 x 3-PIN TERMINAL BLOCK
Packaged Quantity
1
Platform Supported
PC
Power source
DC
Product Name
MCX G2 DisplayPort Copper/Fiber Transcoder
Product Series
MCX Gen2
Product Type
Video Transcoder
USB
Yes
Weight (Approximate)
2.02 lb
Width
9.1"
