C2G Video Extender Transmitter/Receiver

The HDMI HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

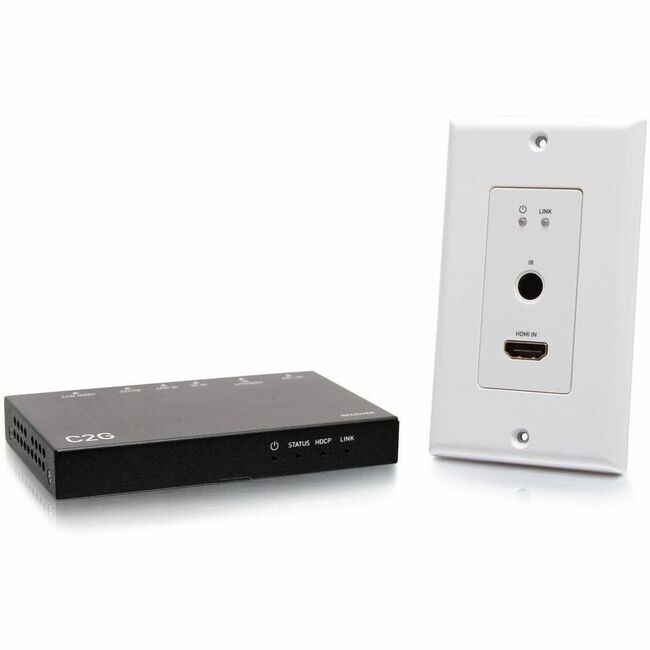

This wall plate transmitter and box receiver extends HDMI over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI up to 130 feet using a Cat6a cable.

This HDBaseT set is HDCP 2.2 compliant ensuring that the source and display connection is secure. Multi-channel audio formats are supported including PCM 2.0/5.1/7.1 Dolby TrueHD Dolby Atmos DTS-HD Master Audio and DTS:X. With bi-directional PoC support one power adapter at either transmitter or receiver side can power both units so no additional power adapter is required allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass through.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

• 1 x Transmitter
• 1 x Receiver
