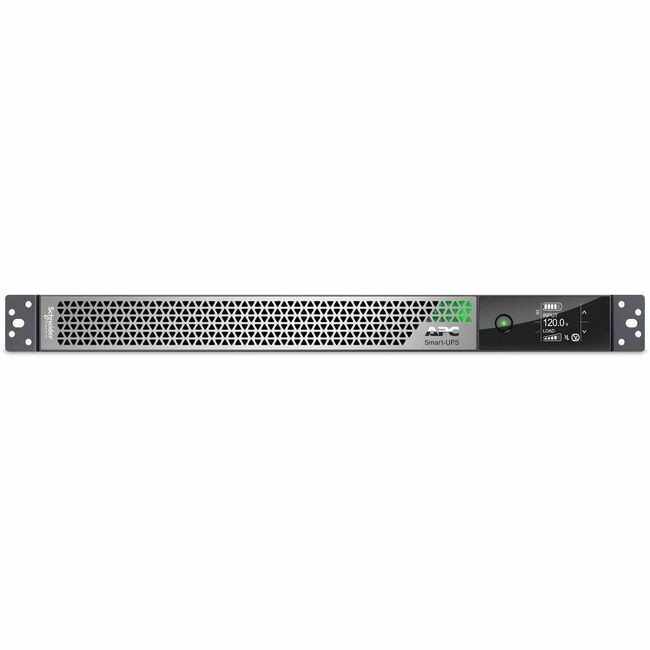

APC by Schneider Electric Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS
APC by Schneider Electric Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS - 1U Rack/Tower/Wall/Ceiling/Desktop Mountable - 1.50 Hour Recharge - 6.05 Minute Stand-by - 120 V AC Input - 120 V AC, 125 V AC Output - Sine Wave - USB - LCD Display - 3 x NEMA 5-20R, 1 x NEMA L5-20R
| $5,203.02 | Retail $6,665.00 |
- Replacement battery (1) is available
- 1U, 2200VA/1950W UPS with 5 mounting styles: rack/tower/wall/ceiling/desk under mount
- Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
- EcoStruxure™ Ready for remote monitoring and management
- Wireless communication capable with optional WiFi Device accessory (AP9834)
- 5-year warranty on UPS and internal batteries
By:
APC by Schneider Electric
Manufacturer:
Schneider Electric Sa
Product ID:
158855
Item:
SRTL2K2RM1UNC
UPC Code:
731304435563
Our Part #
06VH26
Condition
New
$5,203.02EA
$6,665.00
$6,665.00
Availability
Only 56 Left In Stock
Product description
APC by Schneider Electric Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS - 1U Rack/Tower/Wall/Ceiling/Desktop Mountable - 1.50 Hour Recharge - 6.05 Minute Stand-by - 120 V AC Input - 120 V AC, 125 V AC Output - Sine Wave - USB - LCD Display - 3 x NEMA 5-20R, 1 x NEMA L5-20R
1U Rack/Tower/Wall/Ceiling/Desktop Mountable - 1.50 Hour Recharge - 6.05 Minute Stand-by - 120 V AC Input - 120 V AC, 125 V AC Output - Sine Wave - USB - LCD Display - 3 x NEMA 5-20R, 1 x NEMA L5-20R
Specifications
Battery Energy
1123.2 kJ
Load Capacity (VA)
2200 VA
Load Capacity (W)
2200 W
Maximum Operating Elevation
10000 ft
Maximum Storage Elevation
50000 ft
Output Frequency
60 Hz
Receptacle Detail
1 x NEMA L5-20R
Receptacle Detail
3 x NEMA 5-20R
Storage Relative Humidity
0% - 95%
Storage Temperature
5°F (-15°C) - 113°F (45°C)
UPC Alternates
731304435563
Waveform Type
Sine Wave
Alarm
Yes
Application/Usage
Server
Application/Usage
Light Industrial Application
Application/Usage
Voice/Data Network
Application/Usage
Medical Laboratory
Application/Usage
Retail
Backup/Run Time (Full Load)
6.05 Minute
Backup/Run Time (Half Load)
12.65 Minute
Battery Chemistry
Lithium Ion (Li-Ion)
Battery Size
50V
Brand Name
APC by Schneider Electric
Depth
22"
Display
LCD
Environmental Certification
China RoHS
Environmental Certification
Green Premium
Environmental Certification
WEEE
Environmental Certification
EU RoHS
Environmental Certification
REACH
Form factor
Rack/Tower/Wall/Ceiling/Desktop Mountable
Height
1.7"
Input voltage
120 V AC
Limited Warranty
5 Year
Load Capacity
2200 VA/2200 W
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SRTL2K2RM1UNC
Manufacturer Website Address
http://www.schneider-electric.com
Marketing Information
Features
Smart-UPS Ultra provides ultra-high density On-Line power protection with Lithium-ion batteries for servers voice / data networks retail medical labs and light industrial applications. Capable of supporting loads from up to 3kW with up to 2.4X the power density this compact UPS family is consumes half the U space of comparable models. Versatile mounting options include rack and tower orientations and flexible wall ceiling and under desk mounting. The Smart-UPS Ultra comes with a standard internal battery or available external battery packs for scalable runtime options. Smart-UPS Ultra provides remote monitoring and management options via the EcoStruxture Ready Web Portal or Network Management for EcoStruxure IT Software & Services.
Benefits
FeaturesAPC Smart-UPS™ Ultra is Schneider Electric's next-generation UPS. Featuring innovative semiconductor design and lithium-ion batteries Smart-UPS Ultra delivers up to 2.5x more power density in a UPS that is half the size and weight of lead acid equivalents. Smart-UPS Ultra has a standard internal battery and external battery pack options for scalable runtime.Benefits
- Up to 50% smaller and lighter with 2.5x more power
- Auto-rotating display with versatile mounting options: rack tower wall ceiling and desk under-mount
- Smart-UPS Ultra Lithium-ion batteries last 3x longer than Lead Acid VRLA UPS batteries
- Save on Total Cost of Ownership (TCO) with the reduced maintenance costs associated with Lithium-ion UPS
- Remote monitoring and management options: EcoStruxture Ready Web Portal or Network Management for EcoStruxure IT
Applications Smart-UPS Ultra provides ultra-high density On-Line power protection with Lithium-ion batteries for servers voice / data networks retail medical labs and light industrial applications.
Maximum Operating Temperature
104°F (40°C)
Network Management
Network Card
Output voltage
125 V AC
Package Contents
- Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS
- RJ45 Cable
- USB Cable
- Country-Specific Detachable Power Cord
- Rack Mounting Brackets
- Rack Mounting Support Rails
- Installation Guide
- Warranty Card
Packaged Quantity
1
Plug/Connector Type
NEMA 5-20P
Product color
Silver Gray
Product Line
Smart-UPS Ultra
Product Name
Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS
Product Type
Double Conversion Online UPS
Rack Height
1U
Receptacle Type
NEMA L5-20R
Receptacle Type
NEMA 5-20R
Sound Emission
55 dB
Typical Battery Recharge Time
1.50 Hour
Weight (Approximate)
35.05 lb
Width
17"
