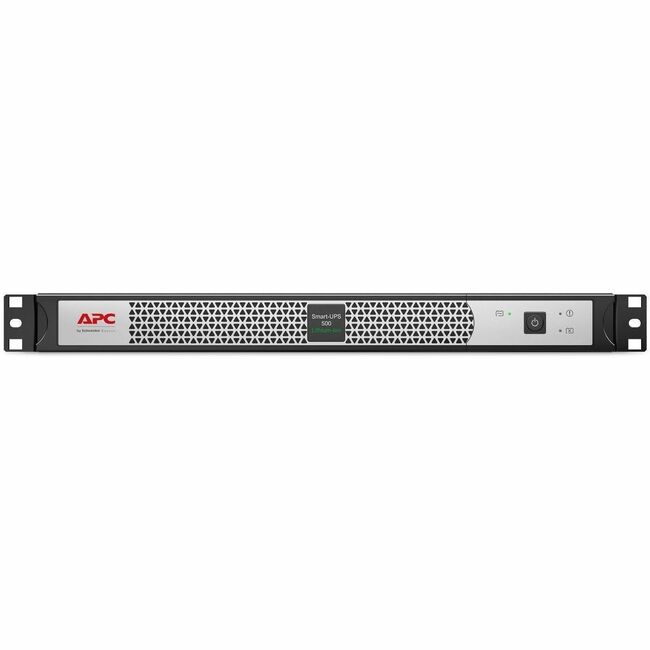

APC by Schneider Electric Smart-UPS 500VA Rack-mountable UPS
APC by Schneider Electric Smart-UPS 500VA Rack-mountable UPS - 1U Rack-mountable - 3 Hour Recharge - 2.68 Minute Stand-by - 120 V AC Input - 120 V AC Output - Sine Wave - USB - LED Display - 4 x NEMA 5-15R
| $499.50 | Retail $657.00 |
- Works adequately in situations where the supply is prone to sags and surges
- Up to 2.68 minute runtime on full load to preserve critical data from power shortage interruptions
- 3 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Lithium Ion (Li-Ion) battery chemistry to better suit your requirements with maximum productivity
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type offers maximum safety, convenience, and increased usability
- Line-interactive UPS with server application/usage to ensure maximum usability and reliable power supply
- 120 V AC input voltage for optimal performance with maximum usability
- 120 V AC output voltage for optimal performance with maximum feasibility
- Rack-mountable line-interactive ups allows easy and convenient usage without any hassle
By:
APC by Schneider Electric
Manufacturer:
Schneider Electric Sa
Product ID:
158882
Item:
SCL500RM1U
UPC Code:
731304433040
Our Part #
39121011
Condition
New
$499.50EA
$657.00
$657.00
Availability
Only 26 Left In Stock
Product description
APC by Schneider Electric Smart-UPS 500VA Rack-mountable UPS - 1U Rack-mountable - 3 Hour Recharge - 2.68 Minute Stand-by - 120 V AC Input - 120 V AC Output - Sine Wave - USB - LED Display - 4 x NEMA 5-15R
1U Rack-mountable - 3 Hour Recharge - 2.68 Minute Stand-by - 120 V AC Input - 120 V AC Output - Sine Wave - USB - LED Display - 4 x NEMA 5-15R
Specifications
Battery Energy
108 kJ
Load Capacity (VA)
500 VA
Load Capacity (W)
400 W
Maximum Operating Elevation
6561 ft
Maximum Storage Elevation
49212 ft
Output Frequency
60 Hz
Receptacle Detail
4 x NEMA 5-15R
Sound Emission (A-Weighted)
45 dB(A)
Storage Relative Humidity
10% - 90%
Storage Temperature
5°F (-15°C) - 113°F (45°C)
UPC Alternates
731304433040
Waveform Type
Sine Wave
Alarm
On Battery
Alarm
Low Battery
Alarm
Configurable Delay
Application/Usage
Critical System
Application/Usage
Router
Application/Usage
Hub
Application/Usage
Switch
Application/Usage
POS
Application/Usage
Server
Application/Usage
Network Device
Application/Usage
IT
Application/Usage
Business
Backup/Run Time (Full Load)
2.68 Minute
Backup/Run Time (Half Load)
6.33 Minute
Battery Chemistry
Lithium Ion (Li-Ion)
Battery life
10 Year
Brand Name
APC by Schneider Electric
Depth
9.1"
Display
LED
Environmental Certification
EU RoHS
Environmental Certification
RoHS
Environmental Certification
Green Premium
Environmental Certification
China RoHS
Environmental Certification
WEEE
Environmental Certification
REACH
Environmentally Friendly
Yes
Form factor
Rack-mountable
Height
1.7"
Input frequency
63 Hz
Input voltage
120 V AC
Input Voltage Range
92 V AC - 139 V AC
Limited Warranty
5 Year
Load Capacity
500 VA/400 W
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SCL500RM1U
Manufacturer Website Address
http://www.schneider-electric.com
Marketing Information
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA5-15R outlets. It provides surge protection against lightning strikes power sags brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Maximum Operating Temperature
104°F (40°C)
Package Contents
- Smart-UPS 500VA Rack-mountable UPS
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Support Rails
- USB Cable
Packaged Quantity
1
Plug/Connector Type
NEMA 5-15P
Product color
Silver
Product color
Black
Product Line
Smart-UPS
Product Name
Smart-UPS 500VA Rack-mountable UPS
Product Type
Line-interactive UPS
Rack Height
1U
Receptacle Type
NEMA 5-15R
Status Indicators
LED Indicators:
- On Line
- On Battery
- Replace Battery
- Building Wiring Fault
Surge energy rating
680 J
Transfer Time
10 ms
Typical Battery Recharge Time
3 Hour
Weight (Approximate)
9.22 lb
Width
17"
