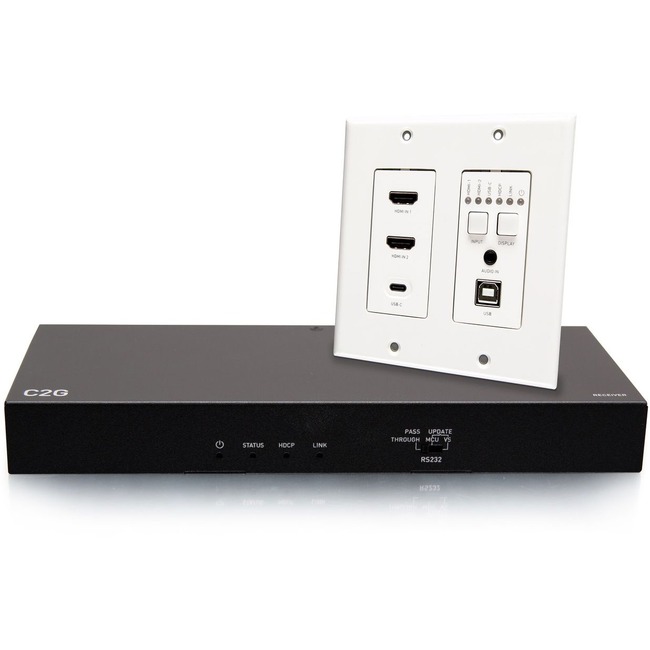

C2G HDMI HDBaseT + USB C + USB B to A over Cat Wall Plate TX + Receiver Box

The Dual 4K HDMI® HDBaseT + USB-C® 3.5mm and USB-B to A over Cat Extender Wall Plate Transmitter to Audio De-Embedding Box Receiver - 4K 60Hz allows HDMI or USB-C audio/video sources to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

This HDMI HDBaseT receiver is HDCP 2.2 compliant making sure that the connection between the source and display is secure. Automatic switching is supported connecting to the last active source. Additional analog audio output pass-through allows for audio distribution. High-speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras keyboards mice etc. With PoH (Power Over HDBaseT) support the receiver can send power to the transmitter so no additional power adapter is required allowing for greater flexibility in installations. Advanced users can control the transmitter via the RS232 port on the receiver.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Note: Extend 4K up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K up to 130 feet using a Cat6a cable. Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled is run near other high frequency signaling cables or in high EMI/RFI environments. For best performance use an HDBaseT Certified Cat6a Patch Cable.
