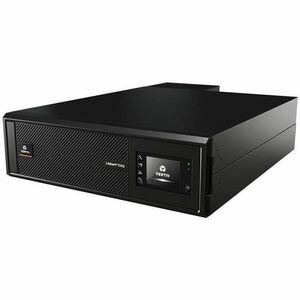

Liebert ITA2 10KVA Tower/Rack Mountable UPS
Liebert ITA2 10KVA Tower/Rack Mountable UPS - Rack/Tower - 120 V AC, 230 V AC Input - 120 V AC, 127 V AC, 208 V AC, 220 V AC Output
| $10,039.70 | Retail $10,740.00 |
- Reliable 3 phase power protection to protect critical systems
- Online Double Conversion UPS Technology
- High operating efficiency (>93% in double conversion mode, 99% in eco mode)
- Advanced battery monitoring
- 0.9 Output Power Factor rating
- Energy Star 2.0 certification
By:
Liebert
Manufacturer:
Vertiv
Product ID:
170590
Item:
ITA2-10KRT208C
UPC Code:
767041022261
Our Part #
5BA005
Condition
New
$10,039.70EA
$10,740.00
$10,740.00
Availability
Only 1 Left In Stock
Product description
Liebert ITA2 10KVA Tower/Rack Mountable UPS - Rack/Tower - 120 V AC, 230 V AC Input - 120 V AC, 127 V AC, 208 V AC, 220 V AC Output
Rack/Tower - 120 V AC, 230 V AC Input - 120 V AC, 127 V AC, 208 V AC, 220 V AC Output
Specifications
DC System Voltage
384 V DC
Overload Protection
Yes
Phase
Three Phase
Receptacle Detail
1 x Hardwired
Sound Emission (A-Weighted)
58 dB(A)
Storage Temperature
-40°F (-40°C) - 158°F (70°C)
UPC Alternates
767041022261
Waveform Type
Pure Sine Wave
Additional Information
- Product Shipping Length: 33.1"
- Product Shipping Width: 25.3 "
- Product Shipping Height: 13.8 "
- Product Shipping Weight: 66 lbs
- Package Type: Corugated ISTA 1A certified
- Protection Type: Transient Overload EMI / RFI Under Voltage AC Surge Harmonics Brownout Over Temperature Lightning Short Circuit Output Over Voltage Output Over Current AC Noise No Load
- Maximum Current: Input Current 37A
- Maximum Current: Output Current 28A
- Surge Energy Rating 385V
- Management: Network Management SNMP Modbus TCP BacNet IP External Environmental Sensors
- Overload Protection: Electronic & External Circuit Breaker
- Bypass Switch: Automatic Internal Standard External Maintenance Bypass Optional
- Parallel Port: Yes
- Modem (RJ-11): No
- Network (RJ-45): Yes
- Number of Slots: Modular Slots 1 Expandable to 2 with Extnder Kit
- Slot Type: Modular Slots Vertiv Intellislot
- Time: Backup/Run Time (With Optional Battery):
- 21 @ FL with 2 strings
- 35 @ FL with 3 strings
- 49 @ FL with 4 strings
- Maximum Operating Temperature 32-104 degF (0-40 degC) no derating; 105-122 degF (40-50 degC) 80% automatic derating
- Body Color: Color Black-Grey (RAL 7021)
- For Country/Region Americas and any other 60 Hz country 208/120V or 220/127V
- System Requirements: System Requirements 208/120 VAC (or 220/127 VAC) 3 Phase 4W+G Wye source
- Certifications & Standards:
- UL/cUL listed to UL 1778 5th Ed
- CSA 22.2 No. 107.3
- FCC Part 15 Class A
- ANSI C62.41
- Cat. A Level 3
- IEC 62040-1
- IEC6240-3
Application/Usage
Network Workstation
Application/Usage
Banking
Application/Usage
Government
Application/Usage
Computer
Application/Usage
Server
Application/Usage
Network Closet
Application/Usage
Industrial
Application/Usage
Large Network Peripheral
Application/Usage
VoIP Device
Application/Usage
Healthcare
Application/Usage
Medical Equipment
Application/Usage
Datacenter
Application/Usage
VoIP
Backup/Run Time (Full Load)
8 Minute
Backup/Run Time (Half Load)
21 Minute
Battery Characteristics
Sealed/Maintenance-free/User Replaceable/Hot-swapable
Battery Chemistry
Lead Acid
Brand Name
Liebert
Country of origin
China
Depth
19.7"
Environmental Certification
REACH
Environmental Certification
RoHS 2
Environmental Certification
WEEE
Form factor
Rack/Tower
Height
5.1"
Input frequency
70 Hz
Input voltage
230 V AC
Input voltage
120 V AC
Input Voltage Range
166 V AC - 249 V AC
Limited Warranty
2 Year
Load Capacity
10000 VA
Manufacturer
Vertiv
Manufacturer Part Number
ITA2-10KRT208C
Manufacturer Website Address
http://www.vertiv.com/
Marketing Information
Vertiv's Liebert® ITA2™ is a compact rack-tower convertible uninterruptible power system (UPS) that employs true on-line double-conversion technology that continuously conditions and regulates its output voltage. The Liebert ITA2 is designed to supply microcomputers servers networking and other sensitive equipment with clean sine wave input power. The Liebert ITA2 UPS offers economical efficient and reliable three-phase power for critical loads up to 8kVA. Use in a rackmount (3U) or tower configuration. This intelligent UPS has scalable battery runtimes output distribution options a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate.
The Liebert ITA2 UPS has a 2-year warranty.
Maximum Operating Temperature
122°F (50°C)
Network Management
SNMP Manageable
Output voltage
220 V AC
Output voltage
208 V AC
Output voltage
127 V AC
Package Contents
- ITA2 10KVA Tower/Rack Mountable UPS
- USB Cable
- Rack Handles & Associated Hardware
- Rack Rail Kit & Associated Hardware
- Wiring Boxes With Knockouts Installed On Back Of Module
- 4 x Support Base Ends For Tower Mount Application
- 2 x Support Base Extension
- Quick Start Guide (Install & Start-up)/Safety Instruction Booklet
Packaged Quantity
1 Pack
Plug/Connector Type
Hardwired
Product Name
ITA2 10KVA Tower/Rack Mountable UPS
Product Series
ITA2
Product Type
Dual Conversion Online UPS
Product Type
Double Conversion Online UPS
Rack Height
3U
Sound Emission
58 dB(A)
Surge energy rating
80 J
TAA Compliant
No
Thermal Dissipation
749.38 W
Transfer Time
0 ns
Typical Battery Recharge Time
5 Hour
Weight (Approximate)
50.70 lb
Width
16.9"
