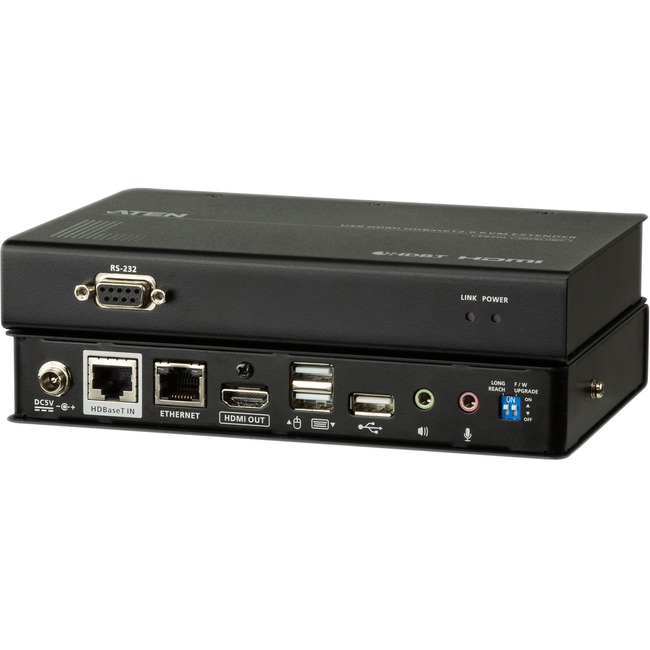

ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant
ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant - 492.13 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 4 x Network (RJ-45) - 4 x USB - 2 x HDMI - 5 V DC Input Voltage - Rack-mountable
| $848.83 | Retail $1,114.00 |
- Supports HDBaseT™ 2.0 technology
- Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Status detection and LED indication for HDBaseT™ signal transmission on remote unit
- EDID Buffer for smooth power-up and the highest quality display
- HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
- Long distance with superior video quality
- HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
- HDBaseT™ Long-Reach mode up to 1080P @ 150 m
- Long Reach mode switch - switches between HDBaseT™ Standard and Long Reach modes in a snap
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
170607
Item:
CE820
UPC Code:
672792008245
Our Part #
3DC920
Condition
New
$848.83EA
$1,114.00
$1,114.00
Availability
Only 2 Left In Stock
Product description
ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant - 492.13 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 4 x Network (RJ-45) - 4 x USB - 2 x HDMI - 5 V DC Input Voltage - Rack-mountable
492.13 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 4 x Network (RJ-45) - 4 x USB - 2 x HDMI - 5 V DC Input Voltage - Rack-mountable
Specifications
Number of HDMI Ports
2
Receiver Weight (Approximate)
1.39 lb
Transmitter Depth
7.17"
Transmitter Height
1.13"
Transmitter Weight (Approximate)
1.43 lb
Transmitter Width
4.80"
UPC Alternates
672792008245
Brand Name
ATEN
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
WEEE
Environmental Certification
RoHS
Form factor
Rack-mountable
Graphic Mode
4K
Input voltage
5 V DC
Limited Warranty
3 Year
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
CE820
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video stereo audio USB Ethernet and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals the CE820 is ideal for applications where convenient remote access is required - such as transportation control centers medical facilities industrial warehouses and extended workstations.
Maximum Operating Distance
492.13 ft
Maximum Video Resolution
4096 x 2160
Microphone
Yes
Number of Network (RJ-45) Ports
4
Package Contents
- 1 x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
- 1 x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
- 1 x HDMI KVM Cable Set (HDMI USB Audio; 1.8m/6ft)
- 2 x Power Adapters
- 2 x Mounting Kits
- 8 x Foot Pads
- 1 x User Instructions
Product Name
USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)
Product Type
KVM Console/Extender
