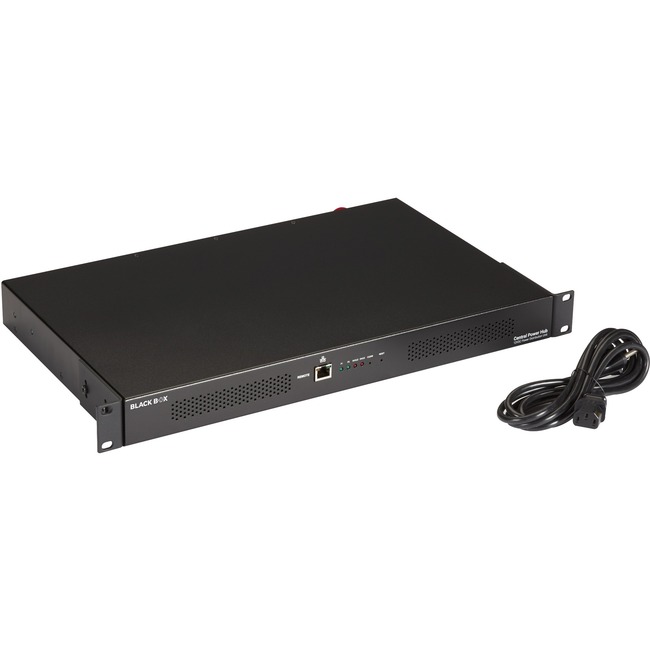

Black Box KVM Central Power Hub - 16-Port, 30W
Black Box KVM Central Power Hub - 16-Port, 30W - Hot-swappable - IEC 60320 - 16 x AC Power - 120 V AC, 230 V AC - Network (RJ-45) - 1U - Rack
| $2,550.37 |
- Power distribution unit (PDU) for use with Black Box high-performance KVM products.
- Central power feed to 5V or 12V DC Black Box KVM switches and extenders with up to 20 watts per port.
- A more efficient and reliable way to ensure uptime than having extra power adapters proliferate as your installation grows.
- Secure WebUI for configuration and monitoring of system power status.
- Highest resilience when equipped with second 600khrs power supply.
- Clean professional installation with 8 or 16 lockable 3-pin DC connectors in only 1 RU.
- Available with 8 or 16 independently controllable 12V outputs.
- Use 12V to 5V converter cables to connect KVM units with 5VDC power feeds, or 3-pin lockable cables for KVM units with 12VDC power feeds.
- 3rd-party API control support.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
170816
Item:
ACR1000-CPH16R-R2
Our Part #
39121017
Condition
New
$2,550.37EA
Availability
Only 5 Left In Stock
Product description
Black Box KVM Central Power Hub - 16-Port, 30W - Hot-swappable - IEC 60320 - 16 x AC Power - 120 V AC, 230 V AC - Network (RJ-45) - 1U - Rack
Hot-swappable - IEC 60320 - 16 x AC Power - 120 V AC, 230 V AC - Network (RJ-45) - 1U - Rack
Specifications
PDU Type
Hot-swappable
Plug/Connector Detail
2 x IEC 60320
Power Rating (Watt)
30 W
Power Rating (Watt)
460 W
Receptacle Detail
16 x AC Power
Brand Name
Black Box
Depth
10.8"
Environmental Certification
RoHS 2
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Rack
Height
1.7"
Input current
1.60 A
Input voltage
230 V AC
Input voltage
120 V AC
Manufacturer
Black Box Corporation
Manufacturer Part Number
ACR1000-CPH16R-R2
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Manage power in one place.
These hubs provide up to eight or sixteen power outputs in one place. The power distribution units feature a single power supply with an optional secondary to deliver full power redundancy. The Central Power Hub (CPH) supports 5VDC or 12VDC devices in a 1U chassis for convenient rack mounting. It provides power to grow your installation on demand.
The power output ports are lockable preventing accidental disconnects. Each output is limited to 20 Watts at 12V.
Hot swappable power modules.
The chassis can supply two 460W power modules slot into the back of the Power Hub chassis. Conversion from the mains AC supply to DC voltage occurs within these modules. In situations where redundancy is required the Power Hub will equally balance a normal load between them. In the case of one module ceasing operation the Hub automatically transfers the full load to the remaining module which can easily handle the needs of up to 8 respectively 16 ports.
Protection.
Power integrity safety and management are at the heart of the Central Power Hub system. At start-up the CPH automatically checks the validity of the power modules. It then enables each power output in sequence so they are do not overload the modules by starting simultaneously. As the system provides steady power to your installation protections are in place to ensure against excess demand by anyone connected device.
Remote management.
The Central Power Hub can be controlled and monitored by a web interface. Temperature fan speeds and current measurements are viewable. Each output can be individually controlled.
- Support for dual power supplies for redundancy unit comes with one power supply.
- Supports eight or sixteen 5VDC or 12VDC devices in a 1U chassis for convenient rack mounting.
Output voltage
12 V DC
Package Contents
- KVM Central Power Hub - 16-Port 30W
- 1 x Power Supply
- 1 x Power Cord
- 1 x Safety Insert Envelope
Package Contents
- Central Power Hub
- 1x Power Supply
- 1 x Power Cord
- 1 x Safety Insert Envelope
Plug/Connector Type
IEC 60320
Product Name
Central Power Hub
Product Name
KVM Central Power Hub - 16-Port 30W
Product Type
PDU
Rack Height
1U
Receptacle Type
AC Power
Weight (Approximate)
9.92 lb
Width
17.1"
