Tripp Lite Medical Ethernet Isolator - RJ45, Network Isolator For Patient Care Vicinity, Cat6 Coupler IEC 60601-1

Features

Isolate Medical Equipment on an Ethernet Network to Enhance Patient Safety

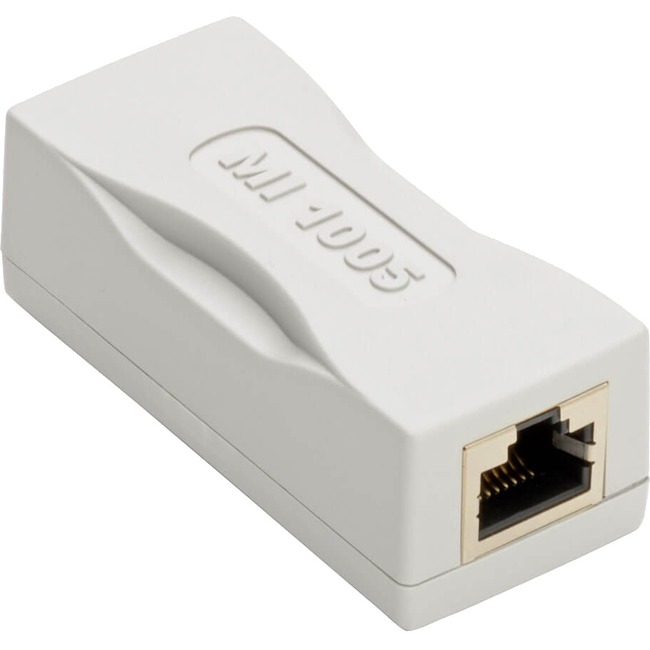

Tripp Lite's N234-MI-1005 medical Ethernet isolator protects staff patients and medical technology equipment in patient care vicinities from dangerous leakage currents that can travel through a copper-based Ethernet network. It effectively isolates medical equipment to protect patients yet allows data to flow at Gigabit Ethernet speeds.

Comply with IEC 60601-1 for Use in the Patient Care Vicinity

The N234-MI-1005 complies with IEC 60601-1 and EMC/IEC 60601-1-2 safety standards for a network connection between a medical device and an Ethernet network or non-medical device (PC or laptop). Because it meets IEC 60601-1 standards this medical network isolator can be used in patient care vicinities. For example you can use this 60601-1 network isolator in the connection between a clinic's network and the PC of a prolonged EEG system. (Note: You can only connect network components that comply with IEEE 802.3 or IEEE 802.3ab. You cannot connect telecommunication appliances voltage supplies or similar devices.)

Install In-Line on an Ethernet Network

This Ethernet network isolator has two RJ45 ports and acts as a coupler joining two tested and approved Cat6 cables to complete the connection between compatible medical equipment and a computer or data network. Because the cables are removable you can replace a failed cable without replacing the isolator. Completely plug and play this RJ45 isolator does not require software drivers or a power supply.

Comply with TAA Requirements

The N234-MI-1005 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

One-Year Warranty

The N234-MI-1005 is backed by a one-year warranty ensuring reliability and performance.

Typical Applications

• Isolate medical equipment connected to an Ethernet network to protect patients in patient care vicinities
• Connect an EMG measuring station with an analysis computer in a doctor's consulting room
• Connect the PC of a prolonged EEG system to a clinic's network

System Requirements

• Network components that comply with IEEE 802.3 or IEEE 802.3ab (10/100/1000BASE-T twisted-pair)
• Cat6 network cable

Package Includes

• N234-MI-1005 Medical Ethernet Isolator - For Patient Care Vicinity
• Owner's manual

• Medical Ethernet Isolator - RJ45 For Patient Care Vicinity IEC 60601-1
• Owner's manual
