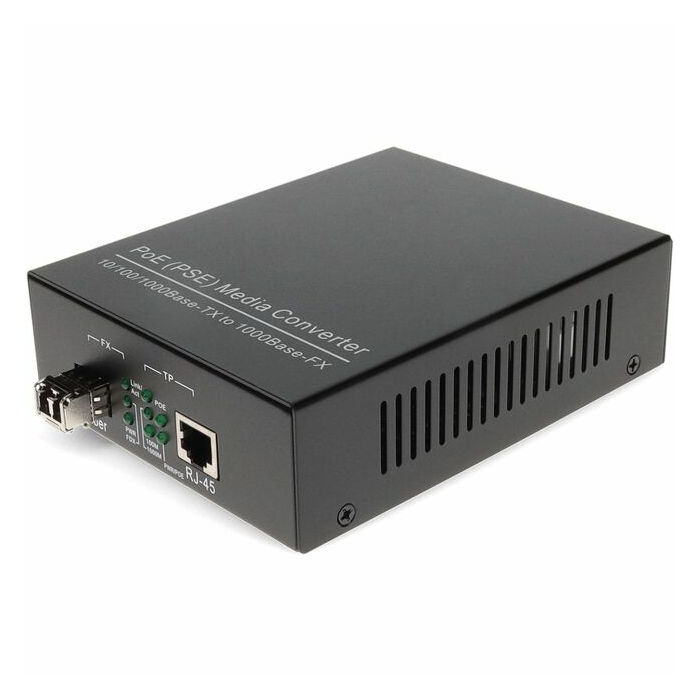

AddOn Transceiver/Media Converter
AddOn Transceiver/Media Converter - 1 x Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-SX
| $226.68 | Retail $358.00 |
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
Manufacturer:
AddOn
Product ID:
171080
Item:
ADD-GMC-SX-LC-POE
UPC Code:
195285030726
Our Part #
8NT322
Condition
New
$226.68EA
$358.00
$358.00
Availability
Only 17 Left In Stock
You may be also interested
Product description
AddOn Transceiver/Media Converter - 1 x Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-SX
1 x Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-SX
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Wavelength
850 nm
Maximum Distance Supported
1804.46 ft
PoE Port Type
PSE
UPC Alternates
195285030726
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Limited Warranty
3 Year
Manufacturer
AddOn
Manufacturer Part Number
ADD-GMC-SX-LC-POE
Manufacturer Website Address
http://www.addoncomputer.com
Marketing Information
This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC) via a 850nm multi-mode fiber (MMF) LC connector which allows distance reach up to 550m. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port the converter will automatically disable the TX signal to the other media port thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
1000Base-SX
Network Technology
10/100/1000Base-TX
Package Contents
- Transceiver/Media Converter
- 1 x Transceiver
Packaged Quantity
1
Power source
Power Supply
Product Type
Transceiver/Media Converter
TAA Compliant
No
Total Number of Ports
2
