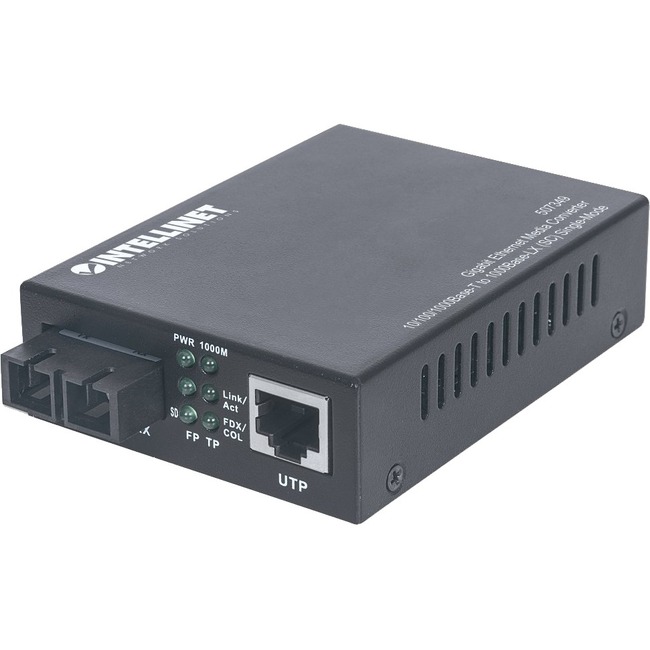

Intellinet Gigabit Ethernet Single Mode Media Converter, 10/100/1000Base-T to 1000Base-Lx (SC) Single-Mode, 20km (With 2 Pin Euro Power Adapter)
Intellinet Gigabit Ethernet Single Mode Media Converter, 10/100/1000Base-T to 1000Base-Lx (SC) Single-Mode, 20km (With 2 Pin Euro Power Adapter) - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 1000Base-LX, 10/100/1000Base-T - Desktop, Wall Mountable, Rack-mountable
| $102.34 | Retail $160.99 |
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 1000Base-LX technology get up to 1000Mbps data transfer rate over twisted pair cable
- The Desktop provides convenient installation
By:
Intellinet
Manufacturer:
Intellinet Network Solutions
Product ID:
172912
Item:
507349
UPC Code:
766623507349
Our Part #
43201553
Condition
New
$102.34EA
$160.99
$160.99
Availability
Only 142 Left In Stock
Product description
Intellinet Gigabit Ethernet Single Mode Media Converter, 10/100/1000Base-T to 1000Base-Lx (SC) Single-Mode, 20km (With 2 Pin Euro Power Adapter) - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 1000Base-LX, 10/100/1000Base-T - Desktop, Wall Mountable, Rack-mountable
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 1000Base-LX, 10/100/1000Base-T - Desktop, Wall Mountable, Rack-mountable
Specifications
Fiber Mode Supported
Single-mode
Fiber Optic Cable Standard
8.7/125 µm
Fiber Optic Cable Standard
8.3/125 µm
Fiber Optic Cable Standard
10/125 µm
Fiber Optic Cable Standard
8/125 µm
Fiber Optic Wavelength
1310 nm
Maximum Distance Supported
12.43 Mile
Network (RJ-45)
Yes
SC Port Type
Duplex
UPC Alternates
766623507349
Brand Name
Intellinet
Country of origin
China
Ethernet Technology
Gigabit Ethernet
Form factor
Rack-mountable
Form factor
Desktop
Form factor
Wall Mountable
Height
1"
Limited Warranty
3 Year
Manufacturer
Intellinet Network Solutions
Manufacturer Part Number
507349
Manufacturer Website Address
http://www.intellinet-network.com
Marketing Information
The Intellinet Network Solutions Gigabit Ethernet Single Mode Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity.
Expands the Size of an Existing Network
Provides fibre connectivity to Ethernet segments allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.
Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location and up to 14 media converters can be simultaneously installed into a 19 rack-mountable chassis (model 507356).
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10/100/1000Base-T
Network Technology
1000Base-LX
Number of Network (RJ-45) Ports
1
Power consumption
5 W
Power source
Power Adapter
Product Name
Gigabit Ethernet Single Mode Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
6.35 oz
Width
2.8"
