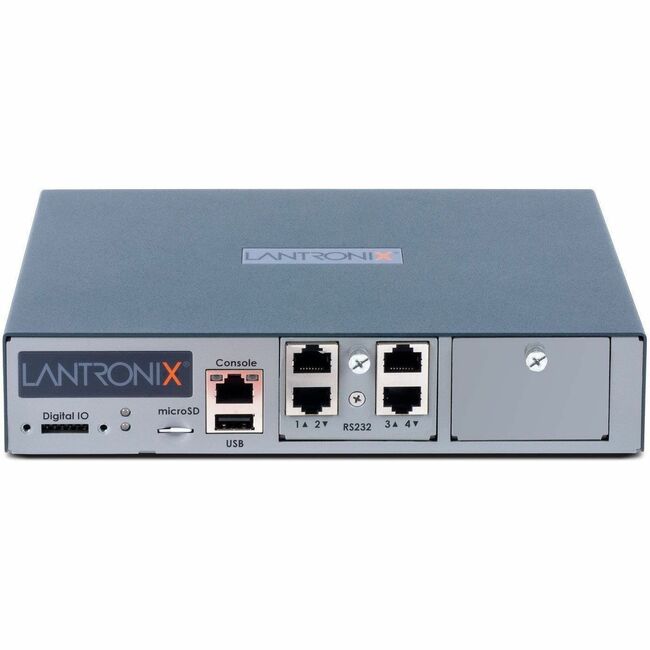

Lantronix EMG8500 Edge Management Gateway

• Enterprise-grade security
• Secure Sockets Layer(TLS v1 v1.1v1.2)
• Packet filtering (firewall)
• Per port user permissions
• Configurable user/group rights
• Remote authentication: LDAP/AD RADIUS Kerberos TACACS+ NIS
• Local username/password
• NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197
• FIPS 140-2 compliant cryptography (Certificate #1878)

Serial Device Port Access:

• Software programmable reversible pinouts on device ports
• Telnet/SSH to EMG command line interface
• Telnet/SSH/RAW-TCP direct to an IP address
• HTML5 support for Java-free web terminal SSH access to console ports
• Multiple Telnet/SSH sessions
• Simultaneous user access to the same console port
• Customizable multi-level user menus
• RJ45 and/or USB device ports
• Automatic port-initiated connections to a network host or outbound SSH connections to neighboring equipment
• Enable CLI terminal logins from any device port
• SD card and USB

Data Capture and Notification:

• Port buffering-256 KB per port
• Port logging to local files syslog USB
• thumb drive SD card and NFS share
• System audit and port logging
• Event notification via email SNMP or Syslog entry
• Character string recognition

Management:

• Quick setup and configuration web interface (TLS)
• CLI setup script
• CLI (Telnet SSH WebTerminal or direct console port access)
• SNMP (MIB II) -v1 v2 v3 compatible custom MIBs
• RPM (remote power management) feature to control and monitor industry leading PDU & UPS devices
• Active user list display port monitoring and timeout
• Diagnostics and port status counters
• Performance monitoring utility
• Packet generation utility
• Network trace utility
• Digital I/O inputs and special integration with Sensorsoft environmental sensors
• Local subnet search for other Lantronix console manager solutions
• Maximum 15 users per device port

Additional Protocols Supported:

• DHCP and BOOTP for dynamic IP address assignment
• NTP for time synchronization
• FTP TFTP SFTP SCP client for file transfers
• DNS IP address name resolution
• SSH TLS SSL Telnet and TCP for connections in/out of every device port UDP PPP with PAP/CHAP NFS and CIFS for data storage
• StrongSwan IPsec VPN client
• RIP and RIPv2
• IPv6 Addressing supported

Interfaces:

• RS232 Serial 4-Port
• Front Panel: USB Host port microSD/SDHC slot RS-232 console
• Back Panel: Dual Gb Ethernet or Dual Gb fiber SFP ports
• Back Panel: Two (2) customer replaceable connectivity module slots for LTE/4G cellular Wi-Fi or dial up modem out-of-band options

• 1 GB Internal NAND Flash
• 1 GB Internal DRAM
• Internal Storage: 128GB Flash (optional)
• External Storage: microSD slot for up to 128 GB Flash

Improve Business Continuity

The EMG™ Edge Management Gateway is fully integrated into our range of out-of-band scalable solutions. With its modular design the EMG™ enables users to place the product where it is most effective alongside critical infrastructure in data centers branch offices and remote sites. This solution delivers remote troubleshooting resilience and remediation to improve uptime and efficiency of networks to keep businesses running smoothly.

Quick Recovery from Downtimes

An integrated automatic fail-over/fail-back mechanism allows users to connect to their network equipment even when the primary network connection is congested or unresponsive. The EMG can fail-over to a cellular 4G/LTE connection where all global carriers are supported with services such as Private APN VPN access public and private IP addressing.Network Performance Monitoring with support of IPSLA simulation traffic can ensure continuous and reliable network communication and help mitigate Lights Out scenarios.

Cost-Effective Secure Connectivity - Anytime Anywhere

The EMG provides easy and secure administration and management of IT equipment from anywhere at any time. Users can access the EMG device ports via Telnet/SSH or a web browser-based console client without any proprietary software. Any IT asset that provides console or serial port management services can be managed remotely and locally. The EMG includes firewall features to reject or block unauthorized connection attempts. The EMG also has NIST-certified AES encryption.

Easy Centralized Management - ConsoleFlow™

ConsoleFlow™ is Lantronix's on-premise and cloud-based management platform for all deployed Lantronix edge management gateways and connected IT equipment. It offers a single pane of glass for centralized management and automated monitoring with real-time notifications. Mobile access from any iOS or Android platform provides secure access to your IT equipment.
