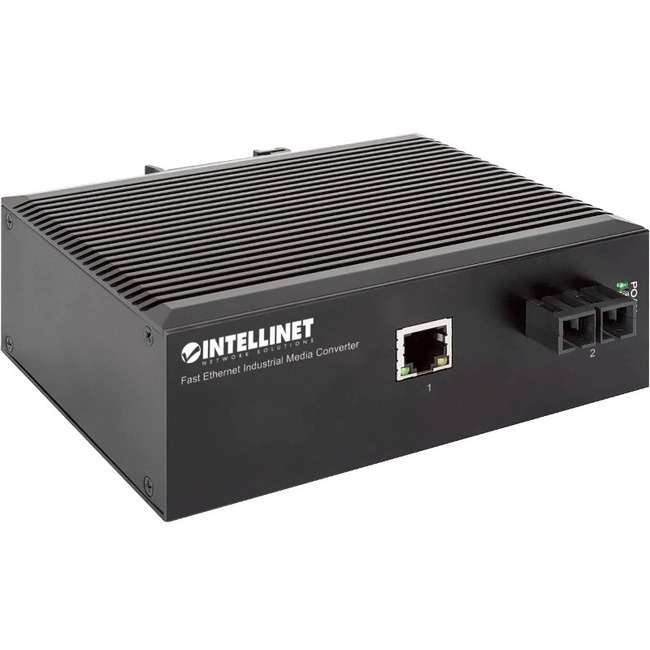

Intellinet Industrial Fast Ethernet Media Converter
Intellinet Industrial Fast Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet - 100Base-TX, 100Base-FX - 12.43 Mile - DC - DIN Rail Mountable
| $140.29 | Retail $156.99 |
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- With 100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- The DIN Rail Mountable provides convenient installation
By:
Intellinet
Manufacturer:
Intellinet Network Solutions
Product ID:
173467
Item:
508322
UPC Code:
766623508322
Our Part #
43201553
Condition
New
$140.29EA
$156.99
$156.99
Availability
Only 13 Left In Stock
Product description
Intellinet Industrial Fast Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet - 100Base-TX, 100Base-FX - 12.43 Mile - DC - DIN Rail Mountable
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet - 100Base-TX, 100Base-FX - 12.43 Mile - DC - DIN Rail Mountable
Specifications
Fiber Mode Supported
Single-mode
Fiber Optic Cable Standard
8.7/125 µm
Fiber Optic Cable Standard
10/125 µm
Fiber Optic Cable Standard
8.3/125 µm
Fiber Optic Cable Standard
8/125 µm
Fiber Optic Wavelength
1310 nm
Maximum Distance Supported
12.43 Mile
Network (RJ-45)
Yes
SC Port Type
Duplex
UPC Alternates
766623508322
Brand Name
Intellinet
Depth
4.1"
Ethernet Technology
Fast Ethernet
Form factor
DIN Rail Mountable
Height
1.9"
Manufacturer
Intellinet Network Solutions
Manufacturer Part Number
508322
Manufacturer Website Address
http://www.intellinet-network.com
Marketing Information
Industrial Media Converter - expand your existing network in harsh industrial environments
The Intellinet Network Solutions Fast Ethernet Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before only now it can support both copper and fiber media. It provides fiber connectivity to Ethernet segments allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Equipped even for challenging environment conditions
With its rugged protective IP40-rated metal housing the converter operates reliably even in extreme temperatures from -40 - 75? (-40 - 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features this converter is ideal for IoT applications in Industry 4.0 and more.
The Intellinet Network Solutions Fast Ethernet Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before only now it can support both copper and fiber media. It provides fiber connectivity to Ethernet segments allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Equipped even for challenging environment conditions
With its rugged protective IP40-rated metal housing the converter operates reliably even in extreme temperatures from -40 - 75? (-40 - 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features this converter is ideal for IoT applications in Industry 4.0 and more.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
100Base-TX
Network Technology
100Base-FX
Number of Network (RJ-45) Ports
1
Plug/Connector Type
Terminal Block
Power source
DC
Product Name
Industrial Fast Ethernet Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
1.32 lb
Width
5.6"
