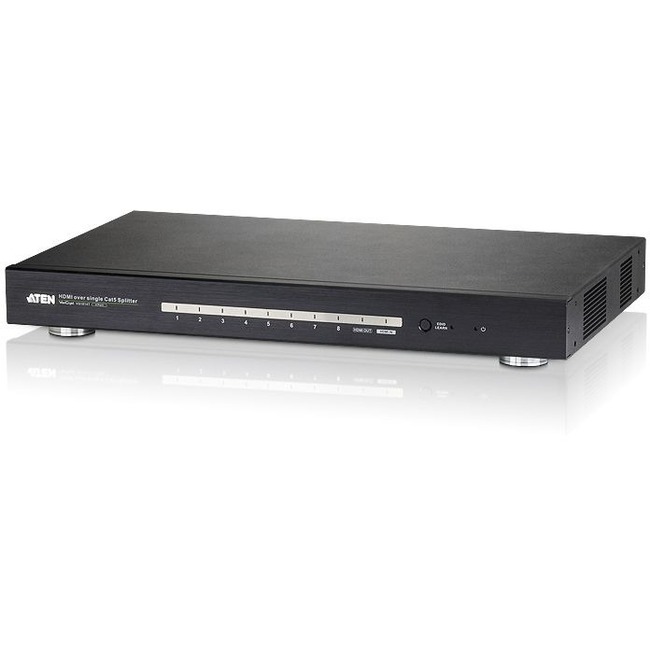

VanCryst 8-Port HDMI Over Single Cat 5 Splitter-TAA Compliant
VanCryst 8-Port HDMI Over Single Cat 5 Splitter-TAA Compliant - 1 Input Device - 8 Output Device - 328.08 ft Range - 8 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Rack-mountable
| $2,022.90 | Retail $3,229.00 |
- One HDMI input to 8 HDMI outputs via a Cat 5e cable
- Offers local HDMI output
- Extends displays up to 100 m
- Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
- Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
- HDMI (3D, Deep color, 4kx2k); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio
- Consumer Electronics Control (CEC) support
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
By:
VanCryst
Manufacturer:
ATEN Technology, Inc
Product ID:
173730
Item:
VS1818T
UPC Code:
672792005398
Our Part #
YB3714
Condition
New
$2,022.90EA
$3,229.00
$3,229.00
Availability
Only 8 Left In Stock
Product description
VanCryst 8-Port HDMI Over Single Cat 5 Splitter-TAA Compliant - 1 Input Device - 8 Output Device - 328.08 ft Range - 8 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Rack-mountable
1 Input Device - 8 Output Device - 328.08 ft Range - 8 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Rack-mountable
Specifications
Product Material
Metal
Receiver Depth
17.21"
Receiver Height
1.73"
Receiver Weight (Approximate)
7.89 lb
Receiver Width
10.28"
UPC Alternates
672792005398 700315914343
Brand Name
VanCryst
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Graphics Modes
4K
Input voltage
230 V AC
Input voltage
120 V AC
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VS1818T
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The VS1818T HDMI over single Cat 5 Splitter provides a fast and efficient way of switching high definition video from one input source to 8 displays. Incorporating suggested HDBaseT receivers* the VS1818T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations located up to 100m away from the source.
* Suggested Compatible Receiver Units: VE812R HDMI Over Single Cat 5 Receiver
The solution implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 6 cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.
The VS1818T solution is perfect for a wide range of applications:
- In-store or tradeshow digital signage
- Information broadcasts at public locations (i.e. news stations airline and train schedule and arrival/departure details)
- Sporting events
- Theater and lecture overview rooms
- Classroom and company training facilities
Maximum Operating Distance
328.08 ft
Maximum Video Resolution
4096 x 2160
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
8
Package Contents
- VS1818T 8-Port HDMI Over Single Cat 5 Splitter
- 1 x Power Cord
- 1 x Mounting Kit
- 1 x User Instructions
Product color
Black
Product Name
8-Port HDMI Over Single Cat 5 Splitter
Product Type
Video Extender Receiver
