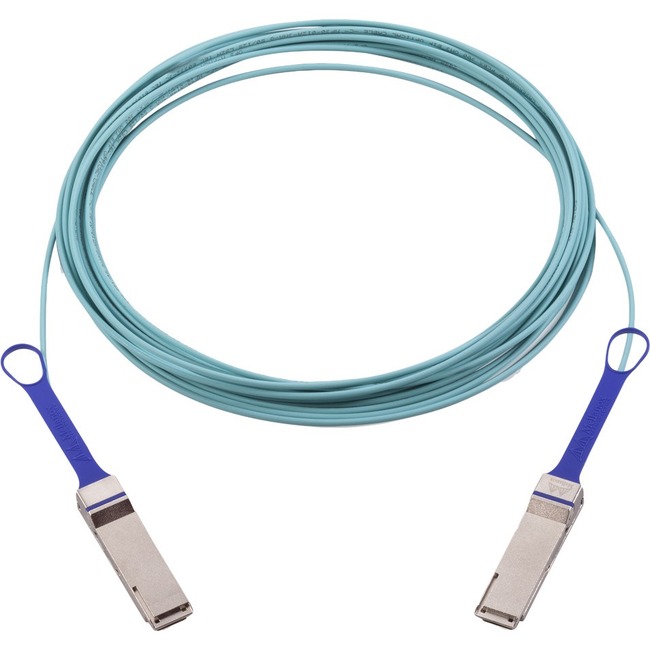

Mellanox AOC Cable Ethernet 100GbE QSFP 5m
Mellanox AOC Cable Ethernet 100GbE QSFP 5m - 16.40 ft Fiber Optic Network Cable for Network Device, Transmitter, Receiver - First End: 1 x SFF-8665 QSFP28 Network - Second End: 1 x SFF-8665 QSFP28 Network - 100 Gbit/s - LSZH
| $453.11 | Retail $726.00 |
- Experience a simpler way to connect devices with the entire business network
- Features Fiber Optic cable type to better accommodate your precise requirements with maximum productivity
- AOC Technology feature for your convenience and ease of usage
- Fully compatible with network devices
By:
Mellanox
Manufacturer:
NVIDIA Corporation
Product ID:
173741
Item:
MFA1A00-C005
Our Part #
YP3897
Condition
New
$453.11EA
$726.00
$726.00
Availability
Only 5 Left In Stock
Product description
Mellanox AOC Cable Ethernet 100GbE QSFP 5m - 16.40 ft Fiber Optic Network Cable for Network Device, Transmitter, Receiver - First End: 1 x SFF-8665 QSFP28 Network - Second End: 1 x SFF-8665 QSFP28 Network - 100 Gbit/s - LSZH
16.40 ft Fiber Optic Network Cable for Network Device, Transmitter, Receiver - First End: 1 x SFF-8665 QSFP28 Network - Second End: 1 x SFF-8665 QSFP28 Network - 100 Gbit/s - LSZH
Specifications
Connector on First End Details
1 x SFF-8665 QSFP28 Network
Connector Type on First End
SFF-8665 QSFP28 Network
Brand Name
Mellanox
Cable length
16.40 ft
Cable type
Fiber Optic
Data transfer rate
100 Gbit/s
Device Supported
Network Device
Device Supported
Transmitter
Device Supported
Receiver
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
AOC Technology
Fiber Optic Mode
Multi-mode
Jacket Type
LSZH
Manufacturer
NVIDIA Corporation
Manufacturer Part Number
MFA1A00-C005
Manufacturer Website Address
http://www.nvidia.com
Marketing Information
NVIDIA MFA1A00-C005 Active Optical Cable Ethernet 100GbE QSFP LSZH 5m100Gb/s QSFP28 MMF Active Optical Cables
NVIDIA Networking QSFP28 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cables are designed for use in 100Gb/s Ethernet systems.
MFA1A00-Cxxx AOC offers high port density and configurability and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable it is easy to install and replace.
MFA1A00-Cxxx has a standard SFF-8665 compliant QSFP28 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end each operating at data rates of up to 25Gb/s.
MFA1A00-Cxxx offers selectable retiming per lane for both its optical transmitters and receivers for the 25Gbp/s rates but the AOC also supports lower bit rates without retiming. The transmitters have programmable input equalizers and input squelch function while the receivers have programmable output amplitude and pre-emphasis.
These unique-quality active-fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous production testing ensures the best out-of-the-box installation experience performance and durability.
Highlights
- Up to 100Gb/s data rate
- Programmable Rx output amplitude and pre-emphasis
- Programmable Tx input equalizer
- Selectable retiming
- SFF-8665 compliant QSFP28 port
- Single 3.3V power supply
- 2.2W power dissipation (typ each end with retiming)
- Low BER
- Up to 100m length
- Hot pluggable
- RoHS compliant
- SFF-8636 compliant I2C management interface
Product Name
AOC Cable Ethernet 100GbE QSFP 5m
Product Type
Network Cable
